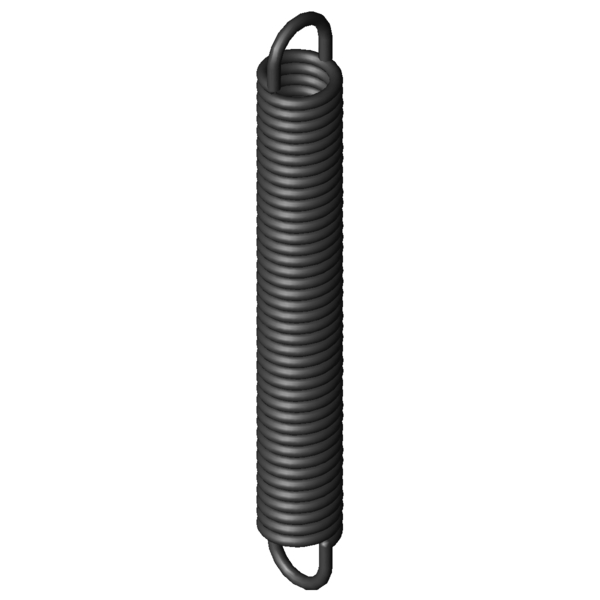

Home » Products » Extension Springs » z-323x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° Scaled prices - Extension Spring Z-323X Quantity Single price [EUR] 1 18.8000 EUR 2 14.9700 EUR 3 11.4700 EUR 7 9.9300 EUR 17 9.9300 EUR 37 9.9300 EUR 75 9.9300 EUR 125 9.9300 EUR 175 9.9300 EUR 250 9.9300 EUR 350 9.9300 EUR Extension Spring Buy Product image Extension Spring Z-323X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-323X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 308 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 263.03 mm length of unstressed spring body Ln 447.22 mm maximum spring length, inner loop to inner loop sn 139.22 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.48 mm distance of inner edge of loop from the spring body R 10.29 N/mm Spring rate F0 200 N initial tension Fntol 107.85 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 34 degree (+/-) tolerance of loop position Weight 1109.0889 g weight of one spring Price group ###AY - price group Technical drawing Extension Spring Datasheet Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° force-path-calculation Extension Spring Z-323X Inquiry formular Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° Inquiry formular Extension Spring Z-323X Similar extension springs to Extension Spring Z-323X Spring steel Ø 6.3 x 40 x 308 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-323X EN 10270-1 6.3 40 308 1632 447.22 139.22 10.29 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-221X 40 296 1.737 EN 10270-1 658.2 642.39 346.39 48.5 | 89.2 | 40.3 | 16.2 Z-220X 40 265 1.997 EN 10270-1 658.2 566.28 301.28 49.2 | 85.8 | 43.3 | 18.6 Z-219X 40 237 2.291 EN 10270-1 658.2 499.61 262.61 56.5 | 89.4 | 52.6 | 27.4 Z-252X 40 363 2.405 EN 10270-1 873.5 695.04 332.04 52.7 | 88.1 | 47.7 | 22.4 Z-251X 40 323 2.763 EN 10270-1 873.5 612.02 289.02 56.1 | 91.6 | 50.8 | 25.8 Z-250X 40 288 3.177 EN 10270-1 873.5 539.38 251.38 58.4 | 91.0 | 54.5 | 29.6 Z-249X 40 258 3.644 EN 10270-1 873.5 477.12 219.12 60.1 | 87.7 | 58.5 | 34.0 Z-288X 40 348 4.224 EN 10270-1 1134 588.13 240.13 65.3 | 91.9 | 63.7 | 40.3 Z-287X 40 310 4.856 EN 10270-1 1134 518.85 208.85 70.0 | 95.6 | 68.1 | 46.3 Z-286X 40 277 5.571 EN 10270-1 1134 459.05 182.05 72.8 | 92.4 | 73.0 | 53.1 Z-285X 40 238 6.726 EN 10270-1 1134 388.78 150.78 89.6 | 95.4 | 91.1 | 82.2 Z-258X 30 307 7.581 EN 10270-1 1134 442.12 135.12 79.8 | 84.7 | 83.3 | 71.6 Z-325X 40 390 7.801 EN 10270-1 1632 573.63 183.63 85.6 | 93.0 | 87.9 | 75.8 Z-324X 40 346 8.969 EN 10270-1 1632 505.71 159.71 92.4 | 96.3 | 93.6 | 87.2 Z-323X 40 308 10.29 EN 10270-1 1632 447.22 139.22 100.0 | 100.0 | 100.0 | 100.0 Z-322X 40 264 12.424 EN 10270-1 1632 379.3 115.3 89.8 | 95.2 | 91.4 | 82.8 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-323X Country of origin: DE, German; Extension Spring Z-323X Product image - Extension Springs Z-323X QR-Code: Extension Spring Z-323X
