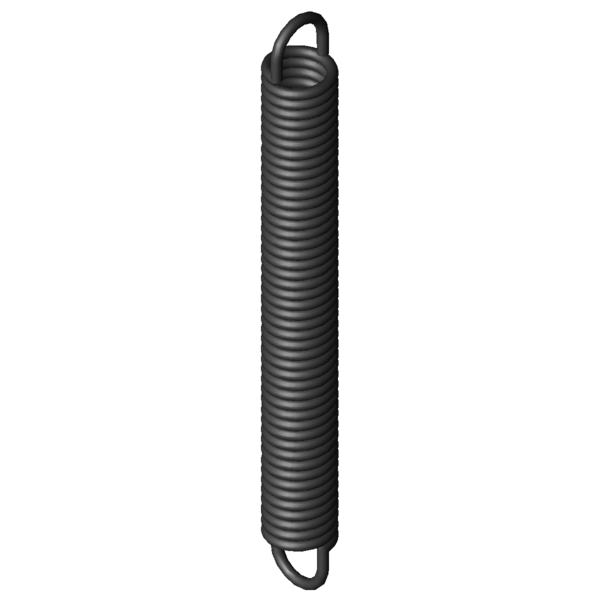

Home » Products » Extension Springs » z-324x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° Scaled prices - Extension Spring Z-324X Quantity Single price [EUR] 1 19.3600 EUR 2 15.4300 EUR 3 12.4800 EUR 7 10.6000 EUR 17 10.6000 EUR 37 10.6000 EUR 75 10.6000 EUR 125 10.6000 EUR 175 10.6000 EUR 250 10.6000 EUR 350 10.6000 EUR Extension Spring Buy Product image Extension Spring Z-324X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-324X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 346 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 300.83 mm length of unstressed spring body Ln 505.71 mm maximum spring length, inner loop to inner loop sn 159.71 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.58 mm distance of inner edge of loop from the spring body R 8.969 N/mm Spring rate F0 200 N initial tension Fntol 105.47 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 1265.6632 g weight of one spring Price group ###AZ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° force-path-calculation Extension Spring Z-324X Inquiry formular Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° Inquiry formular Extension Spring Z-324X Similar extension springs to Extension Spring Z-324X Spring steel Ø 6.3 x 40 x 346 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-324X EN 10270-1 6.3 40 346 1632 505.71 159.71 8.969 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-253X 40 403 2.129 EN 10270-1 873.5 778.05 375.05 53.1 | 88.4 | 48.1 | 22.8 Z-252X 40 363 2.405 EN 10270-1 873.5 695.04 332.04 56.0 | 91.6 | 50.8 | 25.7 Z-251X 40 323 2.763 EN 10270-1 873.5 612.02 289.02 58.3 | 90.9 | 54.4 | 29.6 Z-250X 40 288 3.177 EN 10270-1 873.5 539.38 251.38 60.0 | 87.5 | 58.5 | 34.0 Z-290X 40 437 3.255 EN 10270-1 1134 748.61 311.61 61.6 | 88.8 | 60.4 | 35.6 Z-230X 30 352 3.612 EN 10270-1 858.7 569.82 217.82 61.0 | 81.6 | 63.0 | 38.6 Z-249X 40 258 3.644 EN 10270-1 873.5 477.12 219.12 62.3 | 84.6 | 63.2 | 39.0 Z-289X 40 392 3.676 EN 10270-1 1134 667.87 275.87 65.3 | 91.9 | 63.7 | 40.2 Z-288X 40 348 4.224 EN 10270-1 1134 588.13 240.13 69.9 | 95.6 | 68.0 | 46.2 Z-287X 40 310 4.856 EN 10270-1 1134 518.85 208.85 72.8 | 92.3 | 73.0 | 53.1 Z-286X 40 277 5.571 EN 10270-1 1134 459.05 182.05 76.2 | 89.1 | 78.6 | 61.0 Z-259X 30 347 6.599 EN 10270-1 1134 502.23 155.23 79.8 | 84.7 | 83.3 | 71.5 Z-353X 50 351 7.55 EN 10270-1 1763 558.09 207.09 85.9 | 89.5 | 84.8 | 83.3 Z-325X 40 390 7.801 EN 10270-1 1632 573.63 183.63 92.2 | 96.2 | 93.5 | 87.0 Z-324X 40 346 8.969 EN 10270-1 1632 505.71 159.71 100.0 | 100.0 | 100.0 | 100.0 Z-323X 40 308 10.29 EN 10270-1 1632 447.22 139.22 92.4 | 96.3 | 93.6 | 87.2 Z-322X 40 264 12.424 EN 10270-1 1632 379.3 115.3 83.5 | 92.1 | 86.1 | 72.2 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-324X Country of origin: DE, German; Extension Spring Z-324X Product image - Extension Springs Z-324X QR-Code: Extension Spring Z-324X
