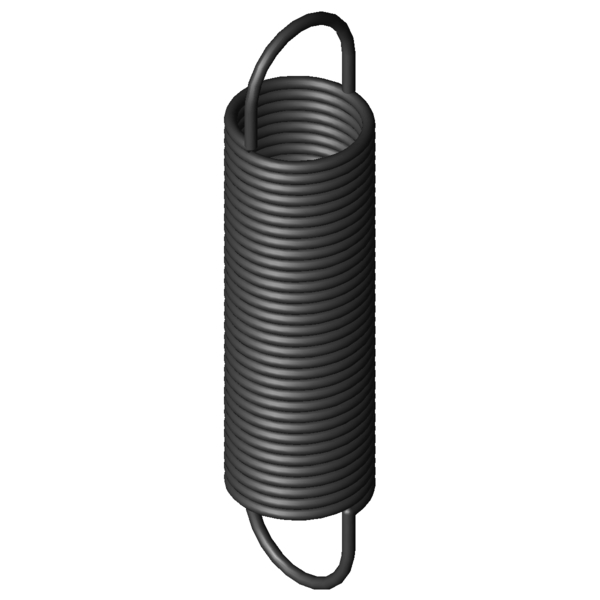

Home » Products » Extension Springs » z-331x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° Scaled prices - Extension Spring Z-331X Quantity Single price [EUR] 1 37.1900 EUR 2 29.6300 EUR 3 28.2300 EUR 7 25.1100 EUR 17 25.1100 EUR 37 25.1100 EUR 75 25.1100 EUR 125 25.1100 EUR 175 25.1100 EUR 250 25.1100 EUR 350 25.1100 EUR Extension Spring Buy Product image Extension Spring Z-331X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-331X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 80 mm outer coil diameter Dh 92 mm minimum bush diameter L0 350 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 243.25 mm length of unstressed spring body Ln 920.47 mm maximum spring length, inner loop to inner loop sn 570.47 mm Maximum spring deflection Fn 1132 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 53.37 mm distance of inner edge of loop from the spring body R 1.863 N/mm Spring rate F0 70 N initial tension Fntol 54.48 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 1.2 mm (+/-) tolerance of outer coil diameter Oesttol 39 degree (+/-) tolerance of loop position Weight 2477.454 g weight of one spring Price group ###BD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° force-path-calculation Extension Spring Z-331X Inquiry formular Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° Inquiry formular Extension Spring Z-331X Similar extension springs to Extension Spring Z-331X Spring steel Ø 7 x 80 x 350 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-331X EN 10270-1 7 80 350 1132 920.47 570.47 1.863 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209JX 60 365 0.39 EN 10270-1 438 1418.8 1053.8 48.6 | 78.4 | 46.4 | 20.9 Z-209HX 60 329 0.45 EN 10270-1 438 1246.2 917.2 50.8 | 77.8 | 50.4 | 24.1 Z-238HX 60 353 0.71 EN 10270-1 585 1136.7 783.7 60.6 | 81.9 | 62.2 | 37.6 Z-238GX 60 318 0.82 EN 10270-1 585 999.6 681.6 63.3 | 79.1 | 67.7 | 43.3 Z-274X 60 380 1.071 EN 10270-1 774.5 1067.45 687.45 71.5 | 81.9 | 75.7 | 56.8 Z-273X 60 342 1.232 EN 10270-1 774.5 939.92 597.92 77.0 | 83.8 | 81.9 | 65.3 Z-303X 70 394 1.328 EN 10270-1 968.5 1089.41 695.41 80.9 | 88.8 | 83.8 | 70.2 Z-333X 80 440 1.345 EN 10270-1 1132 1229.6 789.6 83.9 | 93.2 | 86.1 | 72.2 Z-302X 70 356 1.524 EN 10270-1 968.5 962.16 606.16 87.4 | 91.9 | 89.8 | 80.5 Z-332X 80 398 1.543 EN 10270-1 1132 1086.3 688.3 90.1 | 96.0 | 91.4 | 82.9 Z-301X 70 312 1.84 EN 10270-1 968.5 814.04 502.04 91.0 | 88.9 | 86.8 | 97.2 Z-331X 80 350 1.863 EN 10270-1 1132 920.47 570.47 100.0 | 100.0 | 100.0 | 100.0 Z-340X 70 424 2.093 EN 10270-1 1287 993.76 569.76 90.6 | 90.0 | 93.9 | 87.8 Z-310X 60 377 2.217 EN 10270-1 1122 847.07 470.07 86.6 | 85.9 | 90.8 | 83.1 Z-300X 70 274 2.237 EN 10270-1 968.5 686.79 412.79 82.9 | 85.3 | 79.0 | 84.6 Z-330X 80 308 2.266 EN 10270-1 1132 777.05 469.05 89.8 | 96.0 | 91.1 | 82.2 Z-339X 70 382 2.401 EN 10270-1 1287 878.64 496.64 85.7 | 93.0 | 87.5 | 76.6 Z-309X 60 340 2.543 EN 10270-1 1122 749.74 409.74 81.8 | 87.4 | 85.5 | 72.5 Z-362X 80 436 2.743 EN 10270-1 1627 985.62 549.62 79.8 | 89.3 | 83.0 | 67.0 Z-338X 70 334 2.898 EN 10270-1 1287 745.33 411.33 79.3 | 94.3 | 80.0 | 63.4 Z-329X 80 257 3.03 EN 10270-1 1132 607.5 350.5 77.8 | 91.1 | 80.7 | 61.4 Z-361X 80 380 3.313 EN 10270-1 1627 835.21 455.21 74.5 | 93.2 | 74.7 | 55.5 Z-337X 70 292 3.525 EN 10270-1 1287 630.2 338.2 72.0 | 90.3 | 73.6 | 52.1 Z-360X 80 332 4.029 EN 10270-1 1627 706.28 374.28 69.1 | 94.1 | 67.6 | 45.6 Z-346X 60 366 4.032 EN 10270-1 1489 703.11 337.11 67.6 | 90.2 | 67.6 | 44.9 Z-369X 70 420 4.297 EN 10270-1 1847 808.03 388.03 64.2 | 86.1 | 64.7 | 41.7 Z-345X 60 318 4.868 EN 10270-1 1489 597.21 279.21 62.8 | 88.6 | 62.5 | 37.2 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-331X Country of origin: DE, German; Extension Spring Z-331X Product image - Extension Springs Z-331X QR-Code: Extension Spring Z-331X
