Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

Scaled prices - Extension Spring Z-330X

Quantity	Single price [EUR]
1	28.6200 EUR
2	22.8000 EUR
3	21.1300 EUR
7	19.5000 EUR
17	19.5000 EUR
37	19.5000 EUR
75	19.5000 EUR
125	19.5000 EUR
175	19.5000 EUR
250	19.5000 EUR
350	19.5000 EUR

Extension Spring Buy

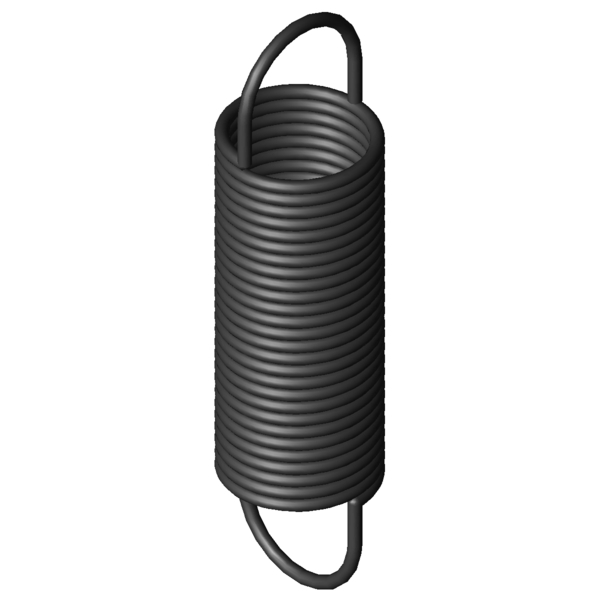

Product image Extension Spring Z-330X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-330X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	7	mm	Wire diameter
D		mm	mean coil diameter
De	80	mm	outer coil diameter
Dh	92	mm	minimum bush diameter
L0	308	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	201.25	mm	length of unstressed spring body
Ln	777.05	mm	maximum spring length, inner loop to inner loop
sn	469.05	mm	Maximum spring deflection
Fn	1132	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	53.37	mm	distance of inner edge of loop from the spring body
R	2.266	N/mm	Spring rate
F0	70	N	initial tension
Fntol	56.18	N	(+/-) tolerance of maximum spring force
L0tol	4	mm	(+/-) tolerance of unstressed length
Detol	1.2	mm	(+/-) tolerance of outer coil diameter
Oesttol	35	degree	(+/-) tolerance of loop position
Weight	2058.7294	g	weight of one spring
Price group	###BB	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

force-path-calculation Extension Spring Z-330X

Inquiry formular Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

Inquiry formular Extension Spring Z-330X

Similar extension springs to Extension Spring Z-330X Spring steel Ø 7 x 80 x 308 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-330X	EN 10270-1	7	80	308	1132	777.05	469.05	2.266	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-209HX	60	329	0.45	EN 10270-1	438	1246.2	917.2	47.4 \| 77.6 \| 44.9 \| 19.8
Z-209GX	60	295	0.52	EN 10270-1	438	1092.8	797.8	49.9 \| 78.4 \| 48.7 \| 22.7
Z-209EX	60	270	0.6	EN 10270-1	438	965.4	695.4	51.6 \| 75.6 \| 53.1 \| 26.1
Z-238GX	60	318	0.82	EN 10270-1	585	999.6	681.6	59.0 \| 81.1 \| 60.2 \| 35.6
Z-238EX	60	289	0.94	EN 10270-1	585	883.2	594.2	62.1 \| 80.1 \| 65.3 \| 40.8
Z-273X	60	342	1.232	EN 10270-1	774.5	939.92	597.92	69.4 \| 81.2 \| 73.4 \| 53.7
Z-272X	60	308	1.413	EN 10270-1	774.5	829.18	521.18	75.1 \| 84.5 \| 79.2 \| 61.6
Z-302X	70	356	1.524	EN 10270-1	968.5	962.16	606.16	78.6 \| 88.0 \| 81.5 \| 66.2
Z-332X	80	398	1.543	EN 10270-1	1132	1086.3	688.3	81.6 \| 92.5 \| 84.1 \| 68.1
Z-271X	60	270	1.706	EN 10270-1	774.5	701.65	431.65	78.3 \| 80.4 \| 80.2 \| 74.3
Z-301X	70	312	1.84	EN 10270-1	968.5	814.04	502.04	87.2 \| 92.1 \| 89.5 \| 79.9
Z-331X	80	350	1.863	EN 10270-1	1132	920.47	570.47	89.8 \| 96.0 \| 91.1 \| 82.2
Z-300X	70	274	2.237	EN 10270-1	968.5	686.79	412.79	90.9 \| 88.8 \| 86.8 \| 97.2
Z-330X	80	308	2.266	EN 10270-1	1132	777.05	469.05	100.0 \| 100.0 \| 100.0 \| 100.0
Z-339X	70	382	2.401	EN 10270-1	1287	878.64	496.64	91.2 \| 89.4 \| 91.2 \| 93.1
Z-309X	60	340	2.543	EN 10270-1	1122	749.74	409.74	88.9 \| 85.2 \| 93.2 \| 88.1
Z-338X	70	334	2.898	EN 10270-1	1287	745.33	411.33	86.1 \| 93.2 \| 87.8 \| 77.1
Z-329X	80	257	3.03	EN 10270-1	1132	607.5	350.5	85.5 \| 94.5 \| 87.4 \| 74.7
Z-308X	60	296	3.071	EN 10270-1	1122	635.36	339.36	81.9 \| 87.0 \| 85.7 \| 73.0
Z-361X	80	380	3.313	EN 10270-1	1627	835.21	455.21	80.1 \| 89.5 \| 83.3 \| 67.5
Z-337X	70	292	3.525	EN 10270-1	1287	630.2	338.2	79.2 \| 94.1 \| 80.0 \| 63.4
Z-360X	80	332	4.029	EN 10270-1	1627	706.28	374.28	74.5 \| 93.4 \| 74.7 \| 55.5
Z-336HX	70	242	4.71	EN 10270-1	1287	494.9	252.9	69.0 \| 88.7 \| 70.9 \| 47.4
Z-345X	60	318	4.868	EN 10270-1	1489	597.21	279.21	67.9 \| 90.6 \| 67.8 \| 45.3
Z-368X	70	364	5.188	EN 10270-1	1847	685.37	321.37	64.5 \| 86.5 \| 64.9 \| 42.0
Z-359X	80	275	5.38	EN 10270-1	1627	554.7	279.7	66.1 \| 92.3 \| 64.6 \| 41.5
Z-344X	60	276	5.921	EN 10270-1	1489	505.57	229.57	62.6 \| 88.2 \| 62.5 \| 37.2
Z-367X	70	316	6.309	EN 10270-1	1847	580.24	264.24	61.4 \| 90.8 \| 58.8 \| 34.5
Z-366HX	70	258	8.44	EN 10270-1	1847	455.6	197.6	54.6 \| 86.3 \| 51.7 \| 25.8

Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring Z-330X

Country of origin: DE, German; Extension Spring Z-330X

Product image - Extension Springs Z-330X

QR-Code: Extension Spring Z-330X

QR-Code - Extension Springs - Z-330X | https://www.federnshop.com/en/products/extension_springs/z-330x.html
