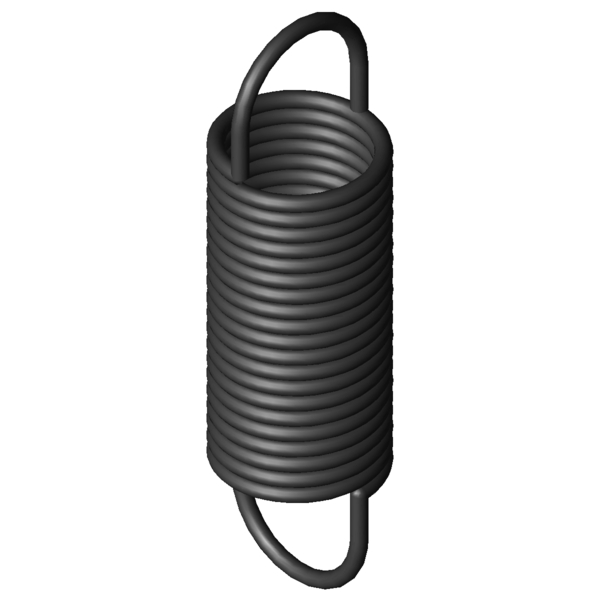

Home » Products » Extension Springs » z-336hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° Scaled prices - Extension Spring Z-336HX Quantity Single price [EUR] 1 19.3600 EUR 2 15.4300 EUR 3 12.4800 EUR 7 10.6000 EUR 17 10.6000 EUR 37 10.6000 EUR 75 10.6000 EUR 125 10.6000 EUR 175 10.6000 EUR 250 10.6000 EUR 350 10.6000 EUR Extension Spring Buy Product image Extension Spring Z-336HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-336HX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 70 mm outer coil diameter Dh 82 mm minimum bush diameter L0 242 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 152.25 mm length of unstressed spring body Ln 494.9 mm maximum spring length, inner loop to inner loop sn 252.9 mm Maximum spring deflection Fn 1287 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 44.9 mm distance of inner edge of loop from the spring body R 4.71 N/mm Spring rate F0 95 N initial tension Fntol 61.9 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 30 degree (+/-) tolerance of loop position Weight 1355.1191 g weight of one spring Price group ###AZ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° force-path-calculation Extension Spring Z-336HX Inquiry formular Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° Inquiry formular Extension Spring Z-336HX Similar extension springs to Extension Spring Z-336HX Spring steel Ø 7 x 70 x 242 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-336HX EN 10270-1 7 70 242 1287 494.9 252.9 4.71 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-212X 50 254 1.088 EN 10270-1 532.3 717.42 463.42 49.2 | 77.0 | 48.0 | 22.6 Z-238DX 60 253 1.13 EN 10270-1 585 745.1 492.1 52.0 | 84.3 | 48.4 | 23.4 Z-238CX 60 223 1.38 EN 10270-1 585 627.6 404.6 55.2 | 83.1 | 54.0 | 28.4 Z-271X 60 270 1.706 EN 10270-1 774.5 701.65 431.65 59.8 | 84.6 | 59.4 | 35.3 Z-301X 70 312 1.84 EN 10270-1 968.5 814.04 502.04 63.3 | 89.2 | 62.8 | 37.9 Z-241X 50 238 2.07 EN 10270-1 707.9 557.23 319.23 63.7 | 80.4 | 67.1 | 43.6 Z-270X 60 238 2.075 EN 10270-1 774.5 592.91 354.91 65.4 | 87.5 | 65.7 | 42.9 Z-300X 70 274 2.237 EN 10270-1 968.5 686.79 412.79 69.0 | 92.8 | 68.3 | 46.1 Z-260JX 60 198 2.77 EN 10270-1 774.5 463.4 265.4 72.4 | 82.0 | 77.7 | 57.3 Z-299X 70 228 2.99 EN 10270-1 968.5 536.6 308.6 78.3 | 94.7 | 78.6 | 61.7 Z-329X 80 257 3.03 EN 10270-1 1132 607.5 350.5 79.1 | 93.9 | 80.1 | 63.5 Z-278X 50 254 3.134 EN 10270-1 921.2 522.4 268.4 77.4 | 81.8 | 82.9 | 67.4 Z-337X 70 292 3.525 EN 10270-1 1287 630.2 338.2 85.5 | 94.3 | 87.4 | 74.8 Z-307X 60 258 3.735 EN 10270-1 1122 537.03 279.03 85.9 | 89.8 | 88.9 | 79.0 Z-336HX 70 242 4.71 EN 10270-1 1287 494.9 252.9 100.0 | 100.0 | 100.0 | 100.0 Z-298X 70 178 4.87 EN 10270-1 968.5 367.6 189.6 87.5 | 87.9 | 75.1 | 99.6 Z-306JX 60 212 4.99 EN 10270-1 1122 420.6 208.6 89.1 | 87.8 | 84.8 | 94.6 Z-359X 80 275 5.38 EN 10270-1 1627 554.7 279.7 86.6 | 87.7 | 84.8 | 87.5 Z-344X 60 276 5.921 EN 10270-1 1489 505.57 229.57 86.1 | 91.1 | 88.6 | 78.5 Z-367X 70 316 6.309 EN 10270-1 1847 580.24 264.24 81.2 | 88.0 | 82.7 | 72.8 Z-314X 50 242 6.93 EN 10270-1 1331 416.85 174.85 79.0 | 87.1 | 82.9 | 66.9 Z-343HX 60 226 7.91 EN 10270-1 1489 397.7 171.7 76.3 | 93.0 | 77.2 | 58.7 Z-366HX 70 258 8.44 EN 10270-1 1847 455.6 197.6 74.0 | 93.8 | 73.9 | 54.4 Z-351X 50 260 11.086 EN 10270-1 1763 401.02 141.02 64.4 | 88.2 | 64.4 | 40.7 Z-373HX 60 240 14.3 EN 10270-1 2132 372.3 132.3 59.6 | 90.8 | 56.3 | 31.6 Z-380HX 50 227 27.14 EN 10270-1 2515 308 81 47.4 | 84.2 | 41.6 | 16.4 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring Z-336HX Country of origin: DE, German; Extension Spring Z-336HX Product image - Extension Springs Z-336HX QR-Code: Extension Spring Z-336HX
