Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

Scaled prices - Extension Spring Z-271X

Quantity Single price [EUR]
1 15.4300 EUR
2 12.3000 EUR
3 8.1000 EUR
7 6.2800 EUR
17 6.2800 EUR
37 6.2800 EUR
75 6.2800 EUR
125 6.2800 EUR
175 6.2800 EUR
250 6.2800 EUR
350 6.2800 EUR

Extension Spring Buy

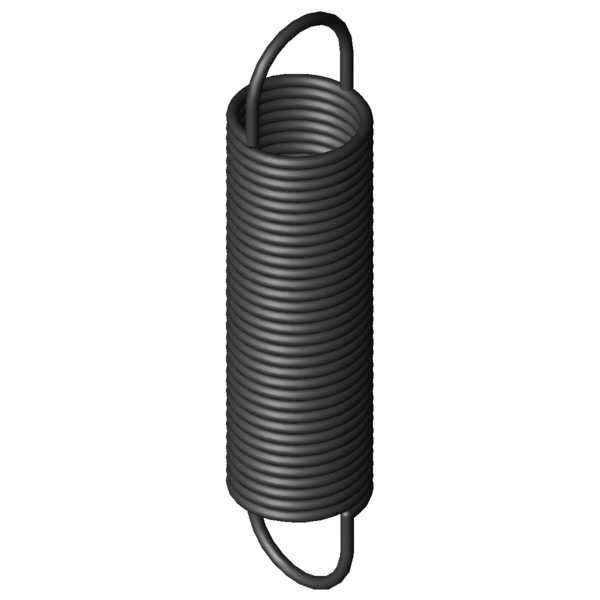

Product image Extension Spring Z-271X
Product image Extension Spring Z-271X
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-271X

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 5.5 mm Wire diameter
D mm mean coil diameter
De 60 mm outer coil diameter
Dh 69.3 mm minimum bush diameter
L0 270 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 191.13 mm length of unstressed spring body
Ln 701.65 mm maximum spring length, inner loop to inner loop
sn 431.65 mm Maximum spring deflection
Fn 774.5 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 39.43 mm distance of inner edge of loop from the spring body
R 1.706 N/mm Spring rate
F0 38 N initial tension
Fntol 37.45 N (+/-) tolerance of maximum spring force
L0tol 4 mm (+/-) tolerance of unstressed length
Detol 1 mm (+/-) tolerance of outer coil diameter
Oesttol 37 degree (+/-) tolerance of loop position
Weight 1141.8779 g weight of one spring
Price group ###AO - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

force-path-calculation Extension Spring Z-271X

Inquiry formular Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

Inquiry formular Extension Spring Z-271X

Similar extension springs to Extension Spring Z-271X Spring steel Ø 5.5 x 60 x 270 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-271X EN 10270-1 5.5 60 270 774.5 701.65 431.65 1.706 100.0 | 100.0 | 100.0 | 100.0
Number of similar metal springs: 1

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-209HX 60 329 0.45 EN 10270-1 438 1246.2 917.2 55.5 | 88.0 | 51.8 | 26.6
Z-209GX 60 295 0.52 EN 10270-1 438 1092.8 797.8 59.0 | 91.1 | 55.3 | 30.6
Z-209EX 60 270 0.6 EN 10270-1 438 965.4 695.4 62.8 | 93.9 | 59.3 | 35.1
Z-209DX 60 239 0.72 EN 10270-1 438 815 576 66.1 | 90.1 | 65.7 | 42.4
Z-238GX 60 318 0.82 EN 10270-1 585 999.6 681.6 69.7 | 91.9 | 69.4 | 47.8
Z-209CX 60 212 0.88 EN 10270-1 438 687.8 475.8 70.6 | 86.8 | 73.6 | 51.3
Z-238EX 60 289 0.94 EN 10270-1 585 883.2 594.2 74.6 | 94.8 | 74.1 | 54.9
Z-213X 50 282 0.949 EN 10270-1 532.3 813.65 531.65 72.6 | 87.0 | 75.0 | 55.8
Z-212X 50 254 1.088 EN 10270-1 532.3 717.42 463.42 77.1 | 86.4 | 80.9 | 64.0
Z-238DX 60 253 1.13 EN 10270-1 585 745.1 492.1 80.9 | 94.9 | 81.6 | 66.3
Z-238CX 60 223 1.38 EN 10270-1 585 627.6 404.6 85.5 | 91.2 | 84.6 | 80.6
Z-272X 60 308 1.413 EN 10270-1 774.5 829.18 521.18 90.0 | 95.9 | 91.4 | 82.8
Z-271X 60 270 1.706 EN 10270-1 774.5 701.65 431.65 100.0 | 100.0 | 100.0 | 100.0
Z-242X 50 274 1.715 EN 10270-1 707.9 659.44 385.44 93.0 | 90.9 | 90.3 | 97.7
Z-270X 60 238 2.075 EN 10270-1 774.5 592.91 354.91 89.8 | 96.0 | 91.1 | 82.2
Z-300X 70 274 2.237 EN 10270-1 968.5 686.79 412.79 84.9 | 90.5 | 87.8 | 76.5
Z-279X 50 292 2.596 EN 10270-1 921.2 616.06 324.06 78.2 | 91.9 | 79.6 | 63.1
Z-308X 60 296 3.071 EN 10270-1 1122 635.36 339.36 73.6 | 92.8 | 73.8 | 54.3
Z-278X 50 254 3.134 EN 10270-1 921.2 522.4 268.4 72.6 | 92.5 | 73.1 | 52.3
Z-337X 70 292 3.525 EN 10270-1 1287 630.2 338.2 67.3 | 85.6 | 69.3 | 47.2
Z-307X 60 258 3.735 EN 10270-1 1122 537.03 279.03 68.6 | 94.3 | 66.8 | 44.6
Z-345X 60 318 4.868 EN 10270-1 1489 597.21 279.21 59.9 | 87.8 | 58.3 | 33.6
Z-306JX 60 212 4.99 EN 10270-1 1122 420.6 208.6 60.2 | 88.6 | 58.7 | 33.4
Z-315X 50 280 5.698 EN 10270-1 1331 492.65 212.65 57.1 | 89.0 | 53.7 | 28.7
Z-344X 60 276 5.921 EN 10270-1 1489 505.57 229.57 57.5 | 92.1 | 52.6 | 27.7
Z-343HX 60 226 7.91 EN 10270-1 1489 397.7 171.7 51.3 | 87.4 | 45.9 | 20.7
Z-366HX 70 258 8.44 EN 10270-1 1847 455.6 197.6 48.8 | 83.3 | 43.9 | 19.2
Z-374X 60 300 10.694 EN 10270-1 2132 476.96 176.96 46.6 | 86.3 | 38.7 | 14.9
Number of similar metal springs: 27

Customs tariff number: 73202085; Extension Spring Z-271X

Country of origin: DE, German; Extension Spring Z-271X
