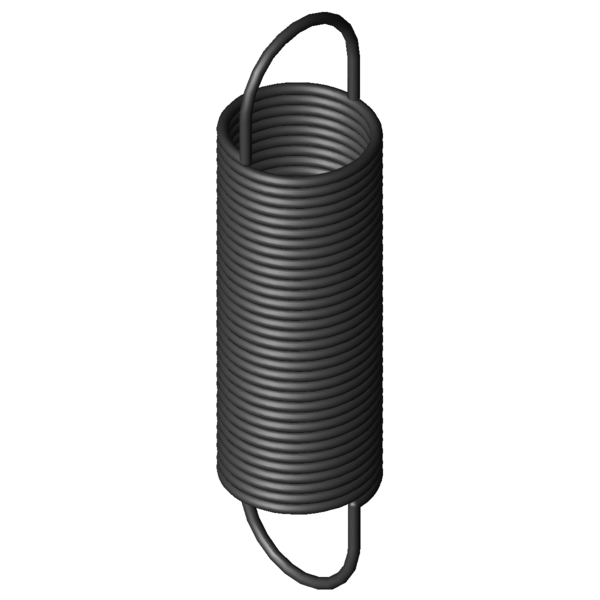

Home » Products » Extension Springs » z-209dx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° Scaled prices - Extension Spring Z-209DX Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 5.4200 EUR 37 5.4200 EUR 75 5.4200 EUR 125 5.4200 EUR 175 5.4200 EUR 250 5.4200 EUR 350 5.4200 EUR Extension Spring Buy Product image Extension Spring Z-209DX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-209DX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 4.5 mm Wire diameter D mm mean coil diameter De 60 mm outer coil diameter Dh 68 mm minimum bush diameter L0 239 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 156.38 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 576 mm Maximum spring deflection Fn 438 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 41.31 mm distance of inner edge of loop from the spring body R 0.72 N/mm Spring rate F0 21 N initial tension Fntol 22.4 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 43 degree (+/-) tolerance of loop position Weight 778.4277 g weight of one spring Price group ###AL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° force-path-calculation Extension Spring Z-209DX Inquiry formular Extension Spring Z-209DX Spring steel Ø 4.5 x 60 x 239 mm / 270° Inquiry formular Extension Spring Z-209DX Customs tariff number: 73202085; Extension Spring Z-209DX Country of origin: DE, German; Extension Spring Z-209DX Product image - Extension Springs Z-209DX QR-Code: Extension Spring Z-209DX
