Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

Scaled prices - Extension Spring Z-270X

Quantity	Single price [EUR]
1	15.2800 EUR
2	12.1700 EUR
3	7.9400 EUR
7	6.0400 EUR
17	6.0400 EUR
37	6.0400 EUR
75	6.0400 EUR
125	6.0400 EUR
175	6.0400 EUR
250	6.0400 EUR
350	6.0400 EUR

Extension Spring Buy

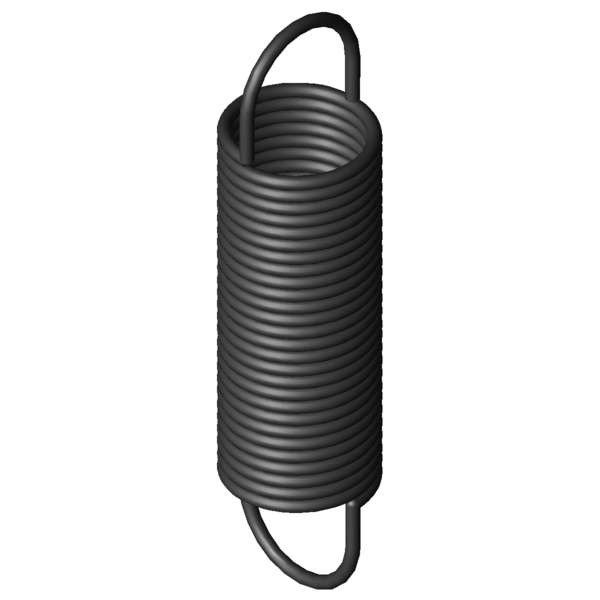

Product image Extension Spring Z-270X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-270X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	5.5	mm	Wire diameter
D		mm	mean coil diameter
De	60	mm	outer coil diameter
Dh	69.3	mm	minimum bush diameter
L0	238	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	158.13	mm	length of unstressed spring body
Ln	592.91	mm	maximum spring length, inner loop to inner loop
sn	354.91	mm	Maximum spring deflection
Fn	774.5	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	39.93	mm	distance of inner edge of loop from the spring body
R	2.075	N/mm	Spring rate
F0	38	N	initial tension
Fntol	36.9	N	(+/-) tolerance of maximum spring force
L0tol	3	mm	(+/-) tolerance of unstressed length
Detol	1	mm	(+/-) tolerance of outer coil diameter
Oesttol	34	degree	(+/-) tolerance of loop position
Weight	948.8894	g	weight of one spring
Price group	###AN	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

force-path-calculation Extension Spring Z-270X

Inquiry formular Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

Inquiry formular Extension Spring Z-270X

Similar extension springs to Extension Spring Z-270X Spring steel Ø 5.5 x 60 x 238 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-270X	EN 10270-1	5.5	60	238	774.5	592.91	354.91	2.075	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-209GX	60	295	0.52	EN 10270-1	438	1092.8	797.8	54.4 \| 87.5 \| 50.5 \| 25.2
Z-209EX	60	270	0.6	EN 10270-1	438	965.4	695.4	57.5 \| 90.0 \| 53.8 \| 28.9
Z-209DX	60	239	0.72	EN 10270-1	438	815	576	62.6 \| 93.8 \| 59.1 \| 34.8
Z-209CX	60	212	0.88	EN 10270-1	438	687.8	475.8	66.0 \| 90.3 \| 65.6 \| 42.2
Z-238EX	60	289	0.94	EN 10270-1	585	883.2	594.2	67.9 \| 91.1 \| 67.6 \| 45.1
Z-212X	50	254	1.088	EN 10270-1	532.3	717.42	463.42	70.5 \| 86.3 \| 72.7 \| 52.6
Z-238DX	60	253	1.13	EN 10270-1	585	745.1	492.1	74.4 \| 95.0 \| 73.8 \| 54.5
Z-209BX	60	180	1.18	EN 10270-1	438	534.1	354.1	73.6 \| 85.8 \| 78.2 \| 56.7
Z-211X	50	222	1.314	EN 10270-1	532.3	605.81	383.81	76.8 \| 86.1 \| 80.6 \| 63.6
Z-238CX	60	223	1.38	EN 10270-1	585	627.6	404.6	80.9 \| 94.9 \| 81.6 \| 66.3
Z-271X	60	270	1.706	EN 10270-1	774.5	701.65	431.65	89.8 \| 96.0 \| 91.1 \| 82.2
Z-238BX	60	189	1.84	EN 10270-1	585	491.6	302.6	86.4 \| 90.1 \| 80.4 \| 88.6
Z-241X	50	238	2.07	EN 10270-1	707.9	557.23	319.23	93.5 \| 91.4 \| 90.7 \| 98.4
Z-270X	60	238	2.075	EN 10270-1	774.5	592.91	354.91	100.0 \| 100.0 \| 100.0 \| 100.0
Z-260JX	60	198	2.77	EN 10270-1	774.5	463.4	265.4	85.5 \| 94.4 \| 87.4 \| 74.8
Z-299X	70	228	2.99	EN 10270-1	968.5	536.6	308.6	80.9 \| 89.6 \| 83.5 \| 69.5
Z-308X	60	296	3.071	EN 10270-1	1122	635.36	339.36	79.2 \| 89.2 \| 82.3 \| 66.0
Z-278X	50	254	3.134	EN 10270-1	921.2	522.4	268.4	78.6 \| 92.3 \| 79.8 \| 63.6
Z-307X	60	258	3.735	EN 10270-1	1122	537.03	279.03	73.8 \| 93.2 \| 73.8 \| 54.3
Z-277X	50	222	3.812	EN 10270-1	921.2	442.68	220.68	72.5 \| 92.2 \| 73.1 \| 52.3
Z-336HX	70	242	4.71	EN 10270-1	1287	494.9	252.9	65.4 \| 87.5 \| 65.7 \| 42.9
Z-306JX	60	212	4.99	EN 10270-1	1122	420.6	208.6	65.5 \| 92.1 \| 63.9 \| 40.6
Z-344X	60	276	5.921	EN 10270-1	1489	505.57	229.57	60.1 \| 88.3 \| 58.3 \| 33.6
Z-314X	50	242	6.93	EN 10270-1	1331	416.85	174.85	57.4 \| 89.7 \| 53.7 \| 28.7
Z-343HX	60	226	7.91	EN 10270-1	1489	397.7	171.7	55.5 \| 91.2 \| 50.2 \| 25.2
Z-366HX	70	258	8.44	EN 10270-1	1847	455.6	197.6	51.5 \| 82.2 \| 48.8 \| 23.3
Z-374X	60	300	10.694	EN 10270-1	2132	476.96	176.96	48.0 \| 82.7 \| 43.1 \| 18.1
Z-351X	50	260	11.086	EN 10270-1	1763	401.02	141.02	47.9 \| 84.5 \| 41.8 \| 17.5
Z-373HX	60	240	14.3	EN 10270-1	2132	372.3	132.3	46.5 \| 89.3 \| 36.8 \| 13.5

Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring Z-270X

Country of origin: DE, German; Extension Spring Z-270X
