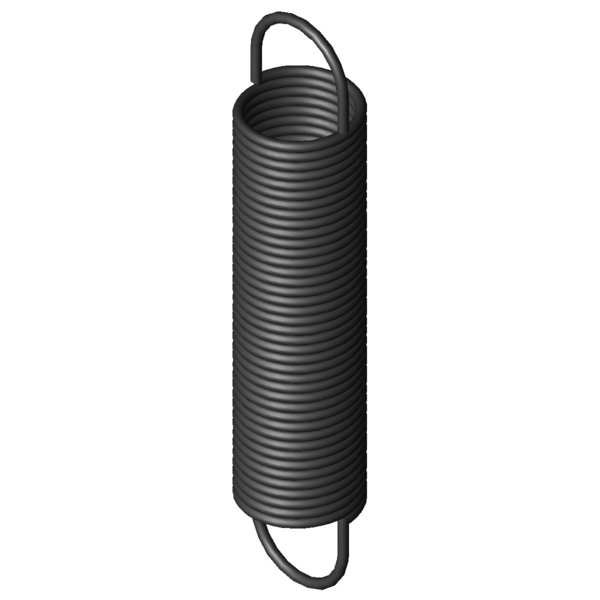

Home » Products » Extension Springs » z-332i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° Scaled prices - Extension Spring Z-332I Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 39.3200 EUR 37 39.3200 EUR 75 39.3200 EUR 125 39.3200 EUR 175 39.3200 EUR 250 39.3200 EUR 350 39.3200 EUR Extension Spring Buy Product image Extension Spring Z-332I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-332I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 80 mm outer coil diameter Dh 92 mm minimum bush diameter L0 396 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 290.5 mm length of unstressed spring body Ln 1080 mm maximum spring length, inner loop to inner loop sn 684 mm Maximum spring deflection Fn 1132 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 52.75 mm distance of inner edge of loop from the spring body R 1.553 N/mm Spring rate F0 70 N initial tension Fntol 53.11 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 1.2 mm (+/-) tolerance of outer coil diameter Oesttol 42 degree (+/-) tolerance of loop position Weight 2948.5192 g weight of one spring Price group ###BG - price group Technical drawing Extension Spring Datasheet Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° force-path-calculation Extension Spring Z-332I Inquiry formular Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° Inquiry formular Extension Spring Z-332I Similar extension springs to Extension Spring Z-332I Spring steel Ø 7 x 80 x 396 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-332I EN 10270-1 7 80 396 1132 1080 684 1.553 81.5 | 92.4 | 84.0 | 68.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209KI 60 401 0.35 EN 10270-1 438 1587 1186 49.9 | 79.3 | 48.2 | 22.3 Z-209JI 60 365 0.39 EN 10270-1 438 1414.5 1049.5 51.4 | 77.2 | 51.9 | 25.2 Z-238JI 60 393 0.62 EN 10270-1 585 1289.7 896.7 61.8 | 81.9 | 64.0 | 39.4 Z-275I 60 422 0.936 EN 10270-1 774.5 1208.57 786.57 73.2 | 82.5 | 77.7 | 59.5 Z-274I 60 378 1.076 EN 10270-1 774.5 1062.25 684.25 78.5 | 83.0 | 84.2 | 68.4 Z-304I 70 436 1.161 EN 10270-1 968.5 1231.82 795.82 82.9 | 89.4 | 85.8 | 73.5 Z-334I 80 488 1.175 EN 10270-1 1132 1391.6 903.6 85.8 | 93.7 | 87.8 | 75.7 Z-303I 70 392 1.335 EN 10270-1 968.5 1083.7 691.7 89.7 | 92.2 | 92.2 | 84.6 Z-333I 80 438 1.352 EN 10270-1 1132 1223.4 785.4 92.5 | 96.8 | 93.5 | 87.1 Z-302I 70 354 1.533 EN 10270-1 968.5 956.44 602.44 78.5 | 88.0 | 81.4 | 66.0 Z-332I 80 396 1.553 EN 10270-1 1132 1080 684 81.5 | 92.4 | 84.0 | 68.0 Z-341I 70 472 1.828 EN 10270-1 1287 1124.03 652.03 84.0 | 93.4 | 85.5 | 73.0 Z-331I 80 348 1.877 EN 10270-1 1132 914.24 566.24 77.7 | 91.3 | 80.6 | 61.2 Z-311I 60 420 1.937 EN 10270-1 1122 957.95 537.95 80.0 | 87.0 | 83.8 | 69.1 Z-340I 70 422 2.104 EN 10270-1 1287 988.72 566.72 79.4 | 94.6 | 80.1 | 63.5 Z-310I 60 375 2.229 EN 10270-1 1122 842.56 467.56 79.8 | 86.6 | 83.7 | 69.0 Z-330I 80 306 2.286 EN 10270-1 1132 770.83 464.83 85.5 | 94.7 | 87.3 | 74.5 Z-363I 80 482 2.404 EN 10270-1 1627 1109.1 627.1 74.4 | 92.8 | 74.7 | 55.6 Z-339I 70 380 2.415 EN 10270-1 1287 873.59 493.59 91.3 | 89.3 | 91.1 | 93.4 Z-362I 80 434 2.76 EN 10270-1 1627 980.25 546.25 71.2 | 95.5 | 69.6 | 48.4 Z-338I 70 332 2.92 EN 10270-1 1287 740.28 408.28 90.4 | 88.3 | 86.4 | 96.4 Z-361I 80 378 3.337 EN 10270-1 1627 829.84 451.84 80.2 | 89.5 | 83.4 | 67.6 Z-347I 60 406 3.533 EN 10270-1 1489 790.68 384.68 66.6 | 90.8 | 66.1 | 42.8 Z-370I 70 466 3.765 EN 10270-1 1847 908.78 442.78 63.1 | 86.7 | 63.0 | 39.7 Z-346I 60 364 4.057 EN 10270-1 1489 699.05 335.05 62.9 | 89.0 | 62.5 | 37.2 Z-360I 80 330 4.065 EN 10270-1 1627 700.91 370.91 81.5 | 88.5 | 81.5 | 74.5 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring Z-332I Country of origin: DE, German; Extension Spring Z-332I Product image - Extension Springs Z-332I QR-Code: Extension Spring Z-332I
