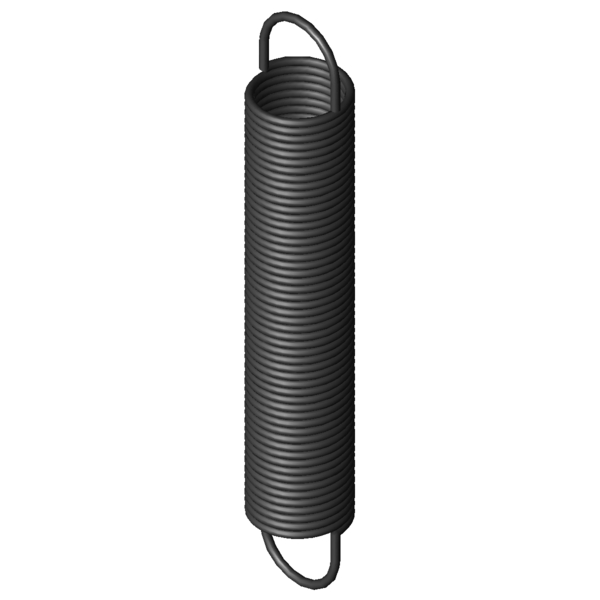

Home » Products » Extension Springs » z-334i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° Scaled prices - Extension Spring Z-334I Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 39.3200 EUR 37 39.3200 EUR 75 39.3200 EUR 125 39.3200 EUR 175 39.3200 EUR 250 39.3200 EUR 350 39.3200 EUR Extension Spring Buy Product image Extension Spring Z-334I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-334I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 80 mm outer coil diameter Dh 92 mm minimum bush diameter L0 488 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 381.5 mm length of unstressed spring body Ln 1391.6 mm maximum spring length, inner loop to inner loop sn 903.6 mm Maximum spring deflection Fn 1132 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 53.25 mm distance of inner edge of loop from the spring body R 1.175 N/mm Spring rate F0 70 N initial tension Fntol 51.28 N (+/-) tolerance of maximum spring force L0tol 7.32 mm (+/-) tolerance of unstressed length Detol 1.2 mm (+/-) tolerance of outer coil diameter Oesttol 49 degree (+/-) tolerance of loop position Weight 3855.7559 g weight of one spring Price group ###BG - price group Technical drawing Extension Spring Datasheet Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° force-path-calculation Extension Spring Z-334I Inquiry formular Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° Inquiry formular Extension Spring Z-334I Similar extension springs to Extension Spring Z-334I Spring steel Ø 7 x 80 x 488 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-334I EN 10270-1 7 80 488 1132 1391.6 903.6 1.175 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-276I 60 466 0.829 EN 10270-1 774.5 1354.88 888.88 78.7 | 83.0 | 83.4 | 69.6 Z-306I 70 536 0.893 EN 10270-1 968.5 1569.8 1033.8 83.6 | 89.5 | 86.5 | 74.8 Z-336I 80 600 0.905 EN 10270-1 1132 1773.9 1173.9 86.4 | 93.8 | 88.5 | 77.0 Z-305I 70 486 1.01 EN 10270-1 968.5 1400.82 914.82 89.7 | 92.4 | 92.2 | 84.5 Z-335I 80 544 1.022 EN 10270-1 1132 1582.7 1038.7 92.4 | 96.6 | 93.5 | 87.0 Z-304I 70 436 1.161 EN 10270-1 968.5 1231.82 795.82 91.0 | 88.9 | 86.8 | 97.1 Z-334I 80 488 1.175 EN 10270-1 1132 1391.6 903.6 100.0 | 100.0 | 100.0 | 100.0 Z-303I 70 392 1.335 EN 10270-1 968.5 1083.7 691.7 85.5 | 85.9 | 81.1 | 89.5 Z-333I 80 438 1.352 EN 10270-1 1132 1223.4 785.4 92.3 | 96.6 | 93.5 | 86.9 Z-343I 70 584 1.408 EN 10270-1 1287 1431.03 847.03 87.9 | 90.4 | 90.8 | 82.4 Z-313I 60 520 1.491 EN 10270-1 1122 1218.83 698.83 84.2 | 86.3 | 88.2 | 78.0 Z-332I 80 396 1.553 EN 10270-1 1132 1080 684 85.8 | 93.7 | 87.8 | 75.7 Z-342I 70 528 1.591 EN 10270-1 1287 1277.53 749.53 83.9 | 93.3 | 85.5 | 73.0 Z-312I 60 470 1.685 EN 10270-1 1122 1088.39 618.39 80.0 | 87.1 | 83.8 | 69.0 Z-365I 80 602 1.818 EN 10270-1 1627 1431 829 78.0 | 89.5 | 80.7 | 63.8 Z-341I 70 472 1.828 EN 10270-1 1287 1124.03 652.03 79.4 | 94.7 | 80.1 | 63.5 Z-331I 80 348 1.877 EN 10270-1 1132 914.24 566.24 78.1 | 90.4 | 81.3 | 62.7 Z-364I 80 538 2.09 EN 10270-1 1627 1259.2 721.2 74.3 | 92.7 | 74.7 | 55.5 Z-340I 70 422 2.104 EN 10270-1 1287 988.72 566.72 73.9 | 91.3 | 75.3 | 55.2 Z-363I 80 482 2.404 EN 10270-1 1627 1109.1 627.1 71.1 | 95.4 | 69.5 | 48.3 Z-349I 60 512 2.672 EN 10270-1 1489 1019.77 507.77 66.3 | 90.1 | 66.1 | 42.7 Z-362I 80 434 2.76 EN 10270-1 1627 980.25 546.25 66.4 | 92.1 | 65.0 | 42.1 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-334I Country of origin: DE, German; Extension Spring Z-334I Product image - Extension Springs Z-334I QR-Code: Extension Spring Z-334I
