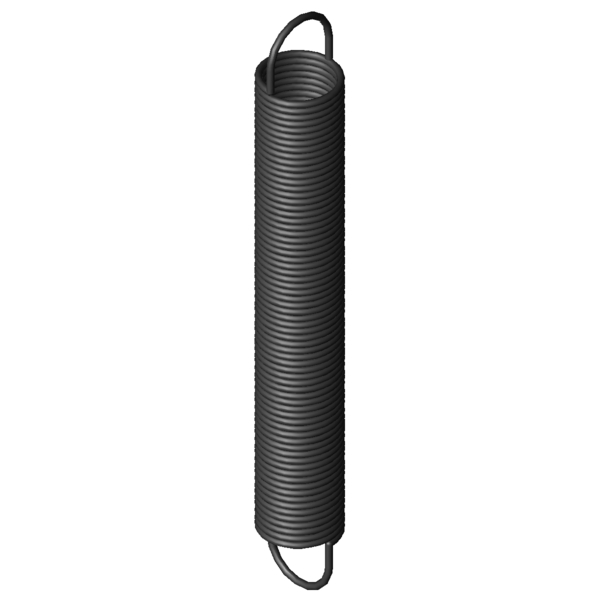

Home » Products » Extension Springs » z-336x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° Scaled prices - Extension Spring Z-336X Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 39.3200 EUR 37 39.3200 EUR 75 39.3200 EUR 125 39.3200 EUR 175 39.3200 EUR 250 39.3200 EUR 350 39.3200 EUR Extension Spring Buy Product image Extension Spring Z-336X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-336X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 80 mm outer coil diameter Dh 92 mm minimum bush diameter L0 602 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 495.25 mm length of unstressed spring body Ln 1780.1 mm maximum spring length, inner loop to inner loop sn 1178.1 mm Maximum spring deflection Fn 1132 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 53.37 mm distance of inner edge of loop from the spring body R 0.901 N/mm Spring rate F0 70 N initial tension Fntol 50.3 N (+/-) tolerance of maximum spring force L0tol 9.03 mm (+/-) tolerance of unstressed length Detol 1.2 mm (+/-) tolerance of outer coil diameter Oesttol 55 degree (+/-) tolerance of loop position Weight 4989.8018 g weight of one spring Price group ###BG - price group Technical drawing Extension Spring Datasheet Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° force-path-calculation Extension Spring Z-336X Inquiry formular Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° Inquiry formular Extension Spring Z-336X Similar extension springs to Extension Spring Z-336X Spring steel Ø 7 x 80 x 602 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-336X EN 10270-1 7 80 602 1132 1780.1 1178.1 0.901 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-306X 70 538 0.89 EN 10270-1 968.5 1575.5 1037.5 91.0 | 89.0 | 86.8 | 97.2 Z-336X 80 602 0.901 EN 10270-1 1132 1780.1 1178.1 100.0 | 100.0 | 100.0 | 100.0 Z-305X 70 488 1.005 EN 10270-1 968.5 1406.54 918.54 86.4 | 86.2 | 81.8 | 91.1 Z-335X 80 546 1.018 EN 10270-1 1132 1589 1043 93.2 | 96.9 | 94.3 | 88.5 Z-304X 70 438 1.155 EN 10270-1 968.5 1237.54 799.54 79.8 | 83.4 | 76.7 | 79.3 Z-334X 80 490 1.17 EN 10270-1 1132 1397.8 907.8 86.5 | 93.8 | 88.5 | 77.1 Z-333X 80 440 1.345 EN 10270-1 1132 1229.6 789.6 65.0 | 91.3 | 63.6 | 40.1 Z-343X 70 586 1.402 EN 10270-1 1287 1436.08 850.08 79.5 | 94.9 | 80.1 | 63.5 Z-313X 60 522 1.486 EN 10270-1 1122 1223.34 701.34 74.4 | 83.9 | 79.3 | 60.1 Z-332X 80 398 1.543 EN 10270-1 1132 1086.3 688.3 69.4 | 94.3 | 67.9 | 46.0 Z-342X 70 530 1.584 EN 10270-1 1287 1282.58 752.58 74.7 | 91.8 | 75.9 | 56.2 Z-366X 80 668 1.603 EN 10270-1 1627 1608.2 940.2 74.3 | 92.5 | 74.7 | 55.5 Z-365X 80 604 1.81 EN 10270-1 1627 1436.86 832.86 71.7 | 95.7 | 70.1 | 49.2 Z-341X 70 474 1.82 EN 10270-1 1287 1129.08 655.08 69.8 | 88.7 | 71.8 | 48.9 Z-331X 80 350 1.863 EN 10270-1 1132 920.47 570.47 61.2 | 90.4 | 58.8 | 34.5 Z-364X 80 540 2.08 EN 10270-1 1627 1264.96 724.96 66.9 | 92.4 | 65.6 | 42.8 Z-340X 70 424 2.093 EN 10270-1 1287 993.76 569.76 64.5 | 91.1 | 63.0 | 39.3 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-336X Country of origin: DE, German; Extension Spring Z-336X Product image - Extension Springs Z-336X QR-Code: Extension Spring Z-336X
