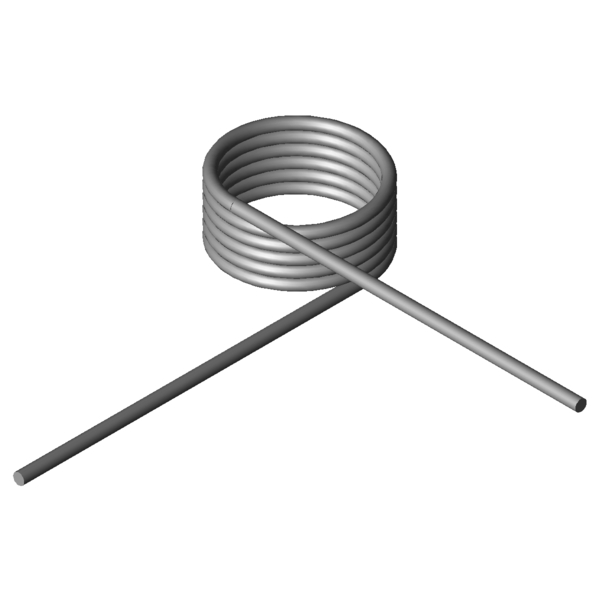

Home » Products » Torsion springs » t-16837r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° Scaled prices - Torsion spring T-16837R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-16837R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16837R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.25 mm Wire diameter Di 23.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 15.19 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 258.89 Nmm (+/-) Tolerance maximum torque Mn 1115.14 Nmm maximum torque alphan 127.7 degree maximum rotational angle nt 5.75 pc. total number of coils Ddmax 20.1 mm maximum possible mandrel diameter Ddmin 15 mm Min. possible mandrel diameter Ditol 0.55 mm (+/-) tolerance of inner coil diameter Weight 18.9674 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° force-path-calculation Torsion spring T-16837R Inquiry formular Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° Inquiry formular Torsion spring T-16837R Similar torsion springs to Torsion spring T-16837R: Stainless steel Ø 2.25 x 23.5 x 70 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16747R 16.2 12.25 295.06 207.66 1.4310 43.6 | 70.6 | 44.0 | 16.3 T-18861R 14.4 14 449.91 168.83 1.4310 54.5 | 74.9 | 58.0 | 30.5 T-18886R 18.4 14 457.84 214.72 1.4310 51.7 | 80.5 | 50.3 | 24.4 T-18923R 13.5 15.75 572.76 128.24 1.4310 68.2 | 78.0 | 75.5 | 51.1 T-18935R 16 15.75 581.21 151.39 1.4310 64.6 | 81.5 | 68.2 | 44.0 T-18947R 20.5 15.75 591.67 193.08 1.4310 60.9 | 87.9 | 59.6 | 35.1 T-19161R 18 17.5 838.31 161.03 1.4310 73.6 | 84.1 | 77.2 | 59.6 T-19186R 23 17.5 853.09 204.81 1.4310 69.4 | 91.2 | 69.4 | 47.7 T-19182R 23 9.5 853.09 99.09 1.4310 86.2 | 83.1 | 77.0 | 98.6 T-16807R 11.5 15.19 1041.37 63.68 1.4310 69.3 | 83.0 | 71.6 | 53.4 T-16817R 15.5 15.19 1076.95 85.01 1.4310 79.7 | 88.7 | 81.6 | 68.9 T-16827R 18.5 15.19 1094.7 101.02 1.4310 87.4 | 92.9 | 88.6 | 80.6 T-16837R 23.5 15.19 1115.14 127.7 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19243R 17.5 16.88 1524.2 89.03 1.4310 69.1 | 84.8 | 71.4 | 51.0 T-19263R 22.5 16.88 1558.44 113.72 1.4310 78.6 | 91.9 | 80.3 | 63.7 T-16927R 19.5 18.9 2014.76 83.31 1.4310 59.2 | 81.2 | 60.3 | 36.1 T-16923R 19.5 10.5 2014.76 39.84 1.4310 46.0 | 77.5 | 43.3 | 17.3 T-16937R 24 18.9 2052.94 102.02 1.4310 65.6 | 86.2 | 67.1 | 43.4 T-16933R 24 10.5 2052.94 48.79 1.4310 49.8 | 82.5 | 46.3 | 20.8 T-19343R 21 20.25 2533.79 85.62 1.4310 54.9 | 79.8 | 55.5 | 29.5 T-19363R 26 20.25 2582.84 105.41 1.4310 59.5 | 80.1 | 62.9 | 35.6 T-17013R 17 12 2827.78 29.69 1.4310 38.1 | 73.9 | 31.3 | 9.2 T-17023R 22 12 2909.76 38.12 1.4310 42.2 | 81.0 | 34.1 | 11.4 T-17027R 22 21.6 2909.76 79.7 1.4310 50.8 | 78.1 | 50.4 | 23.9 T-17033R 27 12 2964.79 46.55 1.4310 43.2 | 78.8 | 37.0 | 13.7 T-19703R 20.5 16.88 7210.54 23.96 1.4310 31.9 | 75.7 | 17.1 | 2.9 T-19712R 25.5 16.88 7413.47 29.56 1.4310 33.3 | 77.4 | 19.1 | 3.5 T-19721R 30.5 16.88 7558.94 35.17 1.4310 32.5 | 72.3 | 21.1 | 4.1 Number of similar metal springs: 27 Customs tariff number: 73202089; Torsion spring T-16837R Country of origin: DE, German; Torsion spring T-16837R Product image - Torsion springs T-16837R QR-Code: Torsion spring T-16837R
