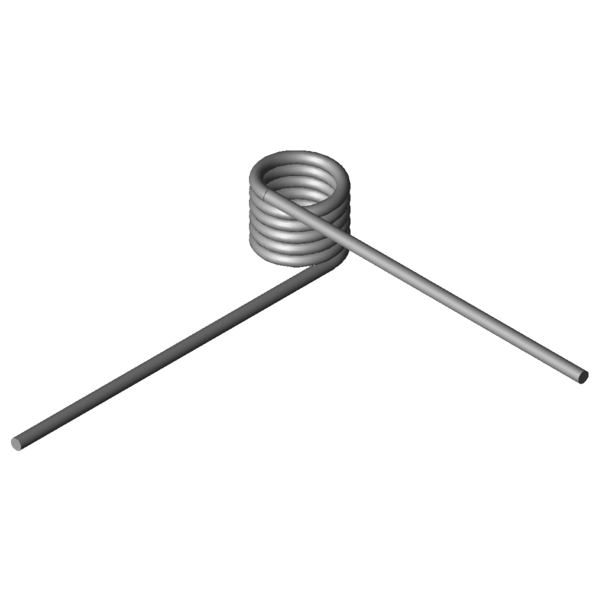

Home » Products » Torsion springs » t-16807r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° Scaled prices - Torsion spring T-16807R Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-16807R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-16807R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.25 mm Wire diameter Di 11.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 15.19 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 354.29 Nmm (+/-) Tolerance maximum torque Mn 1041.37 Nmm maximum torque alphan 63.68 degree maximum rotational angle nt 5.75 pc. total number of coils Ddmax 10.1 mm maximum possible mandrel diameter Ddmin 6.5 mm Min. possible mandrel diameter Ditol 0.3 mm (+/-) tolerance of inner coil diameter Weight 12.1739 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° force-path-calculation Torsion spring T-16807R Inquiry formular Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° Inquiry formular Torsion spring T-16807R Similar torsion springs to Torsion spring T-16807R: Stainless steel Ø 2.25 x 11.5 x 70 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16735R 12.6 12.25 289.84 162.26 1.4310 40.8 | 78.0 | 33.5 | 10.9 T-16747R 16.2 12.25 295.06 207.66 1.4310 36.5 | 71.3 | 29.5 | 8.7 T-18811R 8.9 14 429.24 105.78 1.4310 51.9 | 80.2 | 50.7 | 24.8 T-18836R 11.9 14 442.58 140.15 1.4310 50.0 | 86.6 | 44.0 | 19.3 T-18832R 11.9 7.6 442.58 67.77 1.4310 60.3 | 72.6 | 68.2 | 39.9 T-18861R 14.4 14 449.91 168.83 1.4310 45.9 | 81.0 | 40.5 | 16.3 T-18911R 10 15.75 554.97 95.83 1.4310 61.0 | 87.8 | 59.9 | 35.4 T-18907R 10 8.55 554.97 46.37 1.4310 70.2 | 74.4 | 63.1 | 73.2 T-18923R 13.5 15.75 572.76 128.24 1.4310 55.6 | 87.2 | 52.3 | 27.3 T-18935R 16 15.75 581.21 151.39 1.4310 51.7 | 82.8 | 48.9 | 23.5 T-19111R 11 17.5 798.72 99.77 1.4310 69.9 | 90.4 | 70.3 | 49.0 T-19107R 11 9.5 798.72 48.31 1.4310 85.9 | 82.4 | 76.3 | 98.9 T-19103R 11 7.5 798.72 35.45 1.4310 72.2 | 78.0 | 66.2 | 72.6 T-19136R 15 17.5 825.31 134.83 1.4310 61.6 | 84.1 | 63.2 | 37.4 T-16807R 11.5 15.19 1041.37 63.68 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16817R 15.5 15.19 1076.95 85.01 1.4310 84.9 | 91.4 | 85.8 | 77.5 T-19203R 10 16.88 1422.19 51.97 1.4310 75.4 | 89.0 | 77.4 | 59.8 T-19223R 13.5 16.88 1481.57 69.25 1.4310 82.0 | 88.4 | 81.1 | 76.4 T-16907R 11.5 18.9 1888.38 50.07 1.4310 65.7 | 86.9 | 66.9 | 43.4 T-16903R 11.5 10.5 1888.38 23.95 1.4310 50.1 | 83.2 | 46.4 | 20.7 T-16917R 15.5 18.9 1965.24 66.69 1.4310 69.3 | 78.3 | 74.2 | 55.5 T-19303R 12 20.25 2364.22 49.96 1.4310 59.3 | 81.9 | 61.3 | 34.6 T-17003R 12.5 12 2709.97 22.12 1.4310 43.5 | 80.4 | 36.6 | 13.3 T-17007R 12.5 21.6 2709.97 46.25 1.4310 53.7 | 77.5 | 55.5 | 27.9 Number of similar metal springs: 23 Customs tariff number: 73202089; Torsion spring T-16807R Country of origin: DE, German; Torsion spring T-16807R Product image - Torsion springs T-16807R QR-Code: Torsion spring T-16807R
