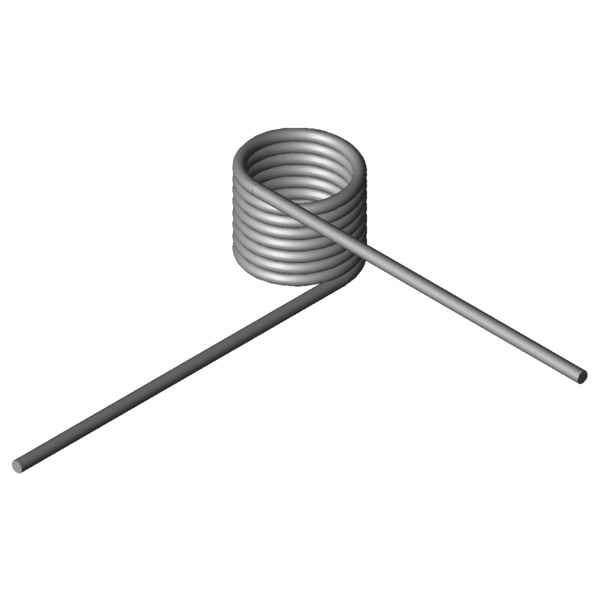

Home » Products » Torsion springs » t-19136r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° Scaled prices - Torsion spring T-19136R Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-19136R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19136R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2 mm Wire diameter Di 15 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 17.5 mm length of spring body Ls 65 mm leg length RH mm leverage Mntol 196.4 Nmm (+/-) Tolerance maximum torque Mn 825.31 Nmm maximum torque alphan 134.83 degree maximum rotational angle nt 7.75 pc. total number of coils Ddmax 13.5 mm maximum possible mandrel diameter Ddmin 12 mm Min. possible mandrel diameter Ditol 0.38 mm (+/-) tolerance of inner coil diameter Weight 13.4698 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° force-path-calculation Torsion spring T-19136R Inquiry formular Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° Inquiry formular Torsion spring T-19136R Similar torsion springs to Torsion spring T-19136R: Stainless steel Ø 2 x 15 x 65 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18736R 14.25 10.94 226.96 221.42 1.4310 44.8 | 73.3 | 44.2 | 16.7 T-16735R 12.6 12.25 289.84 162.26 1.4310 54.3 | 74.7 | 59.1 | 29.2 T-16747R 16.2 12.25 295.06 207.66 1.4310 50.4 | 77.5 | 50.3 | 23.2 T-18836R 11.9 14 442.58 140.15 1.4310 68.8 | 79.8 | 74.9 | 51.6 T-18861R 14.4 14 449.91 168.83 1.4310 65.4 | 85.3 | 67.2 | 43.5 T-18886R 18.4 14 457.84 214.72 1.4310 58.2 | 80.5 | 59.1 | 34.8 T-18911R 10 15.75 554.97 95.83 1.4310 82.0 | 82.2 | 69.2 | 94.6 T-18923R 13.5 15.75 572.76 128.24 1.4310 81.7 | 90.0 | 82.3 | 73.0 T-18935R 16 15.75 581.21 151.39 1.4310 77.9 | 91.3 | 79.7 | 62.7 T-18947R 20.5 15.75 591.67 193.08 1.4310 68.4 | 84.4 | 70.8 | 50.1 T-19111R 11 17.5 798.72 99.77 1.4310 84.3 | 91.1 | 85.4 | 76.5 T-19136R 15 17.5 825.31 134.83 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19161R 18 17.5 838.31 161.03 1.4310 90.2 | 94.4 | 91.1 | 85.0 T-16807R 11.5 15.19 1041.37 63.68 1.4310 61.6 | 84.1 | 63.2 | 37.4 T-16817R 15.5 15.19 1076.95 85.01 1.4310 69.7 | 90.8 | 69.8 | 48.3 T-16827R 18.5 15.19 1094.7 101.02 1.4310 62.5 | 85.4 | 63.6 | 38.4 T-19203R 10 16.88 1422.19 51.97 1.4310 50.6 | 81.0 | 48.3 | 22.4 T-19223R 13.5 16.88 1481.57 69.25 1.4310 47.8 | 78.4 | 45.7 | 19.5 T-19243R 17.5 16.88 1524.2 89.03 1.4310 52.7 | 84.2 | 49.7 | 24.3 T-16907R 11.5 18.9 1888.38 50.07 1.4310 45.6 | 80.2 | 40.4 | 16.2 T-16917R 15.5 18.9 1965.24 66.69 1.4310 43.1 | 77.1 | 38.0 | 14.1 T-16913R 15.5 10.5 1965.24 31.89 1.4310 39.6 | 76.1 | 32.8 | 9.9 T-16927R 19.5 18.9 2014.76 83.31 1.4310 47.2 | 82.9 | 41.5 | 17.2 T-19303R 12 20.25 2364.22 49.96 1.4310 42.2 | 77.7 | 36.0 | 12.9 T-19323R 16 20.25 2459.2 65.83 1.4310 39.6 | 74.2 | 33.4 | 11.1 T-17007R 12.5 21.6 2709.97 46.25 1.4310 39.5 | 75.6 | 32.4 | 10.4 T-17017R 17 21.6 2827.78 62.09 1.4310 37.3 | 72.5 | 30.2 | 9.1 Number of similar metal springs: 26 Customs tariff number: 73202089; Torsion spring T-19136R Country of origin: DE, German; Torsion spring T-19136R Product image - Torsion springs T-19136R QR-Code: Torsion spring T-19136R
