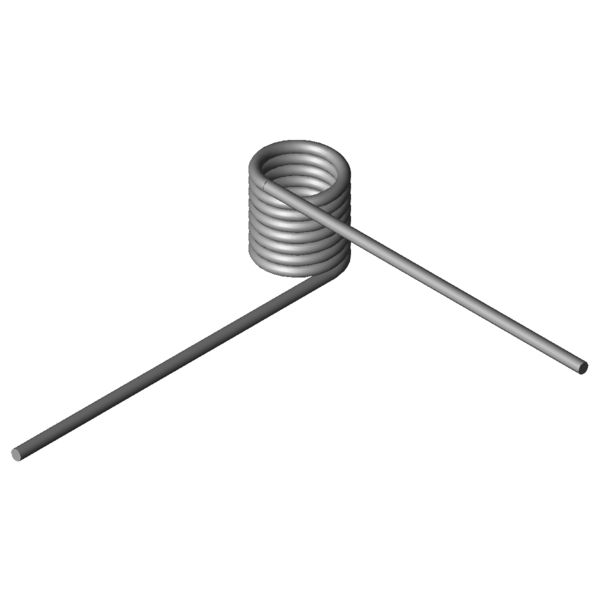

Home » Products » Torsion springs » t-19111r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° Scaled prices - Torsion spring T-19111R Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-19111R Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19111R Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Right - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2 mm Wire diameter Di 11 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 17.5 mm length of spring body Ls 65 mm leg length RH mm leverage Mntol 224.59 Nmm (+/-) Tolerance maximum torque Mn 798.72 Nmm maximum torque alphan 99.77 degree maximum rotational angle nt 7.75 pc. total number of coils Ddmax 9.9 mm maximum possible mandrel diameter Ddmin 8.8 mm Min. possible mandrel diameter Ditol 0.29 mm (+/-) tolerance of inner coil diameter Weight 11.0583 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° force-path-calculation Torsion spring T-19111R Inquiry formular Torsion spring T-19111R: Stainless steel Ø 2 x 11 x 65 mm / 270° Inquiry formular Torsion spring T-19111R Customs tariff number: 73202089; Torsion spring T-19111R Country of origin: DE, German; Torsion spring T-19111R Product image - Torsion springs T-19111R QR-Code: Torsion spring T-19111R
