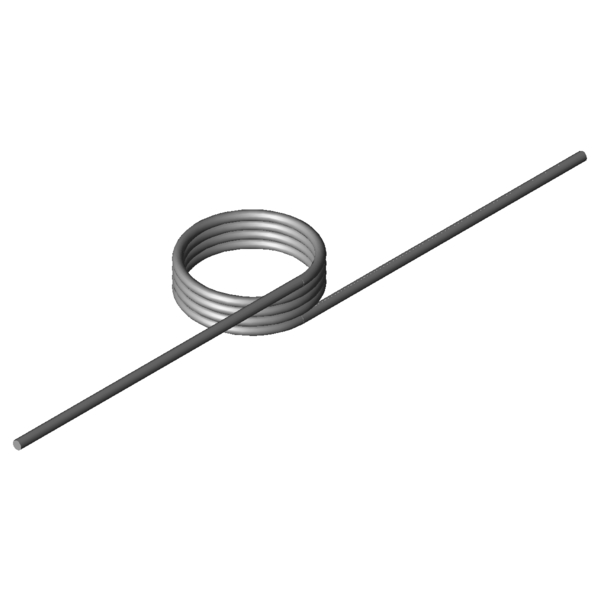

Home » Products » Torsion springs » t-19183l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° Scaled prices - Torsion spring T-19183L Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Torsion spring Buy Product image Torsion spring T-19183L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19183L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2 mm Wire diameter Di 23 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 10 mm length of spring body Ls 70 mm leg length RH mm leverage Mntol 189.81 Nmm (+/-) Tolerance maximum torque Mn 853.09 Nmm maximum torque alphan 105.72 degree maximum rotational angle nt 4 pc. total number of coils Ddmax 20.7 mm maximum possible mandrel diameter Ddmin 18.4 mm Min. possible mandrel diameter Ditol 0.56 mm (+/-) tolerance of inner coil diameter Weight 11.2477 g weight of one spring Price group K - price group Technical drawing Torsion spring Datasheet Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° force-path-calculation Torsion spring T-19183L Inquiry formular Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° Inquiry formular Torsion spring T-19183L Similar torsion springs to Torsion spring T-19183L: Stainless steel Ø 2 x 23 x 70 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18883L 18.4 8 457.84 110.77 1.4310 68.6 | 80.0 | 74.6 | 51.2 T-18932L 16 9 581.21 78.14 1.4310 82.1 | 83.2 | 71.0 | 92.2 T-18944L 20.5 9 591.67 99.65 1.4310 81.7 | 89.7 | 81.8 | 73.6 T-18940L 20.5 7.2 591.67 74.74 1.4310 83.9 | 83.7 | 70.0 | 98.1 T-19133L 15 10 825.31 69.54 1.4310 79.2 | 88.4 | 81.3 | 68.0 T-19158L 18 10 838.31 83.13 1.4310 87.1 | 92.8 | 88.4 | 80.0 T-19154L 18 8 838.31 62.37 1.4310 74.9 | 86.1 | 78.6 | 60.0 T-19183L 23 10 853.09 105.72 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16814L 15.5 9 1076.95 44.35 1.4310 58.6 | 82.1 | 60.6 | 33.2 T-16824L 18.5 9 1094.7 52.7 1.4310 63.1 | 86.4 | 63.9 | 38.8 T-16834L 23.5 9 1115.14 66.63 1.4310 70.1 | 92.3 | 69.8 | 48.2 T-16830L 23.5 6.75 1115.14 44.42 1.4310 58.7 | 84.8 | 59.3 | 32.1 T-19260L 22.5 7.5 1558.44 39.59 1.4310 50.3 | 84.3 | 46.1 | 20.5 T-16924L 19.5 11.2 2014.76 43.47 1.4310 47.0 | 81.8 | 41.7 | 17.4 T-16920L 19.5 8.4 2014.76 28.98 1.4310 42.2 | 80.1 | 34.9 | 11.6 T-16934L 24 11.2 2052.94 53.23 1.4310 50.8 | 85.5 | 46.0 | 20.9 T-16930L 24 8.4 2052.94 35.49 1.4310 45.1 | 83.8 | 37.6 | 13.9 T-19320L 16 9 2459.2 22.93 1.4310 37.0 | 75.4 | 28.2 | 7.5 T-19340L 21 9 2533.79 29.83 1.4310 41.0 | 82.7 | 30.9 | 9.5 T-19360L 26 9 2582.84 36.72 1.4310 42.4 | 81.7 | 33.9 | 11.5 T-17010L 17 9.6 2827.78 21.6 1.4310 36.3 | 77.5 | 25.3 | 6.2 T-17020L 22 9.6 2909.76 27.72 1.4310 40.1 | 84.7 | 27.8 | 7.7 T-17024L 22 12.8 2909.76 41.58 1.4310 41.5 | 78.8 | 34.3 | 11.5 Number of similar metal springs: 22 Customs tariff number: 73202089; Torsion spring T-19183L Country of origin: DE, German; Torsion spring T-19183L Product image - Torsion springs T-19183L QR-Code: Torsion spring T-19183L
