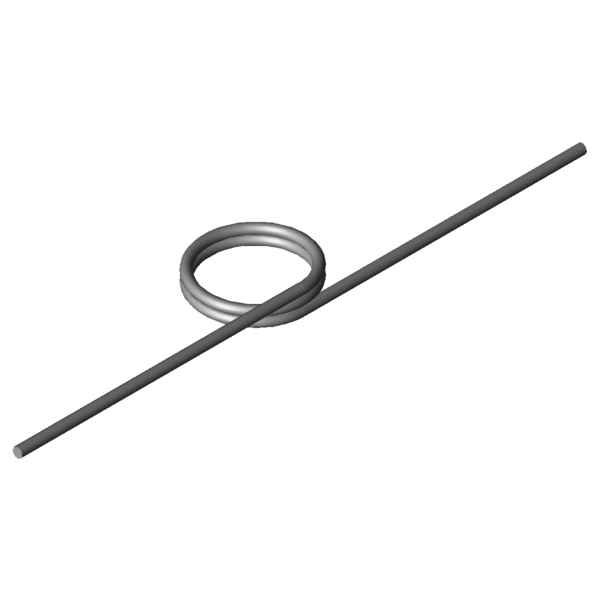

Home » Products » Torsion springs » t-19260l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Scaled prices - Torsion spring T-19260L Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19260L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19260L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 0 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 22.5 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 7.5 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 489.51 Nmm (+/-) Tolerance maximum torque Mn 1558.44 Nmm maximum torque alphan 39.59 degree maximum rotational angle nt 2 pc. total number of coils Ddmax 20.2 mm maximum possible mandrel diameter Ddmin 18 mm Min. possible mandrel diameter Ditol 0.54 mm (+/-) tolerance of inner coil diameter Weight 11.8841 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Datasheet download pdf file Metal spring characteristic Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Metal spring characteristic download pdf file CAD data Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° force-path-calculation Torsion spring T-19260L Inquiry formular Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Inquiry formular Torsion spring T-19260L Similar torsion springs to Torsion spring T-19260L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 0° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18940L 20.5 7.2 591.67 74.74 1.4310 50.6 | 86.4 | 45.5 | 20.1 T-19129L 15 8 825.31 52.18 1.4310 61.6 | 80.1 | 64.4 | 40.2 T-19154L 18 8 838.31 62.37 1.4310 59.1 | 84.6 | 58.6 | 34.1 T-19150L 18 6 838.31 41.52 1.4310 68.6 | 80.0 | 74.6 | 51.3 T-19179L 23 8 853.09 79.27 1.4310 56.7 | 90.5 | 52.3 | 27.3 T-19175L 23 6 853.09 52.81 1.4310 63.9 | 85.9 | 64.9 | 41.0 T-19183L 23 10 853.09 105.72 1.4310 50.3 | 84.3 | 46.1 | 20.5 T-16810L 15.5 6.75 1076.95 29.57 1.4310 82.5 | 83.0 | 71.9 | 92.5 T-16820L 18.5 6.75 1094.7 35.14 1.4310 82.0 | 87.4 | 79.5 | 79.1 T-16824L 18.5 9 1094.7 52.7 1.4310 70.2 | 85.2 | 72.7 | 52.8 T-16830L 23.5 6.75 1115.14 44.42 1.4310 78.7 | 91.9 | 80.3 | 63.8 T-16834L 23.5 9 1115.14 66.63 1.4310 65.9 | 89.7 | 65.5 | 42.5 T-19220L 13.5 7.5 1481.57 24.1 1.4310 76.2 | 86.7 | 78.0 | 64.0 T-19240L 17.5 7.5 1524.2 30.99 1.4310 86.9 | 92.6 | 88.0 | 80.0 T-19260L 22.5 7.5 1558.44 39.59 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-16910L 15.5 8.4 1965.24 23.2 1.4310 66.0 | 82.5 | 69.0 | 46.5 T-16920L 19.5 8.4 2014.76 28.98 1.4310 73.4 | 88.4 | 75.3 | 56.6 T-16930L 24 8.4 2052.94 35.49 1.4310 80.5 | 90.8 | 82.8 | 68.1 T-19340L 21 9 2533.79 29.83 1.4310 67.1 | 86.7 | 68.4 | 46.3 T-19360L 26 9 2582.84 36.72 1.4310 72.3 | 84.4 | 76.5 | 56.0 T-17020L 22 9.6 2909.76 27.72 1.4310 61.3 | 84.7 | 61.8 | 37.5 T-17030L 27 9.6 2964.79 33.85 1.4310 64.6 | 79.9 | 69.0 | 44.9 T-19440L 22.4 10.8 4240.2 26.01 1.4310 51.6 | 79.5 | 51.2 | 24.1 Number of similar metal springs: 22 Customs tariff number: 73202089; Torsion spring T-19260L Country of origin: DE, German; Torsion spring T-19260L Product image - Torsion springs T-19260L QR-Code: Torsion spring T-19260L
