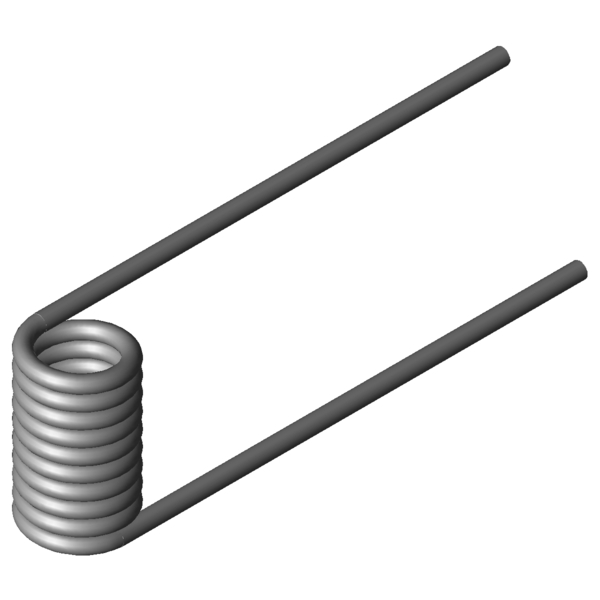

Home » Products » Torsion springs » t-19206l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° Scaled prices - Torsion spring T-19206L Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Torsion spring Buy Product image Torsion spring T-19206L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19206L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 2.5 mm Wire diameter Di 10 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 26.25 mm length of spring body Ls 75 mm leg length RH mm leverage Mntol 476.29 Nmm (+/-) Tolerance maximum torque Mn 1422.19 Nmm maximum torque alphan 85.84 degree maximum rotational angle nt 9.5 pc. total number of coils Ddmax 9 mm maximum possible mandrel diameter Ddmin 8 mm Min. possible mandrel diameter Ditol 0.27 mm (+/-) tolerance of inner coil diameter Weight 20.2407 g weight of one spring Price group L - price group Technical drawing Torsion spring Datasheet Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° force-path-calculation Torsion spring T-19206L Inquiry formular Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° Inquiry formular Torsion spring T-19206L Similar torsion springs to Torsion spring T-19206L: Stainless steel Ø 2.5 x 10 x 75 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-16722L 10.4 10.5 285.09 112.82 1.4310 42.5 | 64.1 | 48.1 | 15.3 T-16718L 10.4 6.3 285.09 60.75 1.4310 44.2 | 58.7 | 45.4 | 28.3 T-18810L 8.9 12 429.24 88.69 1.4310 53.0 | 66.2 | 63.5 | 29.2 T-18806L 8.9 7.2 429.24 47.76 1.4310 52.4 | 60.1 | 42.9 | 54.2 T-18835L 11.9 12 441.52 117.28 1.4310 46.5 | 64.6 | 52.1 | 22.7 T-18910L 10 13.5 554.97 80.37 1.4310 60.8 | 74.5 | 66.3 | 41.7 T-18906L 10 8.1 554.97 43.28 1.4310 63.2 | 67.6 | 44.7 | 77.4 T-18902L 10 6.3 554.97 30.91 1.4310 65.0 | 65.3 | 37.5 | 92.3 T-18922L 13.5 13.5 572.76 107.55 1.4310 52.7 | 65.8 | 60.0 | 32.1 T-19110L 11 15 798.72 83.67 1.4310 70.2 | 76.0 | 76.8 | 57.6 T-19106L 11 9 798.72 45.07 1.4310 72.1 | 68.4 | 54.3 | 93.5 T-19102L 11 7 798.72 32.21 1.4310 59.8 | 65.9 | 46.8 | 66.8 T-16806L 11.5 12.38 1041.37 49.83 1.4310 73.2 | 74.7 | 65.6 | 79.3 T-16802L 11.5 7.88 1041.37 27.69 1.4310 55.3 | 69.0 | 52.7 | 44.1 T-19206L 10 26.25 1422.19 85.84 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19226L 13.5 26.25 1481.57 105.66 1.4310 88.2 | 91.4 | 88.6 | 84.6 T-19222L 13.5 13.75 1481.57 54.23 1.4310 71.9 | 75.5 | 79.6 | 60.6 T-19246L 17.5 26.25 1524.2 147.07 1.4310 74.7 | 85.7 | 75.8 | 62.6 T-16906L 11.5 15.4 1888.38 39.19 1.4310 57.7 | 78.3 | 60.5 | 34.4 T-16902L 11.5 9.8 1888.38 21.77 1.4310 46.9 | 71.2 | 50.3 | 19.1 T-19306L 12 31.5 2364.22 82.57 1.4310 73.1 | 83.3 | 78.2 | 57.9 T-19302L 12 16.5 2364.22 39.15 1.4310 52.3 | 76.5 | 52.9 | 27.4 T-19326L 16 31.5 2459.2 108.73 1.4310 72.7 | 76.4 | 68.4 | 73.3 T-17006L 12.5 17.6 2709.97 36.19 1.4310 48.2 | 75.1 | 47.3 | 22.1 T-17002L 12.5 11.2 2709.97 20.11 1.4310 39.1 | 66.9 | 38.0 | 12.3 T-19402L 12.4 19.8 3909.65 33.31 1.4310 42.3 | 75.2 | 37.6 | 14.1 T-19406L 12.4 37.8 3909.65 70.3 1.4310 54.0 | 73.2 | 59.1 | 29.8 Number of similar metal springs: 26 Customs tariff number: 73202089; Torsion spring T-19206L Country of origin: DE, German; Torsion spring T-19206L Product image - Torsion springs T-19206L QR-Code: Torsion spring T-19206L
