Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

Scaled prices - Torsion spring T-19262L

Quantity Single price [EUR]
1 5.4200 EUR
2 3.8200 EUR
3 3.6400 EUR
7 2.6600 EUR
17 1.3800 EUR
37 1.0200 EUR
75 0.8900 EUR
125 0.5823 EUR
175 0.5445 EUR
250 0.4945 EUR
350 0.4610 EUR
450 0.4169 EUR

Torsion spring Buy

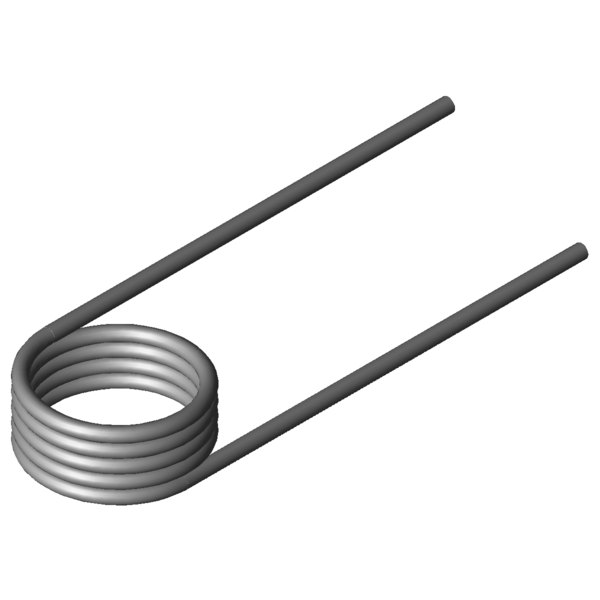

Product image Torsion spring T-19262L
Product image Torsion spring T-19262L
Quantity: Add to shopping cart

Technical Data - Torsion spring T-19262L

Formula symbols Value Unit Description
Material 1.4310 - Type of material
Coiling direction Left - Coiling direction
Leg position 180 degree Leg position when relaxed
alpha1 degree prestressed rotational angle
F1 N prestressed spring force
M1 Nmm torque by angle alpha1
alpha2 degree loaded rotational angle
F2 N loaded spring force
M2 Nmm torque by angle alpha2
alphah degree working rotational angle
d 2.5 mm Wire diameter
Di 22.5 mm inner coil diameter
Dd mm diameter of mandrel
LsH mm leg length of the lever leg
LsR mm leg length of the recumbent leg
Lk0 13.75 mm length of spring body
Ls 75 mm leg length
RH mm leverage
Mntol 402.93 Nmm (+/-) Tolerance maximum torque
Mn 1558.44 Nmm maximum torque
alphan 89.01 degree maximum rotational angle
nt 4.5 pc. total number of coils
Ddmax 20.2 mm maximum possible mandrel diameter
Ddmin 18 mm Min. possible mandrel diameter
Ditol 0.54 mm (+/-) tolerance of inner coil diameter
Weight 19.481 g weight of one spring
Price group L - price group
Technical drawing Torsion spring
Technical drawing Torsion spring

Datasheet Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

Datasheet download pdf file

Metal spring characteristic Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

Metal spring characteristic download pdf file

CAD data Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

force-path-calculation Torsion spring T-19262L

Inquiry formular Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

Inquiry formular Torsion spring T-19262L

Similar torsion springs to Torsion spring T-19262L: Stainless steel Ø 2.5 x 22.5 x 75 mm / 180°

Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar.

Similar Torsion Springs with varying levels of spring force

To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %
Overall | Geometrie | Load | Stiffness
T-18885L 18.4 12 457.84 180.04 1.4310 43.9 | 77.7 | 39.4 | 14.5
T-18922L 13.5 13.5 572.76 107.55 1.4310 55.6 | 76.7 | 59.8 | 30.4
T-18934L 16 13.5 581.21 126.97 1.4310 53.4 | 80.4 | 53.7 | 26.1
T-18946L 20.5 13.5 591.67 161.94 1.4310 51.5 | 87.1 | 46.5 | 20.9
T-19135L 15 15 825.31 113.04 1.4310 62.3 | 79.4 | 65.8 | 41.7
T-19160L 18 15 838.31 135.12 1.4310 59.7 | 83.9 | 59.8 | 35.4
T-19185L 23 15 853.09 171.81 1.4310 57.2 | 89.8 | 53.3 | 28.4
T-19181L 23 9 853.09 92.54 1.4310 69.7 | 81.1 | 75.5 | 52.7
T-16816L 15.5 12.38 1076.95 66.53 1.4310 40.3 | 68.3 | 38.8 | 13.8
T-16826L 18.5 12.38 1094.7 79.06 1.4310 82.0 | 87.4 | 79.5 | 79.1
T-16836L 23.5 12.38 1115.14 99.94 1.4310 78.7 | 91.9 | 80.3 | 63.7
T-16832L 23.5 7.88 1115.14 55.52 1.4310 78.4 | 81.0 | 67.0 | 87.2
T-19222L 13.5 13.75 1481.57 54.23 1.4310 49.9 | 76.9 | 49.7 | 23.3
T-19242L 17.5 13.75 1524.2 69.63 1.4310 86.9 | 92.6 | 88.0 | 80.0
T-19262L 22.5 13.75 1558.44 89.01 1.4310 100.0 | 100.0 | 100.0 | 100.0
T-16916L 15.5 15.4 1965.24 52.19 1.4310 55.9 | 78.5 | 57.0 | 32.1
T-16926L 19.5 15.4 2014.76 65.2 1.4310 73.5 | 88.4 | 75.3 | 56.7
T-16922L 19.5 9.8 2014.76 36.22 1.4310 57.6 | 82.4 | 59.0 | 31.5
T-16936L 24 15.4 2052.94 79.84 1.4310 80.6 | 90.8 | 82.8 | 68.1
T-16932L 24 9.8 2052.94 44.36 1.4310 61.8 | 84.8 | 62.9 | 37.8
T-19342L 21 16.5 2533.79 67.02 1.4310 67.1 | 86.7 | 68.4 | 46.3
T-19362L 26 16.5 2582.84 82.51 1.4310 48.1 | 77.1 | 46.7 | 20.4
T-17012L 17 11.2 2827.78 26.99 1.4310 45.9 | 78.4 | 42.7 | 16.7
T-17022L 22 11.2 2909.76 34.65 1.4310 51.0 | 85.8 | 46.2 | 20.8
T-17026L 22 17.6 2909.76 62.37 1.4310 55.0 | 76.2 | 58.4 | 30.4
T-17032L 27 11.2 2964.79 42.31 1.4310 52.0 | 81.0 | 50.0 | 25.0
T-17036L 27 17.6 2964.79 76.16 1.4310 42.9 | 86.6 | 32.0 | 10.2
T-19442L 22.4 19.8 4240.2 58.58 1.4310 47.5 | 80.1 | 43.6 | 18.9
T-19702L 20.5 15.75 7210.54 21.78 1.4310 82.5 | 84.4 | 76.5 | 86.6
T-19711L 25.5 15.75 7413.47 26.88 1.4310 82.8 | 90.4 | 85.9 | 72.2
Number of similar metal springs: 29

Customs tariff number: 73202089; Torsion spring T-19262L

Country of origin: DE, German; Torsion spring T-19262L
