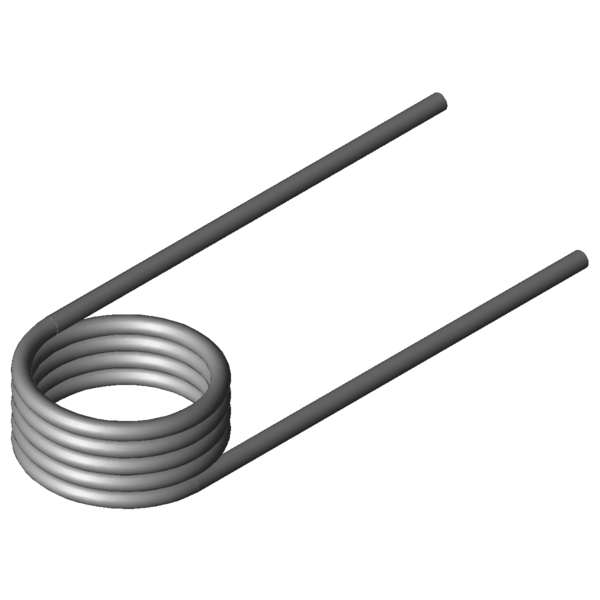

Home » Products » Torsion springs » t-19362l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° Scaled prices - Torsion spring T-19362L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19362L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19362L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 180 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3 mm Wire diameter Di 26 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 16.5 mm length of spring body Ls 80 mm leg length RH mm leverage Mntol 708.17 Nmm (+/-) Tolerance maximum torque Mn 2582.84 Nmm maximum torque alphan 82.51 degree maximum rotational angle nt 4.5 pc. total number of coils Ddmax 23.4 mm maximum possible mandrel diameter Ddmin 20.8 mm Min. possible mandrel diameter Ditol 0.6 mm (+/-) tolerance of inner coil diameter Weight 31.7606 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° Datasheet download pdf file Metal spring characteristic Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° Metal spring characteristic download pdf file CAD data Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° force-path-calculation Torsion spring T-19362L Inquiry formular Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° Inquiry formular Torsion spring T-19362L Similar torsion springs to Torsion spring T-19362L: Stainless steel Ø 3 x 26 x 80 mm / 180° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-18946L 20.5 13.5 591.67 161.94 1.4310 40.7 | 73.6 | 36.9 | 11.7 T-19135L 15 15 825.31 113.04 1.4310 49.2 | 71.8 | 52.5 | 23.3 T-19160L 18 15 838.31 135.12 1.4310 47.4 | 75.6 | 46.8 | 19.8 T-19185L 23 15 853.09 171.81 1.4310 46.1 | 82.0 | 40.5 | 15.9 T-16836L 23.5 12.38 1115.14 99.94 1.4310 59.6 | 80.1 | 62.9 | 35.6 T-19242L 17.5 13.75 1524.2 69.63 1.4310 73.2 | 78.0 | 71.7 | 69.9 T-19262L 22.5 13.75 1558.44 89.01 1.4310 72.3 | 84.4 | 76.5 | 55.9 T-16916L 15.5 15.4 1965.24 52.19 1.4310 78.3 | 82.1 | 69.7 | 83.1 T-16926L 19.5 15.4 2014.76 65.2 1.4310 88.2 | 87.2 | 78.5 | 98.7 T-16936L 24 15.4 2052.94 79.84 1.4310 87.8 | 93.0 | 88.1 | 82.1 T-16932L 24 9.8 2052.94 44.36 1.4310 72.0 | 81.7 | 66.6 | 67.6 T-19322L 16 16.5 2459.2 51.53 1.4310 77.2 | 87.2 | 78.8 | 65.6 T-19342L 21 16.5 2533.79 67.02 1.4310 88.7 | 93.6 | 89.7 | 82.8 T-19362L 26 16.5 2582.84 82.51 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-17016L 17 17.6 2827.78 48.59 1.4310 71.1 | 84.3 | 75.1 | 53.8 T-17026L 22 17.6 2909.76 62.37 1.4310 80.0 | 90.7 | 82.2 | 67.1 T-17022L 22 11.2 2909.76 34.65 1.4310 61.6 | 82.1 | 65.4 | 37.3 T-17036L 27 17.6 2964.79 76.16 1.4310 88.2 | 94.6 | 89.7 | 80.4 T-17032L 27 11.2 2964.79 42.31 1.4310 66.6 | 86.0 | 69.2 | 44.7 T-19442L 22.4 19.8 4240.2 58.58 1.4310 64.5 | 84.3 | 66.0 | 43.2 T-19462L 27.4 19.8 4326.15 71.27 1.4310 70.6 | 87.2 | 73.0 | 51.6 T-19522L 22.5 22 5673.53 52.48 1.4310 54.1 | 78.8 | 54.6 | 29.0 T-19542L 27.5 22 5798.12 63.67 1.4310 58.9 | 81.5 | 60.9 | 34.4 T-19702L 20.5 15.75 7210.54 21.78 1.4310 40.3 | 80.3 | 31.1 | 9.5 T-19711L 25.5 15.75 7413.47 26.88 1.4310 43.9 | 86.7 | 33.7 | 11.4 T-19715L 25.5 24.75 7413.47 48.38 1.4310 48.1 | 77.1 | 46.7 | 20.4 T-19720L 30.5 15.75 7558.94 31.97 1.4310 44.1 | 82.5 | 36.5 | 13.2 T-19729L 35.5 15.75 7668.33 37.07 1.4310 44.3 | 78.5 | 39.3 | 15.1 T-19803L 20 17.5 9706.06 19.24 1.4310 36.1 | 77.1 | 25.0 | 6.2 Number of similar metal springs: 28 Customs tariff number: 73202089; Torsion spring T-19362L Country of origin: DE, German; Torsion spring T-19362L Product image - Torsion springs T-19362L QR-Code: Torsion spring T-19362L
