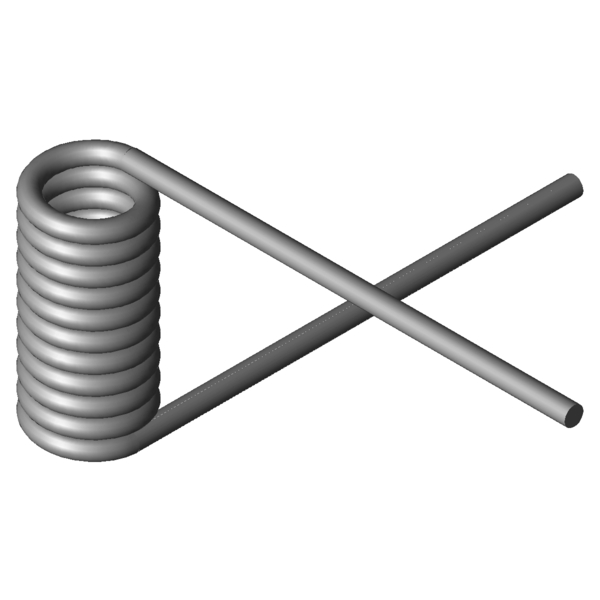

Home » Products » Torsion springs » t-19407l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° Scaled prices - Torsion spring T-19407L Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Torsion spring Buy Product image Torsion spring T-19407L Quantity:Quantity: Add to shopping cart Technical Data - Torsion spring T-19407L Formula symbols Value Unit Description Material 1.4310 - Type of material Coiling direction Left - Coiling direction Leg position 270 degree Leg position when relaxed alpha1 degree prestressed rotational angle F1 N prestressed spring force M1 Nmm torque by angle alpha1 alpha2 degree loaded rotational angle F2 N loaded spring force M2 Nmm torque by angle alpha2 alphah degree working rotational angle d 3.6 mm Wire diameter Di 12.4 mm inner coil diameter Dd mm diameter of mandrel LsH mm leg length of the lever leg LsR mm leg length of the recumbent leg Lk0 42.3 mm length of spring body Ls 85 mm leg length RH mm leverage Mntol 1464.36 Nmm (+/-) Tolerance maximum torque Mn 3909.65 Nmm maximum torque alphan 79.54 degree maximum rotational angle nt 10.75 pc. total number of coils Ddmax 11.1 mm maximum possible mandrel diameter Ddmin 9.9 mm Min. possible mandrel diameter Ditol 0.32 mm (+/-) tolerance of inner coil diameter Weight 56.9979 g weight of one spring Price group M - price group Technical drawing Torsion spring Datasheet Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° Datasheet download pdf file Metal spring characteristic Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° Metal spring characteristic download pdf file CAD data Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° force-path-calculation Torsion spring T-19407L Inquiry formular Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° Inquiry formular Torsion spring T-19407L Similar torsion springs to Torsion spring T-19407L: Stainless steel Ø 3.6 x 12.4 x 85 mm / 270° Below you will find similar Torsion Springs that differ from the current spring in terms of dimensions and spring force. The spring highlighted in green is the most similar. Similar Torsion Springs with varying levels of spring force To compare forces, enter the applied angle of rotation [alpha2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. alpha2 (degree) loaded rotational angle Priority Di (mm) inner coil diameter Lk0 (mm) length of spring body Mn (Nmm) maximum torque article number Di (mm) Lk0 (mm) Mn (Nmm) alphan (degree) Material Similarity in %Overall | Geometrie | Load | Stiffness T-19207L 10 29.38 1422.19 97.15 1.4310 54.0 | 73.2 | 59.1 | 29.8 T-19203L 10 16.88 1422.19 51.97 1.4310 56.6 | 63.3 | 50.9 | 55.7 T-19227L 13.5 29.38 1481.57 129.5 1.4310 50.0 | 76.9 | 49.7 | 23.3 T-19223L 13.5 16.88 1481.57 69.25 1.4310 57.7 | 67.1 | 62.5 | 43.5 T-19247L 17.5 29.38 1524.2 166.38 1.4310 44.0 | 69.9 | 43.4 | 18.6 T-16907L 11.5 18.9 1888.38 50.07 1.4310 68.0 | 71.7 | 55.6 | 76.7 T-16903L 11.5 10.5 1888.38 23.95 1.4310 55.6 | 65.1 | 39.2 | 62.3 T-16917L 15.5 18.9 1965.24 66.69 1.4310 64.8 | 67.5 | 67.1 | 60.0 T-19307L 12 35.25 2364.22 93.47 1.4310 70.7 | 87.8 | 72.8 | 51.5 T-19303L 12 20.25 2364.22 49.96 1.4310 78.0 | 76.0 | 61.6 | 96.3 T-19327L 16 35.25 2459.2 123.03 1.4310 61.9 | 81.4 | 63.8 | 40.7 T-19323L 16 20.25 2459.2 65.83 1.4310 72.8 | 69.6 | 72.8 | 76.0 T-17007L 12.5 21.6 2709.97 46.25 1.4310 75.8 | 79.7 | 63.7 | 83.9 T-17003L 12.5 12 2709.97 22.12 1.4310 53.6 | 72.2 | 48.6 | 40.1 T-19407L 12.4 42.3 3909.65 79.54 1.4310 100.0 | 100.0 | 100.0 | 100.0 T-19427L 17.4 42.3 4113.81 109.79 1.4310 83.5 | 90.4 | 83.7 | 76.2 T-19423L 17.4 24.3 4113.81 58.73 1.4310 76.9 | 76.2 | 84.4 | 70.2 T-19447L 22.4 42.3 4240.2 139.97 1.4310 73.8 | 85.1 | 74.5 | 61.6 T-19507L 17.5 47 5491.74 98.45 1.4310 82.6 | 83.6 | 76.0 | 88.1 T-19503L 17.5 27 5491.74 52.66 1.4310 63.6 | 74.9 | 68.7 | 47.1 T-19808L 20 33.75 9706.06 44.25 1.4310 47.2 | 71.3 | 48.0 | 22.4 Number of similar metal springs: 20 Customs tariff number: 73202089; Torsion spring T-19407L Country of origin: DE, German; Torsion spring T-19407L Product image - Torsion springs T-19407L QR-Code: Torsion spring T-19407L
