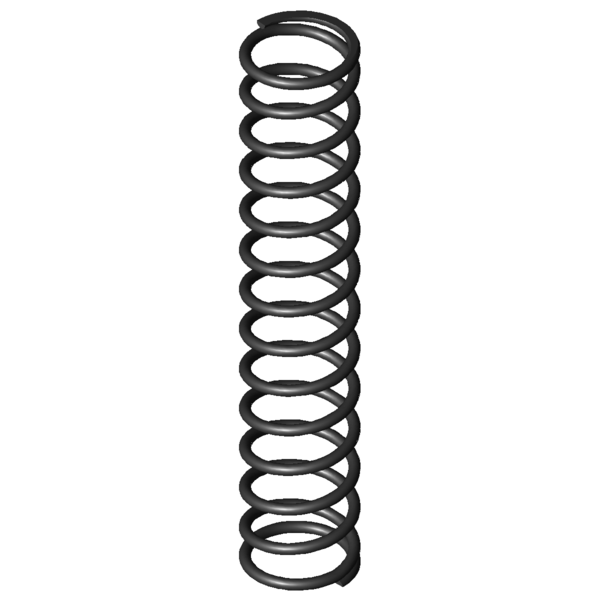

Home » Products » Compression springs » d-075e Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm Scaled prices - Compression spring D-075E Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-075E Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-075E Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 4.5 mm Mean coil diameter De 5 mm Outer coil diameter Dd 3.4 mm maximum diameter of mandrel Dh 5.6 mm minimum diameter of bush L0 26 mm unstressed spring length Lk 14.16 mm buckling length Fn 9.707 N maximum force in static use Ln 8.63 mm Minimum length in static use sn 17.37 mm Maximum spring deflection in static use Fndyn 9.324 N maximum force in dynamic use Lndyn 9.32 mm Minimum length in dynamic use shdyn 5.41 mm Maximum stroke in dynamic use S 2.04 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.559 N/mm Spring rate Weight 0.3182 g weight of one spring Fntol 0.65 N (+/-) tolerance of maximum force in static use Fndtol 0.65 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.91 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm Datasheet download pdf file Metal spring characteristic Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm Metal spring characteristic download pdf file CAD data Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm force-path-calculation Compression spring D-075E Inquiry formular Compression spring D-075E Spring steel Ø 0.5 x 4.5 x 26 mm Inquiry formular Compression spring D-075E Customs tariff number: 73202081; Compression spring D-075E Country of origin: DE, German; Compression spring D-075E Product image - Compression springs D-075E QR-Code: Compression spring D-075E
