Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

Scaled prices - Compression spring D-136

Quantity	Single price [EUR]
1	4.8100 EUR
2	3.3900 EUR
3	3.2300 EUR
7	1.8100 EUR
17	0.7800 EUR
37	0.4700 EUR
75	0.2700 EUR
125	0.2226 EUR
175	0.1689 EUR
250	0.1503 EUR
350	0.1199 EUR
450	0.1011 EUR

Compression spring Buy

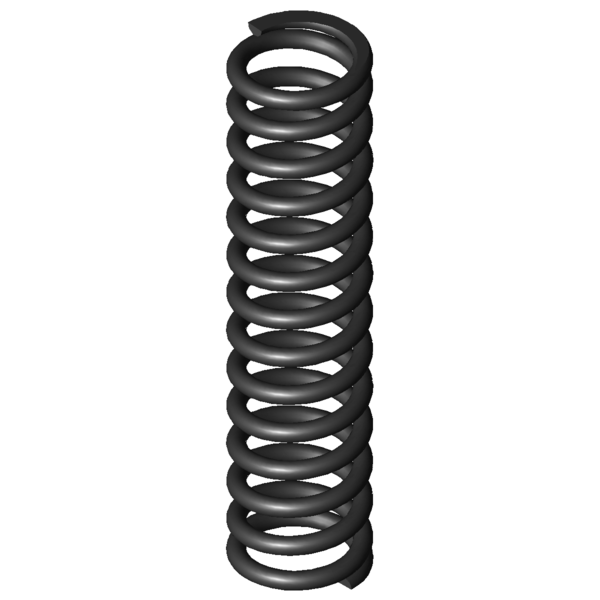

Product image Compression spring D-136

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-136

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.8	mm	Wire diameter
Di		mm	Inner coil diameter
D	5	mm	Mean coil diameter
De	5.8	mm	Outer coil diameter
Dd	3.8	mm	maximum diameter of mandrel
Dh	6.3	mm	minimum diameter of bush
L0	24.5	mm	unstressed spring length
Lk		mm	buckling length
Fn	30.215	N	maximum force in static use
Ln	13.19	mm	Minimum length in static use
sn	11.31	mm	Maximum spring deflection in static use
Fndyn	28.068	N	maximum force in dynamic use
Lndyn	13.99	mm	Minimum length in dynamic use
shdyn	5.95	mm	Maximum stroke in dynamic use
S	1.896	mm	pitch of spring
n	12.5	pc.	number of active coils
nt		pc.	total number of coils
R	2.671	N/mm	Spring rate
Weight	0.905	g	weight of one spring
Fntol	2.45	N	(+/-) tolerance of maximum force in static use
Fndtol	2.42	N	(+/-) tolerance of maximum dynamic force
Detol	0.2	mm	(+/-) tolerances of outer coil diameter
L0tol	0.75	mm	(+/-) tolerance of unstressed spring length
Price group	C	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

force-path-calculation Compression spring D-136

Inquiry formular Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

Inquiry formular Compression spring D-136

Similar compression springs to Compression spring D-136 Spring steel Ø 0.8 x 5 x 24.5 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-136	EN 10270-1	0.8	5.8	24.5	30.215	13.19	11.31	12.5	2.671	100.0 \| 100.0 \| 100.0 \| 100.0
VD-136	1.4310	0.8	5.8	24.5	25.952	13.19	11.31	12.5	2.294	92.9 \| 100.0 \| 92.9 \| 85.9
VD-136A	1.4310	0.8	5.8	24.5	8.916	18.75	5.75	18.5	1.55	66.1 \| 100.0 \| 40.2 \| 58.0

Number of similar metal springs: 3

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-068A-13	6	19.9	0.364	EN 10270-1	4.436	7.73	12.17	49.2 \| 80.1 \| 53.8 \| 13.6
D-090U-23	7	24	0.403	EN 10270-1	5.347	10.73	13.27	50.6 \| 85.3 \| 51.5 \| 15.1
D-075	5.3	28	0.523	EN 10270-1	10.567	7.81	20.19	48.5 \| 80.5 \| 45.5 \| 19.6
D-072A	5.5	27.1	0.536	EN 10270-1	10.811	6.94	20.16	49.5 \| 82.6 \| 45.9 \| 20.1
D-075E	5	26	0.559	EN 10270-1	9.707	8.63	17.37	50.2 \| 81.0 \| 48.6 \| 20.9
D-072	5.5	20.5	0.599	EN 10270-1	8.502	6.31	14.19	52.2 \| 80.3 \| 53.9 \| 22.4
D-069	5.6	25	0.6	EN 10270-1	11.385	6.02	18.98	52.3 \| 85.7 \| 48.6 \| 22.5
D-090L	6	29.2	0.606	EN 10270-1	13.083	7.62	21.58	51.2 \| 83.1 \| 47.9 \| 22.7
D-104A	5.63	26	0.694	EN 10270-1	7.508	15.18	10.82	58.7 \| 90.0 \| 60.3 \| 26.0
D-090M-01	5	23	0.846	EN 10270-1	11.563	9.34	13.66	58.4 \| 82.9 \| 60.5 \| 31.7
D-100A-08	6.4	25	0.983	EN 10270-1	16.885	7.82	17.18	62.3 \| 89.1 \| 60.9 \| 36.8
D-104	5.63	26	1.027	EN 10270-1	15.749	10.67	15.33	63.8 \| 90.0 \| 63.0 \| 38.5
D-136A	5.8	24.5	1.804	EN 10270-1	10.381	18.75	5.75	70.1 \| 100.0 \| 42.6 \| 67.6
D-117H-51	6	27	2.122	EN 10270-1	34.493	10.74	16.26	83.9 \| 93.7 \| 78.6 \| 79.4
D-136	5.8	24.5	2.671	EN 10270-1	30.215	13.19	11.31	100.0 \| 100.0 \| 100.0 \| 100.0
D-132A-12	6.4	21.5	2.795	EN 10270-1	33.293	9.59	11.91	93.7 \| 92.8 \| 92.9 \| 95.6
D-144C	6.3	22.2	4.468	EN 10270-1	47.065	11.67	10.53	76.3 \| 90.5 \| 78.7 \| 59.8
D-173B	7	24.5	4.965	EN 10270-1	57.277	12.96	11.54	72.3 \| 87.6 \| 75.4 \| 53.8
D-173G	6.3	28	5.069	EN 10270-1	53.634	17.42	10.58	71.4 \| 86.5 \| 74.9 \| 52.7
D-145	5.4	24	5.642	EN 10270-1	50.167	15.11	8.89	70.0 \| 93.3 \| 69.4 \| 47.3
D-178B	5.8	30	6.353	EN 10270-1	73.37	18.45	11.55	66.3 \| 87.2 \| 69.6 \| 42.1
D-173C-10	6.5	24	6.445	EN 10270-1	71.667	12.88	11.12	66.9 \| 89.1 \| 70.2 \| 41.5
D-177	6	24	6.52	EN 10270-1	50.734	16.22	7.78	65.6 \| 91.5 \| 64.2 \| 41.0
D-145D	4.5	24.36	9.243	EN 10270-1	63.592	17.48	6.88	57.2 \| 88.6 \| 54.2 \| 28.9
D-179	5.1	23	11.37	EN 10270-1	72.454	16.63	6.37	53.3 \| 87.3 \| 49.0 \| 23.5
D-205A-10	7	25	13.771	EN 10270-1	124.778	15.94	9.06	51.1 \| 81.6 \| 52.2 \| 19.4
D-180X	6	20.5	20.107	EN 10270-1	106.293	15.21	5.29	44.4 \| 82.3 \| 37.6 \| 13.3
D-207H	7	23.8	23.458	EN 10270-1	141.94	17.75	6.05	42.6 \| 79.0 \| 37.4 \| 11.4

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-136

Country of origin: DE, German; Compression spring D-136

Product image - Compression springs D-136

QR-Code: Compression spring D-136

QR-Code - Compression springs - D-136 | https://www.federnshop.com/en/products/compression_springs/d-136.html
