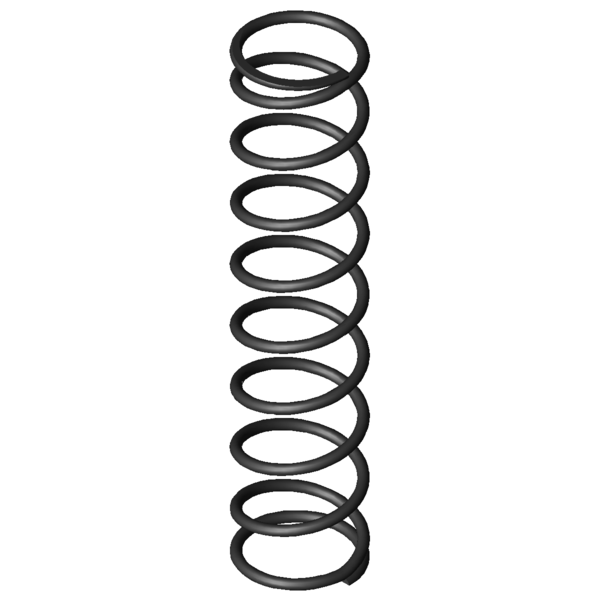

Home » Products » Compression springs » d-069 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm Scaled prices - Compression spring D-069 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-069 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-069 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 5.1 mm Mean coil diameter De 5.6 mm Outer coil diameter Dd 4.2 mm maximum diameter of mandrel Dh 6.2 mm minimum diameter of bush L0 25 mm unstressed spring length Lk mm buckling length Fn 11.385 N maximum force in static use Ln 6.02 mm Minimum length in static use sn 18.98 mm Maximum spring deflection in static use Fndyn 11.076 N maximum force in dynamic use Lndyn 6.54 mm Minimum length in dynamic use shdyn 3.05 mm Maximum stroke in dynamic use S 3.063 mm pitch of spring n 8 pc. number of active coils nt pc. total number of coils R 0.6 N/mm Spring rate Weight 0.2487 g weight of one spring Fntol 0.66 N (+/-) tolerance of maximum force in static use Fndtol 0.65 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.81 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm Datasheet download pdf file Metal spring characteristic Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm Metal spring characteristic download pdf file CAD data Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm force-path-calculation Compression spring D-069 Inquiry formular Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm Inquiry formular Compression spring D-069 Similar compression springs to Compression spring D-069 Spring steel Ø 0.5 x 5.1 x 25 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-069 EN 10270-1 0.5 5.6 25 11.385 6.02 18.98 8 0.6 100.0 | 100.0 | 100.0 | 100.0 VD-069 1.4310 0.5 5.6 25 9.779 6.02 18.98 8 0.515 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-068A-15 6 27.5 0.264 EN 10270-1 4.542 10.29 17.21 68.0 | 94.7 | 65.3 | 44.0 D-073A 5.5 30 0.275 EN 10270-1 4.801 12.56 17.44 71.2 | 92.9 | 69.6 | 51.2 D-068A-14 6 23.7 0.306 EN 10270-1 4.498 9.01 14.69 68.5 | 96.0 | 58.5 | 51.0 D-068A-03 6.5 23.8 0.347 EN 10270-1 5.967 6.59 17.21 74.4 | 93.8 | 71.5 | 57.8 D-073 5.5 30 0.408 EN 10270-1 8.634 8.81 21.19 85.2 | 92.9 | 87.1 | 75.8 D-075A 5.3 29 0.426 EN 10270-1 8.377 9.36 19.64 87.2 | 92.8 | 89.3 | 79.3 D-075 5.3 28 0.523 EN 10270-1 10.567 7.81 20.19 94.7 | 91.7 | 95.1 | 97.3 D-072A 5.5 27.1 0.536 EN 10270-1 10.811 6.94 20.16 94.5 | 89.7 | 94.1 | 99.7 D-075E 5 26 0.559 EN 10270-1 9.707 8.63 17.37 93.7 | 91.3 | 93.5 | 96.2 D-072 5.5 20.5 0.599 EN 10270-1 8.502 6.31 14.19 89.3 | 93.4 | 74.7 | 99.9 D-069 5.6 25 0.6 EN 10270-1 11.385 6.02 18.98 100.0 | 100.0 | 100.0 | 100.0 D-090L 6 29.2 0.606 EN 10270-1 13.083 7.62 21.58 86.1 | 86.7 | 82.8 | 88.7 D-104A 5.63 26 0.694 EN 10270-1 7.508 15.18 10.82 79.9 | 91.7 | 61.5 | 86.4 D-090M-01 5 23 0.846 EN 10270-1 11.563 9.34 13.66 76.2 | 85.0 | 80.1 | 63.5 D-100A-08 6.4 25 0.983 EN 10270-1 16.885 7.82 17.18 76.3 | 89.0 | 79.0 | 61.0 D-104 5.63 26 1.027 EN 10270-1 15.749 10.67 15.33 75.5 | 91.7 | 76.5 | 58.4 D-136A 5.8 24.5 1.804 EN 10270-1 10.381 18.75 5.75 59.9 | 85.7 | 60.7 | 33.2 D-117H-51 6 27 2.122 EN 10270-1 34.493 10.74 16.26 57.3 | 84.2 | 59.3 | 28.3 D-136 5.8 24.5 2.671 EN 10270-1 30.215 13.19 11.31 52.3 | 85.7 | 48.6 | 22.5 D-117H-60 5.35 20 3.312 EN 10270-1 32.543 10.17 9.83 47.4 | 80.7 | 43.4 | 18.1 D-144C 6.3 22.2 4.468 EN 10270-1 47.065 11.67 10.53 43.7 | 77.7 | 39.8 | 13.4 D-173G 6.3 28 5.069 EN 10270-1 53.634 17.42 10.58 42.1 | 76.1 | 38.5 | 11.8 D-145 5.4 24 5.642 EN 10270-1 50.167 15.11 8.89 42.7 | 82.7 | 34.8 | 10.6 D-178B 5.8 30 6.353 EN 10270-1 73.37 18.45 11.55 40.2 | 74.8 | 37.4 | 8.5 D-173C-10 6.5 24 6.445 EN 10270-1 71.667 12.88 11.12 41.3 | 77.4 | 37.2 | 9.3 D-177 6 24 6.52 EN 10270-1 50.734 16.22 7.78 40.2 | 79.8 | 31.7 | 9.2 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-069 Country of origin: DE, German; Compression spring D-069 Product image - Compression springs D-069 QR-Code: Compression spring D-069
