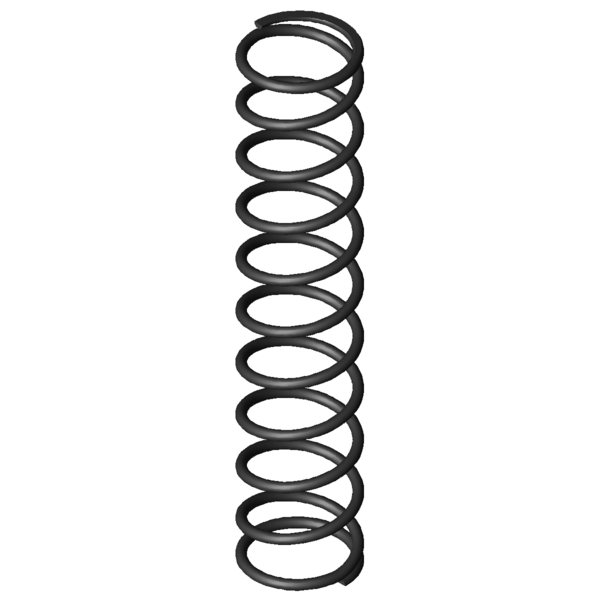

Home » Products » Compression springs » d-090l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm Scaled prices - Compression spring D-090L Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-090L Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-090L Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.55 mm Wire diameter Di mm Inner coil diameter D 5.45 mm Mean coil diameter De 6 mm Outer coil diameter Dd 4.5 mm maximum diameter of mandrel Dh 6.6 mm minimum diameter of bush L0 29.2 mm unstressed spring length Lk 11.52 mm buckling length Fn 13.083 N maximum force in static use Ln 7.62 mm Minimum length in static use sn 21.58 mm Maximum spring deflection in static use Fndyn 11.457 N maximum force in dynamic use Lndyn 10.3 mm Minimum length in dynamic use shdyn 4.94 mm Maximum stroke in dynamic use S 3.016 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 0.606 N/mm Spring rate Weight 0.3698 g weight of one spring Fntol 0.76 N (+/-) tolerance of maximum force in static use Fndtol 0.76 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.94 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm Datasheet download pdf file Metal spring characteristic Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm Metal spring characteristic download pdf file CAD data Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm force-path-calculation Compression spring D-090L Inquiry formular Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm Inquiry formular Compression spring D-090L Similar compression springs to Compression spring D-090L Spring steel Ø 0.55 x 5.45 x 29.2 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-090L EN 10270-1 0.55 6 29.2 13.083 7.62 21.58 9.5 0.606 100.0 | 100.0 | 100.0 | 100.0 VD-090L 1.4310 0.55 6 29.2 11.237 7.62 21.58 9.5 0.521 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-068A-15 6 27.5 0.264 EN 10270-1 4.542 10.29 17.21 65.3 | 95.0 | 57.2 | 43.5 D-073A 5.5 30 0.275 EN 10270-1 4.801 12.56 17.44 65.8 | 93.3 | 58.8 | 45.4 D-066 6.8 30 0.3 EN 10270-1 6.984 6.69 23.31 71.5 | 92.2 | 73.0 | 49.4 D-068A-14 6 23.7 0.306 EN 10270-1 4.498 9.01 14.69 64.1 | 90.7 | 51.2 | 50.5 D-068A-16 6 33 0.364 EN 10270-1 9.211 7.73 25.27 77.1 | 93.1 | 77.9 | 60.1 D-073 5.5 30 0.408 EN 10270-1 8.634 8.81 21.19 80.9 | 93.3 | 82.1 | 67.2 D-075A 5.3 29 0.426 EN 10270-1 8.377 9.36 19.64 80.2 | 92.9 | 77.5 | 70.4 D-075 5.3 28 0.523 EN 10270-1 10.567 7.81 20.19 88.4 | 91.7 | 87.2 | 86.3 D-072A 5.5 27.1 0.536 EN 10270-1 10.811 6.94 20.16 89.4 | 91.8 | 88.0 | 88.5 D-069 5.6 25 0.6 EN 10270-1 11.385 6.02 18.98 92.1 | 90.0 | 87.5 | 98.9 D-090L 6 29.2 0.606 EN 10270-1 13.083 7.62 21.58 100.0 | 100.0 | 100.0 | 100.0 D-104A 5.63 26 0.694 EN 10270-1 7.508 15.18 10.82 77.1 | 90.1 | 53.8 | 87.4 D-100A-01 6.4 33 0.796 EN 10270-1 18.802 9.37 23.63 82.2 | 89.8 | 80.5 | 76.2 D-100A-08 6.4 25 0.983 EN 10270-1 16.885 7.82 17.18 76.4 | 88.9 | 78.5 | 61.7 D-104 5.63 26 1.027 EN 10270-1 15.749 10.67 15.33 75.4 | 90.1 | 77.1 | 59.0 D-136A 5.8 24.5 1.804 EN 10270-1 10.381 18.75 5.75 56.6 | 83.1 | 53.0 | 33.6 D-132B 6.4 28 1.901 EN 10270-1 27.876 13.34 14.67 58.5 | 86.1 | 57.5 | 31.9 D-117D 5 29.5 1.985 EN 10270-1 30.866 13.95 15.55 58.2 | 87.0 | 57.2 | 30.5 D-117H-51 6 27 2.122 EN 10270-1 34.493 10.74 16.26 57.9 | 88.6 | 56.6 | 28.6 D-136 5.8 24.5 2.671 EN 10270-1 30.215 13.19 11.31 51.2 | 83.1 | 47.9 | 22.7 D-178A 6 34.5 3.622 EN 10270-1 25.016 27.59 6.91 46.3 | 79.9 | 42.2 | 16.7 D-177A 6 34 4.179 EN 10270-1 41.037 24.18 9.82 44.5 | 80.3 | 38.7 | 14.5 D-178 6 34 4.405 EN 10270-1 48.267 23.04 10.96 44.3 | 80.3 | 38.9 | 13.8 D-173G 6.3 28 5.069 EN 10270-1 53.634 17.42 10.58 43.6 | 82.0 | 36.7 | 12.0 D-178B 5.8 30 6.353 EN 10270-1 73.37 18.45 11.55 42.7 | 83.0 | 35.7 | 9.5 D-177 6 24 6.52 EN 10270-1 50.734 16.22 7.78 39.8 | 79.1 | 30.9 | 9.3 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-090L Country of origin: DE, German; Compression spring D-090L Product image - Compression springs D-090L QR-Code: Compression spring D-090L
