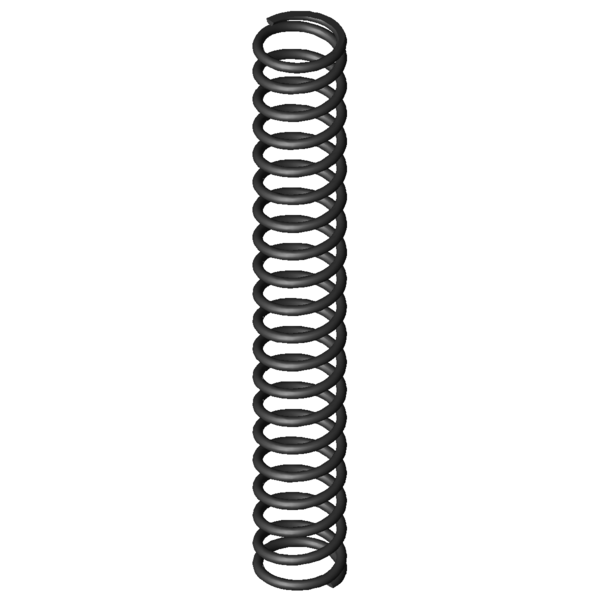

Home » Products » Compression springs » d-080 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm Scaled prices - Compression spring D-080 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-080 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-080 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 4 mm Mean coil diameter De 4.5 mm Outer coil diameter Dd 3.1 mm maximum diameter of mandrel Dh 4.9 mm minimum diameter of bush L0 31 mm unstressed spring length Lk 24.48 mm buckling length Fn 10.184 N maximum force in static use Ln 12.06 mm Minimum length in static use sn 18.94 mm Maximum spring deflection in static use Fndyn 9.696 N maximum force in dynamic use Lndyn 12.97 mm Minimum length in dynamic use shdyn 6.59 mm Maximum stroke in dynamic use S 1.649 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.538 N/mm Spring rate Weight 0.3998 g weight of one spring Fntol 0.71 N (+/-) tolerance of maximum force in static use Fndtol 0.71 N (+/-) tolerance of maximum dynamic force Detol 0.15 mm (+/-) tolerances of outer coil diameter L0tol 1.05 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm Datasheet download pdf file Metal spring characteristic Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm Metal spring characteristic download pdf file CAD data Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm force-path-calculation Compression spring D-080 Inquiry formular Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm Inquiry formular Compression spring D-080 Similar compression springs to Compression spring D-080 Spring steel Ø 0.5 x 4 x 31 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-080 EN 10270-1 0.5 4.5 31 10.184 12.06 18.94 18.5 0.538 100.0 | 100.0 | 100.0 | 100.0 VD-080 1.4310 0.5 4.5 31 8.747 12.06 18.94 18.5 0.462 92.9 | 100.0 | 92.9 | 85.9 VD-080A 1.4310 0.5 4.5 31 6.283 14.46 16.55 22.5 0.38 81.7 | 100.0 | 74.5 | 70.6 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-073A 5.5 30 0.275 EN 10270-1 4.801 12.56 17.44 71.2 | 92.9 | 69.6 | 51.2 D-075F 5 37 0.378 EN 10270-1 9.329 12.3 24.7 81.9 | 91.3 | 84.1 | 70.2 D-073 5.5 30 0.408 EN 10270-1 8.634 8.81 21.19 85.2 | 92.9 | 87.1 | 75.8 D-075A 5.3 29 0.426 EN 10270-1 8.377 9.36 19.64 87.2 | 92.8 | 89.3 | 79.3 D-080A 4.5 31 0.442 EN 10270-1 7.316 14.46 16.55 87.3 | 100.0 | 79.6 | 82.2 D-090M-02 5 39 0.492 EN 10270-1 11.677 15.27 23.73 87.3 | 86.8 | 83.5 | 91.5 D-075 5.3 28 0.523 EN 10270-1 10.567 7.81 20.19 94.7 | 91.7 | 95.1 | 97.3 D-072A 5.5 27.1 0.536 EN 10270-1 10.811 6.94 20.16 94.5 | 89.7 | 94.1 | 99.7 D-080 4.5 31 0.538 EN 10270-1 10.184 12.06 18.94 100.0 | 100.0 | 100.0 | 100.0 D-075E 5 26 0.559 EN 10270-1 9.707 8.63 17.37 93.7 | 91.3 | 93.5 | 96.2 D-090L 6 29.2 0.606 EN 10270-1 13.083 7.62 21.58 86.1 | 86.7 | 82.8 | 88.7 D-080D 4 31 0.762 EN 10270-1 14.133 12.44 18.56 84.0 | 96.3 | 85.0 | 70.6 D-079 4.5 21.5 0.796 EN 10270-1 10.367 8.48 13.03 80.3 | 89.8 | 83.5 | 67.6 D-090M-01 5 23 0.846 EN 10270-1 11.563 9.34 13.66 76.2 | 85.0 | 80.1 | 63.5 D-080C 4 24 1.024 EN 10270-1 14.843 9.51 14.49 71.3 | 88.8 | 72.6 | 52.5 D-078A 4.5 20 1.047 EN 10270-1 13.948 6.68 13.32 70.4 | 88.2 | 71.7 | 51.3 D-110A 4.63 29 1.114 EN 10270-1 12.583 17.71 11.29 69.5 | 90.0 | 70.3 | 48.2 D-110 4.63 29 1.355 EN 10270-1 19.267 14.79 14.21 64.5 | 90.0 | 63.9 | 39.7 D-109A 4.63 20 1.355 EN 10270-1 7.068 14.79 5.21 56.1 | 80.4 | 48.5 | 39.6 D-117D 5 29.5 1.985 EN 10270-1 30.866 13.95 15.55 56.7 | 85.5 | 57.5 | 27.1 D-109 4.63 20 2.006 EN 10270-1 19.261 10.4 9.6 53.0 | 80.4 | 51.8 | 26.8 D-142 4.8 28 3.524 EN 10270-1 33.71 18.44 9.57 45.9 | 82.2 | 40.4 | 15.3 D-178B 5.8 30 6.353 EN 10270-1 73.37 18.45 11.55 40.2 | 74.8 | 37.4 | 8.5 D-142AD 4.4 20 6.625 EN 10270-1 41.022 13.81 6.19 37.3 | 74.9 | 28.8 | 8.1 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-080 Country of origin: DE, German; Compression spring D-080 Product image - Compression springs D-080 QR-Code: Compression spring D-080
