Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

Scaled prices - Compression spring D-085G

Quantity	Single price [EUR]
1	4.7200 EUR
2	3.3300 EUR
3	3.1700 EUR
7	1.7700 EUR
17	0.7400 EUR
37	0.4200 EUR
75	0.2000 EUR
125	0.1664 EUR
175	0.1253 EUR
250	0.1002 EUR
350	0.0758 EUR
450	0.0694 EUR

Compression spring Buy

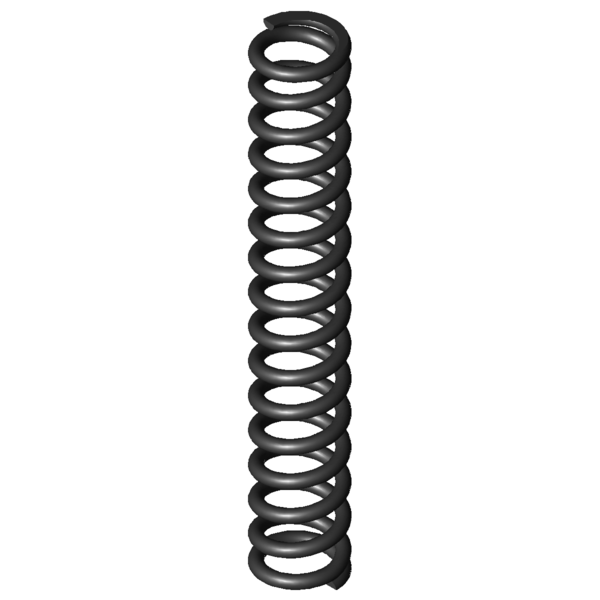

Product image Compression spring D-085G

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-085G

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	Prestressed spring deflection
F2	-	N	Loaded spring force
L2	-	mm	Loaded spring length
s2	-	mm	Loaded spring deflection
d	0.5	mm	Wire diameter
Di	-	mm	Inner coil diameter
D	2.7	mm	Mean coil diameter
De	3.2	mm	Outer coil diameter
Dd	1.9	mm	maximum diameter of mandrel
Dh	3.6	mm	minimum diameter of bush
L0	20	mm	unstressed spring length
Lk	15.32	mm	buckling length
Fn	22.555	N	maximum force in static use
Ln	9.89	mm	Minimum length in static use
sn	10.11	mm	Maximum spring deflection in static use
Fndyn	17.848	N	maximum force in dynamic use
Lndyn	12	mm	Minimum length in dynamic use
shdyn	1.5	mm	Maximum stroke in dynamic use
S	1.345	mm	pitch of spring
n	14.5	pc.	number of active coils
nt	-	pc.	total number of coils
R	2.231	N/mm	Spring rate
Weight	0.2172	g	weight of one spring
Fntol	1.54	N	(+/-) tolerance of maximum force in static use
Fndtol	1.53	N	(+/-) tolerance of maximum dynamic force
Detol	0.15	mm	(+/-) tolerances of outer coil diameter
L0tol	0.53	mm	(+/-) tolerance of unstressed spring length
Price group	B	-	price group
F1tol	-	N	(+/-) tolerance of prestressed spring force
F2tol	-	N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

force-path-calculation Compression spring D-085G

Inquiry formular Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

Inquiry formular Compression spring D-085G

Similar compression springs to Compression spring D-085G Spring steel Ø 0.5 x 2.7 x 20 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-085G	EN 10270-1	0.5	3.2	20	22.555	9.89	10.11	14.5	2.231	100.0 \| 100.0 \| 100.0 \| 100.0
VD-085G	1.4310	0.5	3.2	20	18.817	10.18	9.82	14.5	1.916	92.1 \| 100.0 \| 90.3 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-079	4.5	21.5	0.796	EN 10270-1	10.367	8.48	13.03	100.0 \| 100.0 \| 100.0 \| 100.0
D-085A	3.7	23.5	0.864	EN 10270-1	8.147	14.07	9.43	86.3 \| 91.2 \| 75.5 \| 92.1
D-080C	4	24	1.024	EN 10270-1	14.843	9.51	14.49	83.5 \| 92.8 \| 79.9 \| 77.7
D-078A	4.5	20	1.047	EN 10270-1	13.948	6.68	13.32	86.6 \| 97.7 \| 86.1 \| 76.0
D-085	3.7	23.5	1.05	EN 10270-1	12.348	11.74	11.76	84.7 \| 91.2 \| 87.1 \| 75.8
D-084A	3.7	16	1.05	EN 10270-1	4.471	11.74	4.26	55.6 \| 88.8 \| 31.0 \| 47.0
D-080B-04	4	22	1.188	EN 10270-1	16.235	8.33	13.67	80.7 \| 95.5 \| 79.6 \| 67.0
D-080H	3.8	18	1.312	EN 10270-1	11.988	8.87	9.13	76.1 \| 89.4 \| 78.3 \| 60.6
D-109A	4.63	20	1.355	EN 10270-1	7.068	14.79	5.21	67.5 \| 89.9 \| 54.1 \| 58.6
D-085E	3.5	20.7	1.521	EN 10270-1	16.365	9.94	10.76	72.2 \| 91.4 \| 73.0 \| 52.3
D-084	3.7	16	1.554	EN 10270-1	12.033	8.26	7.74	74.5 \| 88.8 \| 65.0 \| 69.7
D-085H	3.2	24	1.848	EN 10270-1	22.552	11.8	12.2	89.6 \| 94.4 \| 91.4 \| 82.9
D-109	4.63	20	2.006	EN 10270-1	19.261	10.4	9.6	64.4 \| 89.9 \| 63.7 \| 39.7
D-090	3	17.5	2.203	EN 10270-1	13.168	11.52	5.98	83.7 \| 93.8 \| 58.8 \| 98.7
D-085G	3.2	20	2.231	EN 10270-1	22.555	9.89	10.11	100.0 \| 100.0 \| 100.0 \| 100.0
D-090Q	3.5	20.2	2.343	EN 10270-1	21.915	10.85	9.35	60.3 \| 87.5 \| 59.5 \| 33.9
D-085D	3.5	13.4	2.482	EN 10270-1	17.174	6.48	6.92	82.8 \| 86.1 \| 72.3 \| 89.9
D-115	3.83	22.5	2.647	EN 10270-1	21.095	14.53	7.97	57.3 \| 86.7 \| 55.2 \| 30.1
D-085F	3.2	17	2.813	EN 10270-1	22.56	8.98	8.02	88.0 \| 95.0 \| 89.7 \| 79.3
D-110E	4	18	3.106	EN 10270-1	21.803	10.98	7.02	79.3 \| 83.1 \| 83.1 \| 71.8
D-089	3	12	3.26	EN 10270-1	12.683	8.11	3.89	66.8 \| 84.6 \| 47.4 \| 68.4
D-090P	3.5	13.1	3.822	EN 10270-1	23.037	7.07	6.03	73.3 \| 82.6 \| 78.8 \| 58.4
D-090AE	2.8	13	3.876	EN 10270-1	16.904	8.64	4.36	66.9 \| 84.2 \| 59.0 \| 57.5
D-114	3.83	15.5	3.918	EN 10270-1	20.659	10.23	5.27	69.6 \| 80.1 \| 71.9 \| 56.9
D-090U	2.8	15.3	5.28	EN 10270-1	24.333	10.69	4.61	65.5 \| 85.0 \| 69.1 \| 42.3
D-142AD	4.4	20	6.625	EN 10270-1	41.022	13.81	6.19	56.7 \| 78.4 \| 58.1 \| 33.7
D-117H	3.5	19	7.189	EN 10270-1	38.852	13.6	5.4	57.6 \| 86.0 \| 55.7 \| 31.0
D-115D	3	16.5	7.778	EN 10270-1	33.376	12.21	4.29	56.3 \| 85.2 \| 55.0 \| 28.7
D-117H-70	4	17	7.825	EN 10270-1	41.836	11.65	5.35	53.1 \| 77.2 \| 53.4 \| 28.5
D-117G	3.5	12.2	11.729	EN 10270-1	39.004	8.87	3.33	46.3 \| 74.6 \| 45.4 \| 19.0

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-085G

Country of origin: DE, German; Compression spring D-085G
