Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

Scaled prices - Compression spring D-085F

Quantity	Single price [EUR]
1	4.7200 EUR
2	3.3300 EUR
3	3.1700 EUR
7	1.7700 EUR
17	0.7400 EUR
37	0.4200 EUR
75	0.2000 EUR
125	0.1664 EUR
175	0.1253 EUR
250	0.1002 EUR
350	0.0758 EUR
450	0.0694 EUR

Compression spring Buy

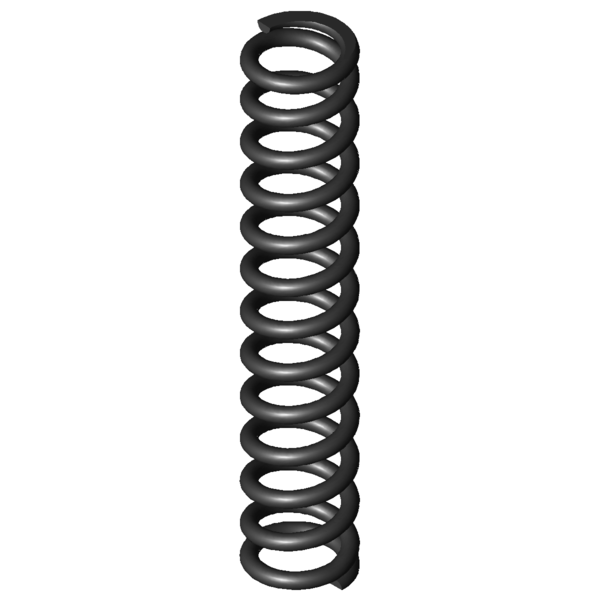

Product image Compression spring D-085F

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-085F

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	2.7	mm	Mean coil diameter
De	3.2	mm	Outer coil diameter
Dd	1.9	mm	maximum diameter of mandrel
Dh	3.6	mm	minimum diameter of bush
L0	17	mm	unstressed spring length
Lk	10.99	mm	buckling length
Fn	22.56	N	maximum force in static use
Ln	8.98	mm	Minimum length in static use
sn	8.02	mm	Maximum spring deflection in static use
Fndyn	19.831	N	maximum force in dynamic use
Lndyn	9.95	mm	Minimum length in dynamic use
shdyn	0.94	mm	Maximum stroke in dynamic use
S	1.435	mm	pitch of spring
n	11.5	pc.	number of active coils
nt		pc.	total number of coils
R	2.813	N/mm	Spring rate
Weight	0.1777	g	weight of one spring
Fntol	1.62	N	(+/-) tolerance of maximum force in static use
Fndtol	1.6	N	(+/-) tolerance of maximum dynamic force
Detol	0.15	mm	(+/-) tolerances of outer coil diameter
L0tol	0.43	mm	(+/-) tolerance of unstressed spring length
Price group	B	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

force-path-calculation Compression spring D-085F

Inquiry formular Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

Inquiry formular Compression spring D-085F

Similar compression springs to Compression spring D-085F Spring steel Ø 0.5 x 2.7 x 17 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-085F	EN 10270-1	0.5	3.2	17	22.56	8.98	8.02	11.5	2.813	100.0 \| 100.0 \| 100.0 \| 100.0
VD-085F	1.4310	0.5	3.2	17	18.724	9.25	7.75	11.5	2.416	91.9 \| 100.0 \| 89.8 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-084A	3.7	16	1.05	EN 10270-1	4.471	11.74	4.26	55.8 \| 93.5 \| 36.5 \| 37.3
D-078	4.5	15	1.17	EN 10270-1	10.437	6.08	8.92	65.4 \| 86.4 \| 68.1 \| 41.6
D-080H	3.8	18	1.312	EN 10270-1	11.988	8.87	9.13	70.0 \| 92.9 \| 70.5 \| 46.7
D-085E	3.5	20.7	1.521	EN 10270-1	16.365	9.94	10.76	72.9 \| 91.2 \| 73.5 \| 54.1
D-084	3.7	16	1.554	EN 10270-1	12.033	8.26	7.74	74.6 \| 93.5 \| 74.9 \| 55.3
D-080B-02	4	15	1.747	EN 10270-1	15.746	5.99	9.01	77.0 \| 89.4 \| 79.4 \| 62.1
D-085H	3.2	24	1.848	EN 10270-1	22.552	11.8	12.2	79.6 \| 90.3 \| 82.9 \| 65.7
D-080G	3.8	12	2.084	EN 10270-1	12.605	5.95	6.05	74.9 \| 84.9 \| 65.7 \| 74.1
D-090	3	17.5	2.203	EN 10270-1	13.168	11.52	5.98	80.6 \| 97.0 \| 66.5 \| 78.3
D-085G	3.2	20	2.231	EN 10270-1	22.555	9.89	10.11	88.0 \| 95.0 \| 89.7 \| 79.3
D-083	3.7	11.5	2.286	EN 10270-1	12.719	5.94	5.56	76.3 \| 84.7 \| 62.9 \| 81.3
D-090Q	3.5	20.2	2.343	EN 10270-1	21.915	10.85	9.35	87.9 \| 88.8 \| 91.5 \| 83.3
D-085D	3.5	13.4	2.482	EN 10270-1	17.174	6.48	6.92	86.5 \| 90.1 \| 81.2 \| 88.2
D-115	3.83	22.5	2.647	EN 10270-1	21.095	14.53	7.97	90.0 \| 79.5 \| 96.4 \| 94.1
D-085F	3.2	17	2.813	EN 10270-1	22.56	8.98	8.02	100.0 \| 100.0 \| 100.0 \| 100.0
D-110E	4	18	3.106	EN 10270-1	21.803	10.98	7.02	89.1 \| 84.6 \| 92.1 \| 90.6
D-089	3	12	3.26	EN 10270-1	12.683	8.11	3.89	75.6 \| 88.1 \| 52.4 \| 86.3
D-090P	3.5	13.1	3.822	EN 10270-1	23.037	7.07	6.03	82.2 \| 86.5 \| 86.6 \| 73.6
D-090AE	2.8	13	3.876	EN 10270-1	16.904	8.64	4.36	75.1 \| 88.0 \| 64.6 \| 72.6
D-114	3.83	15.5	3.918	EN 10270-1	20.659	10.23	5.27	78.4 \| 84.7 \| 78.6 \| 71.8
D-110D	4	12	4.933	EN 10270-1	22.789	7.38	4.62	70.7 \| 76.7 \| 78.3 \| 57.0
D-090D	2.5	13.7	5.135	EN 10270-1	20.483	9.71	3.99	70.4 \| 86.2 \| 70.3 \| 54.8
D-090U	2.8	15.3	5.28	EN 10270-1	24.333	10.69	4.61	72.6 \| 89.5 \| 75.1 \| 53.3
D-117H	3.5	19	7.189	EN 10270-1	38.852	13.6	5.4	62.0 \| 84.1 \| 62.7 \| 39.1
D-115D	3	16.5	7.778	EN 10270-1	33.376	12.21	4.29	62.3 \| 90.1 \| 60.5 \| 36.2
D-117H-70	4	17	7.825	EN 10270-1	41.836	11.65	5.35	59.5 \| 82.2 \| 60.3 \| 36.0
D-117G	3.5	12.2	11.729	EN 10270-1	39.004	8.87	3.33	50.6 \| 78.2 \| 49.7 \| 24.0
D-115C	3	10.6	12.69	EN 10270-1	33.368	7.97	2.63	50.3 \| 78.5 \| 50.2 \| 22.2
D-145C	4.5	15.6	15.08	EN 10270-1	63.183	11.41	4.19	45.1 \| 72.8 \| 44.0 \| 18.7

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-085F

Country of origin: DE, German; Compression spring D-085F
