Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

Scaled prices - Compression spring D-090D

Quantity	Single price [EUR]
1	4.7200 EUR
2	3.3300 EUR
3	3.1700 EUR
7	1.7700 EUR
17	0.7400 EUR
37	0.4200 EUR
75	0.2000 EUR
125	0.1664 EUR
175	0.1253 EUR
250	0.1002 EUR
350	0.0758 EUR
450	0.0694 EUR

Compression spring Buy

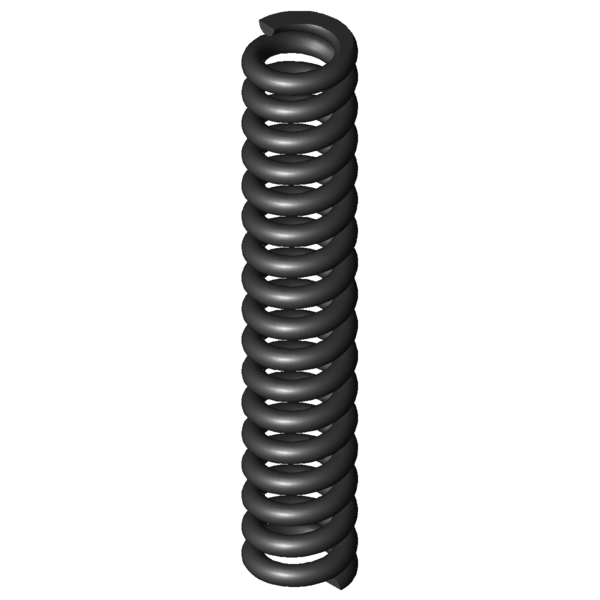

Product image Compression spring D-090D

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-090D

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	2	mm	Mean coil diameter
De	2.5	mm	Outer coil diameter
Dd	1.2	mm	maximum diameter of mandrel
Dh	2.8	mm	minimum diameter of bush
L0	13.7	mm	unstressed spring length
Lk	9.82	mm	buckling length
Fn	20.483	N	maximum force in static use
Ln	9.71	mm	Minimum length in static use
sn	3.99	mm	Maximum spring deflection in static use
Fndyn	18.023	N	maximum force in dynamic use
Lndyn	10.19	mm	Minimum length in dynamic use
shdyn	1.06	mm	Maximum stroke in dynamic use
S	0.852	mm	pitch of spring
n	15.5	pc.	number of active coils
nt		pc.	total number of coils
R	5.135	N/mm	Spring rate
Weight	0.1707	g	weight of one spring
Fntol	2.56	N	(+/-) tolerance of maximum force in static use
Fndtol	2.52	N	(+/-) tolerance of maximum dynamic force
Detol	0.1	mm	(+/-) tolerances of outer coil diameter
L0tol	0.44	mm	(+/-) tolerance of unstressed spring length
Price group	B	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

force-path-calculation Compression spring D-090D

Inquiry formular Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

Inquiry formular Compression spring D-090D

Similar compression springs to Compression spring D-090D Spring steel Ø 0.5 x 2 x 13.7 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-090D	EN 10270-1	0.5	2.5	13.7	20.483	9.71	3.99	15.5	5.135	100.0 \| 100.0 \| 100.0 \| 100.0
VD-090D	1.4310	0.5	2.5	13.7	17.593	9.71	3.99	15.5	4.41	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-080B-02	4	15	1.747	EN 10270-1	15.746	5.99	9.01	59.7 \| 84.6 \| 60.6 \| 34.0
D-080G	3.8	12	2.084	EN 10270-1	12.605	5.95	6.05	62.9 \| 84.5 \| 63.7 \| 40.6
D-090	3	17.5	2.203	EN 10270-1	13.168	11.52	5.98	65.2 \| 87.2 \| 65.5 \| 42.9
D-085G	3.2	20	2.231	EN 10270-1	22.555	9.89	10.11	63.6 \| 82.2 \| 65.1 \| 43.5
D-083	3.7	11.5	2.286	EN 10270-1	12.719	5.94	5.56	65.1 \| 83.8 \| 66.9 \| 44.6
D-085D	3.5	13.4	2.482	EN 10270-1	17.174	6.48	6.92	69.6 \| 89.7 \| 70.8 \| 48.3
D-085F	3.2	17	2.813	EN 10270-1	22.56	8.98	8.02	70.4 \| 86.2 \| 70.3 \| 54.8
D-089	3	12	3.26	EN 10270-1	12.683	8.11	3.89	77.8 \| 90.3 \| 79.7 \| 63.5
D-090P	3.5	13.1	3.822	EN 10270-1	23.037	7.07	6.03	79.3 \| 86.0 \| 77.5 \| 74.4
D-090AE	2.8	13	3.876	EN 10270-1	16.904	8.64	4.36	85.8 \| 94.7 \| 87.0 \| 75.5
D-114	3.83	15.5	3.918	EN 10270-1	20.659	10.23	5.27	80.5 \| 77.7 \| 87.4 \| 76.4
D-085C	3.5	8.4	4.288	EN 10270-1	18.122	4.17	4.23	84.1 \| 77.6 \| 91.4 \| 83.5
D-088	3	8.7	4.794	EN 10270-1	13.738	5.83	2.87	81.7 \| 82.3 \| 69.5 \| 93.2
D-110D	4	12	4.933	EN 10270-1	22.789	7.38	4.62	86.9 \| 76.5 \| 88.1 \| 96.1
D-090D	2.5	13.7	5.135	EN 10270-1	20.483	9.71	3.99	100.0 \| 100.0 \| 100.0 \| 100.0
D-090U	2.8	15.3	5.28	EN 10270-1	24.333	10.69	4.61	55.2 \| 81.6 \| 55.0 \| 28.8
D-113	3.83	11	5.762	EN 10270-1	20.986	7.36	3.64	86.1 \| 75.0 \| 94.4 \| 89.0
D-090AD	2.8	8	6.157	EN 10270-1	13.484	5.81	2.19	75.4 \| 82.6 \| 60.4 \| 83.4
D-087	3	6.1	7.409	EN 10270-1	14.61	4.13	1.97	68.5 \| 76.0 \| 60.4 \| 69.2
D-115D	3	16.5	7.778	EN 10270-1	33.376	12.21	4.29	75.0 \| 81.9 \| 77.2 \| 66.0
D-090C	2.5	8.7	8.378	EN 10270-1	19.78	6.34	2.36	75.6 \| 87.8 \| 77.9 \| 61.3
D-090T	2.8	9.7	8.615	EN 10270-1	23.444	6.98	2.72	73.7 \| 83.7 \| 77.8 \| 59.6
D-090AC	2.8	5.5	9.515	EN 10270-1	13.204	4.11	1.39	60.1 \| 76.5 \| 49.7 \| 54.0
D-117G	3.5	12.2	11.729	EN 10270-1	39.004	8.87	3.33	63.0 \| 77.3 \| 68.0 \| 43.8
D-115C	3	10.6	12.69	EN 10270-1	33.368	7.97	2.63	61.4 \| 80.0 \| 63.6 \| 40.5
D-090B	2.5	5.5	14.471	EN 10270-1	20.389	4.09	1.41	61.0 \| 80.0 \| 67.4 \| 35.5
D-090S	2.8	6.1	14.88	EN 10270-1	23.757	4.5	1.6	57.5 \| 74.9 \| 63.2 \| 34.6
D-115B	3	6.6	21.919	EN 10270-1	31.891	5.15	1.45	48.0 \| 70.3 \| 50.3 \| 23.3
D-090A	2.5	3.8	22.74	EN 10270-1	18.942	2.97	0.83	51.7 \| 75.9 \| 56.6 \| 22.5

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-090D
