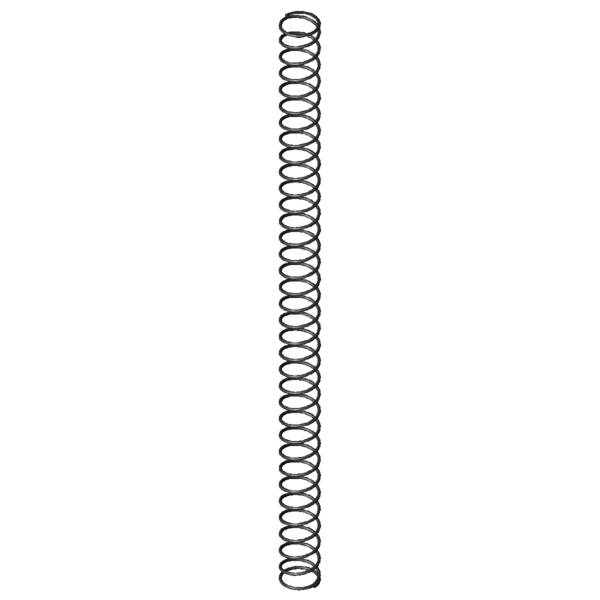

Home » Products » Compression springs » d-122a-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm Scaled prices - Compression spring D-122A-01 Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-122A-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-122A-01 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 10 mm Mean coil diameter De 10.8 mm Outer coil diameter Dd 8.7 mm maximum diameter of mandrel Dh 11.6 mm minimum diameter of bush L0 175 mm unstressed spring length Lk 168.56 mm buckling length Fn 17.144 N maximum force in static use Ln 37.36 mm Minimum length in static use sn 137.64 mm Maximum spring deflection in static use Fndyn 16.587 N maximum force in dynamic use Lndyn 41.84 mm Minimum length in dynamic use shdyn 67.77 mm Maximum stroke in dynamic use S 5.2 mm pitch of spring n 33.5 pc. number of active coils nt pc. total number of coils R 0.125 N/mm Spring rate Weight 4.4313 g weight of one spring Fntol 1.09 N (+/-) tolerance of maximum force in static use Fndtol 1.08 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 6.69 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm Datasheet download pdf file Metal spring characteristic Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm Metal spring characteristic download pdf file CAD data Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm force-path-calculation Compression spring D-122A-01 Inquiry formular Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm Inquiry formular Compression spring D-122A-01 Similar compression springs to Compression spring D-122A-01 Spring steel Ø 0.8 x 10 x 175 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-122A-01 EN 10270-1 0.8 10.8 175 17.144 37.36 137.64 33.5 0.125 100.0 | 100.0 | 100.0 | 100.0 VD-122A-01 1.4310 0.8 10.8 175 14.725 37.36 137.64 33.5 0.107 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-090W-04 11.6 98 0.097 EN 10270-1 8.217 13.5 84.5 69.6 | 76.0 | 54.7 | 78.1 D-090H 9 99.2 0.1 EN 10270-1 8.543 13.5 85.7 68.6 | 69.6 | 56.0 | 80.0 D-090AA 10.5 117 0.108 EN 10270-1 10.919 15.6 101.4 78.7 | 80.9 | 68.7 | 86.5 D-115H 12 136 0.109 EN 10270-1 12.952 17.58 118.42 84.6 | 85.1 | 80.8 | 87.8 D-117M 14 160.6 0.117 EN 10270-1 16.422 20.3 140.3 93.5 | 89.6 | 96.9 | 94.0 D-122A-01 10.8 175 0.125 EN 10270-1 17.144 37.36 137.64 100.0 | 100.0 | 100.0 | 100.0 D-142D 15 163 0.154 EN 10270-1 21.647 22.28 140.72 84.7 | 84.7 | 88.5 | 81.0 D-090Z 10.5 72.4 0.176 EN 10270-1 10.955 10.05 62.35 66.0 | 72.4 | 54.6 | 70.9 D-122A 10.8 96.5 0.185 EN 10270-1 13.145 25.62 70.88 72.1 | 85.0 | 64.1 | 67.2 D-122 10.8 96.5 0.226 EN 10270-1 16.951 21.35 75.15 72.3 | 85.0 | 76.7 | 55.2 D-150A 13.5 115 0.232 EN 10270-1 19.236 32.02 82.98 67.9 | 75.2 | 74.7 | 53.7 D-150 13.5 115 0.282 EN 10270-1 24.9 26.69 88.31 62.0 | 75.2 | 66.5 | 44.2 D-122A-14 10 92.5 0.29 EN 10270-1 20.764 20.82 71.68 64.0 | 81.8 | 67.3 | 43.0 D-179J-05 14 142 0.376 EN 10270-1 42.522 28.78 113.22 57.2 | 77.0 | 61.3 | 33.2 D-155A 11 81.5 0.453 EN 10270-1 23.261 30.13 51.38 52.6 | 74.9 | 55.5 | 27.5 D-155A-10 11 114 0.497 EN 10270-1 42.924 27.63 86.38 52.5 | 81.1 | 51.3 | 25.1 D-155 11 81.5 0.551 EN 10270-1 31.044 25.13 56.38 48.5 | 74.9 | 48.1 | 22.6 D-190A 13.75 130 0.566 EN 10270-1 52.264 37.66 92.34 48.1 | 72.3 | 49.9 | 22.0 D-166P 8 135 0.683 EN 10270-1 55.956 53.05 81.95 46.8 | 77.1 | 45.1 | 18.2 D-190 13.75 130 0.688 EN 10270-1 66.425 33.5 96.5 46.1 | 72.3 | 48.0 | 18.1 D-179N 12 88.8 0.743 EN 10270-1 48.547 23.47 65.33 43.1 | 71.2 | 41.4 | 16.8 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-122A-01 Country of origin: DE, German; Compression spring D-122A-01 Product image - Compression springs D-122A-01 QR-Code: Compression spring D-122A-01
