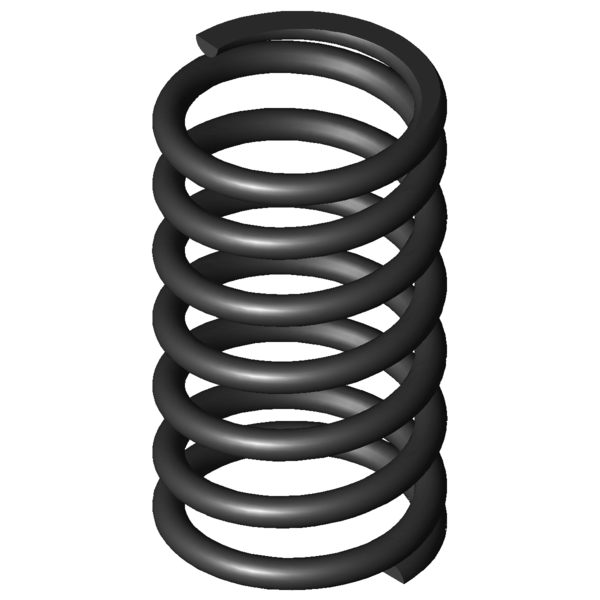

Home » Products » Compression springs » d-350a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm Scaled prices - Compression spring D-350A Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring D-350A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-350A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 45 mm Outer coil diameter Dd 34 mm maximum diameter of mandrel Dh 46.5 mm minimum diameter of bush L0 80 mm unstressed spring length Lk mm buckling length Fn 671.268 N maximum force in static use Ln 42.89 mm Minimum length in static use sn 37.11 mm Maximum spring deflection in static use Fndyn 622.429 N maximum force in dynamic use Lndyn 45.59 mm Minimum length in dynamic use shdyn 23.49 mm Maximum stroke in dynamic use S 13.636 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 18.089 N/mm Spring rate Weight 146.2788 g weight of one spring Fntol 44.2 N (+/-) tolerance of maximum force in static use Fndtol 43.67 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.9 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm Datasheet download pdf file Metal spring characteristic Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm Metal spring characteristic download pdf file CAD data Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm force-path-calculation Compression spring D-350A Inquiry formular Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm Inquiry formular Compression spring D-350A Similar compression springs to Compression spring D-350A Spring steel Ø 5 x 40 x 80 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-350A EN 10270-1 5 45 80 671.268 42.89 37.11 5.5 18.089 100.0 | 100.0 | 100.0 | 100.0 VD-350A 1.4310 5 45 80 576.549 42.89 37.11 5.5 15.536 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263D-13 42 75 0.303 EN 10270-1 8.131 48.15 26.85 38.5 | 77.0 | 36.8 | 1.7 D-263V-19 46 87 1.381 EN 10270-1 94.484 18.6 68.4 40.6 | 79.9 | 34.2 | 7.6 D-263W 42 91.7 1.845 EN 10270-1 136.149 17.9 73.8 40.8 | 76.9 | 35.3 | 10.2 D-288X-20 48 88 2.587 EN 10270-1 173.107 21.09 66.91 45.5 | 81.6 | 40.6 | 14.3 D-289C-01 48 76 3.394 EN 10270-1 183.255 22.01 53.99 50.3 | 84.3 | 48.0 | 18.8 D-289D 43.2 82 4.769 EN 10270-1 289.258 21.35 60.66 54.8 | 85.9 | 52.1 | 26.4 D-313E-10 48 80 4.887 EN 10270-1 262.323 26.33 53.67 56.6 | 88.6 | 54.1 | 27.0 D-319 44 71 11.643 EN 10270-1 529.75 25.5 45.5 77.8 | 88.8 | 80.2 | 64.4 D-339K 50 74.4 12.671 EN 10270-1 578.56 28.74 45.66 81.6 | 91.0 | 83.7 | 70.0 D-349A-04 50 70 12.704 EN 10270-1 344.411 42.89 27.11 75.0 | 92.5 | 62.2 | 70.2 D-326 36 79.5 14.471 EN 10270-1 653.91 34.31 45.19 85.4 | 86.5 | 89.8 | 80.0 D-339N-04 41 78 15.62 EN 10270-1 614.328 38.67 39.33 90.7 | 92.9 | 92.9 | 86.4 D-350A 45 80 18.089 EN 10270-1 671.268 42.89 37.11 100.0 | 100.0 | 100.0 | 100.0 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 82.5 | 90.5 | 75.0 | 81.9 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 79.1 | 93.3 | 80.3 | 63.6 D-364R-81 46 66 37.509 EN 10270-1 581.382 50.5 15.5 66.8 | 87.9 | 64.2 | 48.2 D-364J-09 42 70 42.602 EN 10270-1 1284.016 39.86 30.14 66.6 | 90.6 | 66.7 | 42.5 D-381 46.3 90 45.592 EN 10270-1 1695.55 52.81 37.19 65.9 | 88.5 | 69.7 | 39.7 D-380A 46.3 68 45.592 EN 10270-1 692.529 52.81 15.19 65.3 | 87.2 | 68.9 | 39.7 D-389L 50 89 55.936 EN 10270-1 1704.417 58.53 30.47 59.0 | 83.8 | 60.7 | 32.3 D-364R-04 39 76 60.008 EN 10270-1 1764.728 46.59 29.41 59.4 | 89.3 | 58.6 | 30.1 D-386A 38.3 85 65.301 EN 10270-1 1214.362 66.4 18.6 55.5 | 86.2 | 52.7 | 27.7 D-389A-20 37.8 85 78.992 EN 10270-1 2039.532 59.18 25.82 53.3 | 85.8 | 51.2 | 22.9 D-386 38.3 75 89.047 EN 10270-1 2043.089 52.06 22.94 51.2 | 86.1 | 47.3 | 20.3 D-409A 53.5 82 98.442 EN 10270-1 2426.915 57.35 24.65 48.9 | 81.4 | 47.0 | 18.4 D-389N-01 46 68 103.087 EN 10270-1 2257.233 46.1 21.9 48.9 | 84.8 | 44.4 | 17.5 D-389A-04 39 76 110.763 EN 10270-1 2301.704 55.22 20.78 48.1 | 85.4 | 42.6 | 16.3 D-411 48 90 118.545 EN 10270-1 2839.164 66.05 23.95 47.0 | 81.7 | 44.1 | 15.3 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring D-350A Country of origin: DE, German; Compression spring D-350A Product image - Compression springs D-350A QR-Code: Compression spring D-350A
