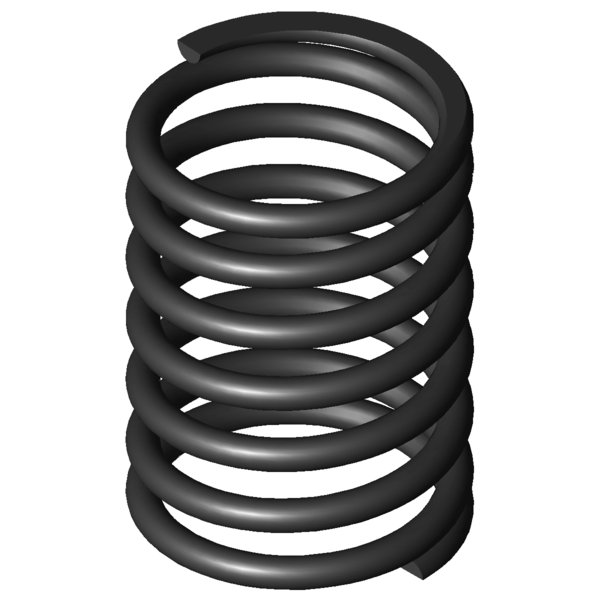

Home » Products » Compression springs » d-349a-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm Scaled prices - Compression spring D-349A-04 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1212 EUR 175 2.1185 EUR 250 2.0658 EUR 350 2.0208 EUR Compression spring Buy Product image Compression spring D-349A-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-349A-04 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 45 mm Mean coil diameter De 50 mm Outer coil diameter Dd 38.7 mm maximum diameter of mandrel Dh 51.6 mm minimum diameter of bush L0 70 mm unstressed spring length Lk mm buckling length Fn 344.411 N maximum force in static use Ln 42.89 mm Minimum length in static use sn 27.11 mm Maximum spring deflection in static use Fndyn 296.008 N maximum force in dynamic use Lndyn 46.7 mm Minimum length in dynamic use shdyn 23.3 mm Maximum stroke in dynamic use S 11.818 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 12.704 N/mm Spring rate Weight 146.2788 g weight of one spring Fntol 41.6 N (+/-) tolerance of maximum force in static use Fndtol 40.9 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 1.8 mm (+/-) tolerance of unstressed spring length Price group AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm Datasheet download pdf file Metal spring characteristic Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm Metal spring characteristic download pdf file CAD data Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm force-path-calculation Compression spring D-349A-04 Inquiry formular Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm Inquiry formular Compression spring D-349A-04 Similar compression springs to Compression spring D-349A-04 Spring steel Ø 5 x 45 x 70 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-349A-04 EN 10270-1 5 50 70 344.411 42.89 27.11 5.5 12.704 100.0 | 100.0 | 100.0 | 100.0 VD-349A-04 1.4310 5 50 70 295.704 42.9 27.1 5.5 10.912 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263D-13 42 75 0.303 EN 10270-1 8.131 48.15 26.85 42.3 | 73.8 | 50.7 | 2.4 D-263VH 46 60 2.149 EN 10270-1 99.399 13.74 46.26 45.5 | 75.9 | 43.7 | 16.9 D-289C-01 48 76 3.394 EN 10270-1 183.255 22.01 53.99 54.2 | 84.0 | 51.7 | 26.7 D-313E-10 48 80 4.887 EN 10270-1 262.323 26.33 53.67 62.3 | 85.2 | 63.3 | 38.5 D-318B 49 68 8.177 EN 10270-1 342.968 26.06 41.94 79.4 | 91.7 | 82.1 | 64.4 D-319 44 71 11.643 EN 10270-1 529.75 25.5 45.5 80.9 | 88.9 | 62.3 | 91.6 D-339K 50 74.4 12.671 EN 10270-1 578.56 28.74 45.66 84.6 | 94.7 | 59.5 | 99.7 D-349A-04 50 70 12.704 EN 10270-1 344.411 42.89 27.11 100.0 | 100.0 | 100.0 | 100.0 D-344B 55 66 14.554 EN 10270-1 496.641 31.88 34.13 85.6 | 95.1 | 74.4 | 87.3 D-364R-41 54 59.4 16.066 EN 10270-1 174.625 48.53 10.87 71.1 | 88.9 | 45.4 | 79.1 D-350A 45 80 18.089 EN 10270-1 671.268 42.89 37.11 75.0 | 92.5 | 62.2 | 70.2 D-364J-02 56 77 20.681 EN 10270-1 876.677 34.61 42.39 67.8 | 90.4 | 51.6 | 61.4 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 65.9 | 93.8 | 59.3 | 44.7 D-364J-21 48 63 34.696 EN 10270-1 1069.341 32.18 30.82 63.0 | 92.3 | 60.1 | 36.6 D-374B 56.3 64 36.682 EN 10270-1 919.309 38.94 25.06 62.0 | 86.5 | 65.0 | 34.6 D-375 56.3 80 36.682 EN 10270-1 1506.22 38.94 41.06 54.8 | 85.2 | 44.4 | 34.6 D-364R-81 46 66 37.509 EN 10270-1 581.382 50.5 15.5 60.7 | 89.9 | 58.2 | 33.9 D-364J-09 42 70 42.602 EN 10270-1 1284.016 39.86 30.14 59.9 | 91.6 | 58.4 | 29.8 D-380A 46.3 68 45.592 EN 10270-1 692.529 52.81 15.19 56.8 | 89.7 | 52.9 | 27.9 D-364L 38 70 49.375 EN 10270-1 1191.939 45.86 24.14 57.9 | 89.0 | 59.0 | 25.7 D-389L 50 89 55.936 EN 10270-1 1704.417 58.53 30.47 53.6 | 83.4 | 54.6 | 22.7 D-364R-91 39 68 66.799 EN 10270-1 1215.912 49.8 18.2 51.0 | 86.2 | 47.7 | 19.0 D-380 46.3 60 71.644 EN 10270-1 1562.682 38.19 21.81 51.6 | 85.9 | 51.2 | 17.7 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-349A-04 Country of origin: DE, German; Compression spring D-349A-04 Product image - Compression springs D-349A-04 QR-Code: Compression spring D-349A-04
