Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

Scaled prices - Compression spring D-364J-21

Quantity	Single price [EUR]
1	12.7100 EUR
2	10.1200 EUR
3	5.6200 EUR
7	3.4700 EUR
17	2.1700 EUR
37	1.8100 EUR
75	1.7400 EUR
125	1.7081 EUR
175	1.7063 EUR
250	1.6746 EUR
350	1.6471 EUR

Compression spring Buy

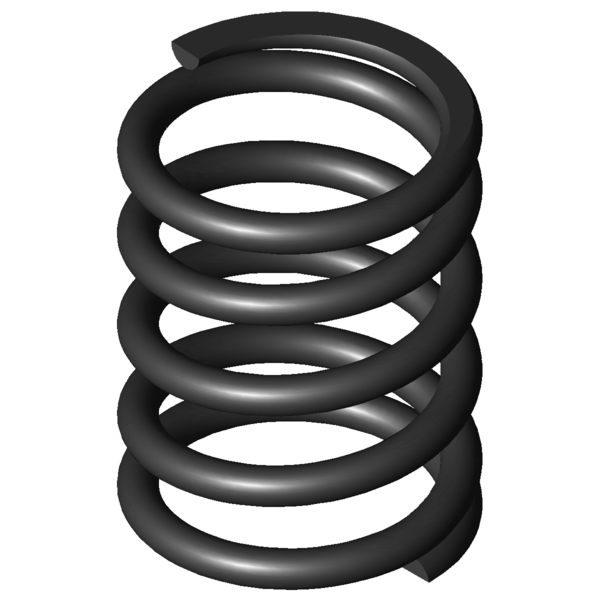

Product image Compression spring D-364J-21

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364J-21

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	42.5	mm	Mean coil diameter
De	48	mm	Outer coil diameter
Dd	36.2	mm	maximum diameter of mandrel
Dh	48.9	mm	minimum diameter of bush
L0	63	mm	unstressed spring length
Lk		mm	buckling length
Fn	1069.341	N	maximum force in static use
Ln	32.18	mm	Minimum length in static use
sn	30.82	mm	Maximum spring deflection in static use
Fndyn	943.74	N	maximum force in dynamic use
Lndyn	35.8	mm	Minimum length in dynamic use
shdyn	12.7	mm	Maximum stroke in dynamic use
S	16.429	mm	pitch of spring
n	3.5	pc.	number of active coils
nt		pc.	total number of coils
R	34.696	N/mm	Spring rate
Weight	137.9105	g	weight of one spring
Fntol	64.4	N	(+/-) tolerance of maximum force in static use
Fndtol	62.5	N	(+/-) tolerance of maximum dynamic force
Detol	0.6	mm	(+/-) tolerances of outer coil diameter
L0tol	1.3	mm	(+/-) tolerance of unstressed spring length
Price group	AC	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

force-path-calculation Compression spring D-364J-21

Inquiry formular Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

Inquiry formular Compression spring D-364J-21

Similar compression springs to Compression spring D-364J-21 Spring steel Ø 5.5 x 42.5 x 63 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364J-21	EN 10270-1	5.5	48	63	1069.341	32.18	30.82	3.5	34.696	55.3 \| 93.8 \| 25.8 \| 46.3
VD-364J-21	1.4310	5.5	48	63	865.705	33.95	29.05	3.5	29.801	91.2 \| 100.0 \| 87.6 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-263VH	46	60	2.149	EN 10270-1	99.399	13.74	46.26	43.3 \| 76.3 \| 40.2 \| 13.4
D-289C-01	48	76	3.394	EN 10270-1	183.255	22.01	53.99	42.4 \| 80.4 \| 37.1 \| 9.8
D-313E-10	48	80	4.887	EN 10270-1	262.323	26.33	53.67	45.5 \| 81.4 \| 41.0 \| 14.1
D-289C-06	48	48	5.28	EN 10270-1	166.643	16.44	31.56	57.8 \| 75.6 \| 64.9 \| 32.9
D-318B	49	68	8.177	EN 10270-1	342.968	26.06	41.94	57.5 \| 83.2 \| 38.4 \| 50.9
D-313F	40	61.7	10.137	EN 10270-1	392.377	22.99	38.71	59.2 \| 78.2 \| 36.3 \| 63.1
D-319	44	71	11.643	EN 10270-1	529.75	25.5	45.5	58.9 \| 84.4 \| 58.6 \| 33.6
D-339K	50	74.4	12.671	EN 10270-1	578.56	28.74	45.66	63.4 \| 84.3 \| 27.0 \| 78.9
D-349A-04	50	70	12.704	EN 10270-1	344.411	42.89	27.11	71.1 \| 88.9 \| 45.4 \| 79.1
D-325A	36	61	14.471	EN 10270-1	386.199	34.31	26.69	61.5 \| 81.5 \| 61.4 \| 41.7
D-344B	55	66	14.554	EN 10270-1	496.641	31.88	34.13	72.2 \| 92.5 \| 33.5 \| 90.6
D-364R-41	54	59.4	16.066	EN 10270-1	174.625	48.53	10.87	100.0 \| 100.0 \| 100.0 \| 100.0
D-349A-02	50	50	21.499	EN 10270-1	442.028	29.44	20.56	69.9 \| 88.7 \| 46.2 \| 74.7
D-350	45	64	28.425	EN 10270-1	940.013	30.93	33.07	56.9 \| 88.5 \| 25.7 \| 56.5
D-364J-21	48	63	34.696	EN 10270-1	1069.341	32.18	30.82	55.3 \| 93.8 \| 25.8 \| 46.3
D-355A	37	63	35.329	EN 10270-1	744.049	41.94	21.06	85.5 \| 89.3 \| 69.0 \| 98.2
D-374B	56.3	64	36.682	EN 10270-1	919.309	38.94	25.06	55.8 \| 92.5 \| 31.2 \| 43.8
D-364R-81	46	66	37.509	EN 10270-1	581.382	50.5	15.5	60.8 \| 89.5 \| 50.1 \| 42.8
D-364J-09	42	70	42.602	EN 10270-1	1284.016	39.86	30.14	88.2 \| 92.5 \| 90.5 \| 81.4
D-380A	46.3	68	45.592	EN 10270-1	692.529	52.81	15.19	57.0 \| 87.3 \| 48.4 \| 35.2
D-364J-20	48	45	53.972	EN 10270-1	1100.49	24.61	20.39	100.0 \| 100.0 \| 100.0 \| 100.0
D-364R-91	39	68	66.799	EN 10270-1	1215.912	49.8	18.2	71.3 \| 88.5 \| 73.5 \| 51.9
D-380	46.3	60	71.644	EN 10270-1	1562.682	38.19	21.81	81.2 \| 86.3 \| 82.0 \| 75.3
D-364R-03	39	64	74.127	EN 10270-1	1784.495	39.93	24.07	45.4 \| 87.2 \| 27.5 \| 21.7
D-389K	50	62.3	87.899	EN 10270-1	1754.76	42.34	19.96	46.6 \| 89.3 \| 32.2 \| 18.3
D-404A	58	68	95.378	EN 10270-1	1865.54	48.44	19.56	44.3 \| 83.5 \| 32.5 \| 16.8
D-389N-01	46	68	103.087	EN 10270-1	2257.233	46.1	21.9	60.6 \| 89.0 \| 59.2 \| 33.7
D-389A-03	39	64	162.453	EN 10270-1	2810.439	46.7	17.3	51.9 \| 87.3 \| 47.1 \| 21.4
D-410	48	65	186.286	EN 10270-1	3194.8	47.85	17.15	50.6 \| 88.6 \| 44.6 \| 18.6
D-414AA	42	53	303.335	EN 10270-1	1650.56	47.56	5.44	48.3 \| 80.4 \| 46.7 \| 17.8

Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring D-364J-21
