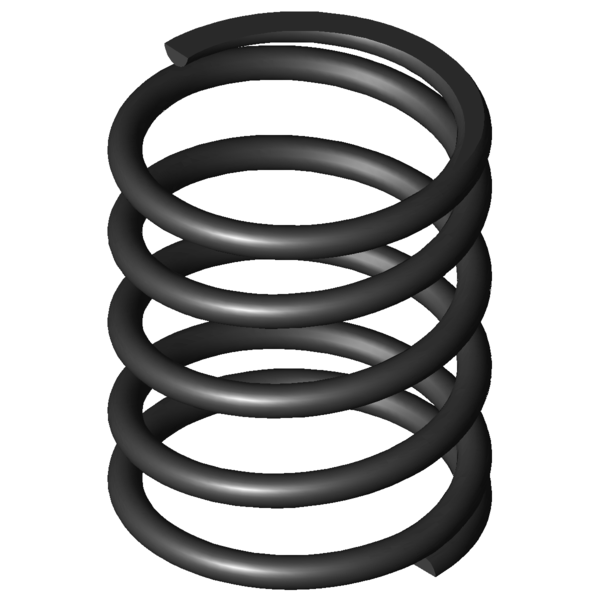

Home » Products » Compression springs » d-344b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm Scaled prices - Compression spring D-344B Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-344B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-344B Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 55 mm Outer coil diameter Dd 43.7 mm maximum diameter of mandrel Dh 56.8 mm minimum diameter of bush L0 66 mm unstressed spring length Lk mm buckling length Fn 496.641 N maximum force in static use Ln 31.88 mm Minimum length in static use sn 34.13 mm Maximum spring deflection in static use Fndyn 464.696 N maximum force in dynamic use Lndyn 34.07 mm Minimum length in dynamic use shdyn 25.45 mm Maximum stroke in dynamic use S 17.429 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 14.554 N/mm Spring rate Weight 134.0889 g weight of one spring Fntol 38.03 N (+/-) tolerance of maximum force in static use Fndtol 37.55 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm Datasheet download pdf file Metal spring characteristic Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm Metal spring characteristic download pdf file CAD data Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm force-path-calculation Compression spring D-344B Inquiry formular Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm Inquiry formular Compression spring D-344B Similar compression springs to Compression spring D-344B Spring steel Ø 5 x 50 x 66 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-344B EN 10270-1 5 55 66 496.641 31.88 34.13 3.5 14.554 100.0 | 100.0 | 100.0 | 100.0 VD-344B 1.4310 5 55 66 426.563 31.88 34.13 3.5 12.5 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263VH 46 60 2.149 EN 10270-1 99.399 13.74 46.26 45.5 | 74.8 | 46.9 | 14.8 D-289C-01 48 76 3.394 EN 10270-1 183.255 22.01 53.99 50.9 | 79.4 | 50.1 | 23.3 D-339J-21 58 78 7.795 EN 10270-1 376.4 29.7 48.3 72.2 | 89.8 | 73.2 | 53.6 D-318B 49 68 8.177 EN 10270-1 342.968 26.06 41.94 73.4 | 88.7 | 75.2 | 56.2 D-319 44 71 11.643 EN 10270-1 529.75 25.5 45.5 82.9 | 84.3 | 84.4 | 80.0 D-339J-20 58 50 12.125 EN 10270-1 336 22.28 27.72 81.5 | 86.9 | 74.4 | 83.3 D-339K 50 74.4 12.671 EN 10270-1 578.56 28.74 45.66 85.7 | 89.9 | 80.3 | 87.1 D-349A-04 50 70 12.704 EN 10270-1 344.411 42.89 27.11 85.6 | 95.1 | 74.4 | 87.3 D-344B 55 66 14.554 EN 10270-1 496.641 31.88 34.13 100.0 | 100.0 | 100.0 | 100.0 D-364E-08 70 65 15.44 EN 10270-1 584.108 27.17 37.83 90.4 | 89.3 | 87.6 | 94.2 D-364R-41 54 59.4 16.066 EN 10270-1 174.625 48.53 10.87 72.2 | 92.5 | 33.5 | 90.6 D-364J-02 56 77 20.681 EN 10270-1 876.677 34.61 42.39 76.9 | 91.6 | 68.6 | 70.4 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 73.0 | 92.9 | 74.9 | 51.2 D-364J-01 56 53 32.171 EN 10270-1 862.821 26.18 26.82 67.7 | 89.8 | 68.1 | 45.2 D-364J-21 48 63 34.696 EN 10270-1 1069.341 32.18 30.82 67.2 | 91.2 | 68.4 | 41.9 D-374B 56.3 64 36.682 EN 10270-1 919.309 38.94 25.06 64.9 | 91.3 | 63.7 | 39.7 D-375 56.3 80 36.682 EN 10270-1 1506.22 38.94 41.06 61.4 | 86.5 | 58.0 | 39.7 D-364R-81 46 66 37.509 EN 10270-1 581.382 50.5 15.5 64.4 | 89.0 | 65.4 | 38.8 D-364J-09 42 70 42.602 EN 10270-1 1284.016 39.86 30.14 61.6 | 87.2 | 63.5 | 34.2 D-380A 46.3 68 45.592 EN 10270-1 692.529 52.81 15.19 59.0 | 86.9 | 58.1 | 31.9 D-380 46.3 60 71.644 EN 10270-1 1562.682 38.19 21.81 51.0 | 84.8 | 47.8 | 20.3 D-389K 50 62.3 87.899 EN 10270-1 1754.76 42.34 19.96 48.5 | 85.6 | 43.4 | 16.6 D-404A 58 68 95.378 EN 10270-1 1865.54 48.44 19.56 47.3 | 84.8 | 42.0 | 15.3 D-405 58 75 95.378 EN 10270-1 2533.188 48.44 26.56 48.6 | 81.8 | 48.7 | 15.3 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-344B Country of origin: DE, German; Compression spring D-344B Product image - Compression springs D-344B QR-Code: Compression spring D-344B
