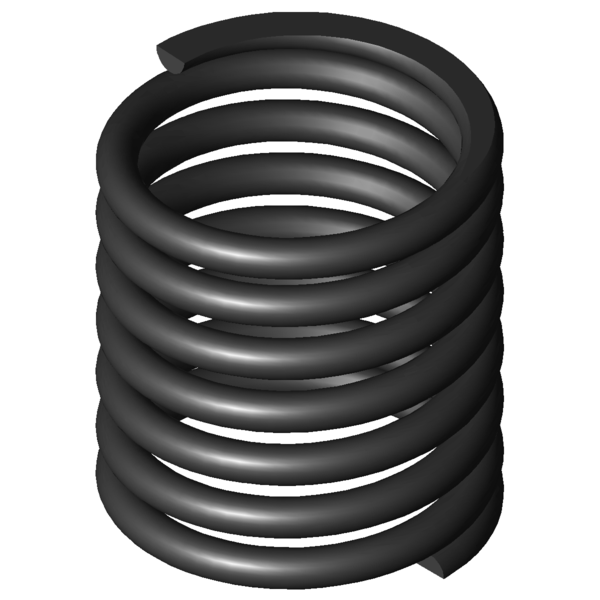

Home » Products » Compression springs » d-364r-41 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm Scaled prices - Compression spring D-364R-41 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1212 EUR 175 2.1185 EUR 250 2.0658 EUR 350 2.0208 EUR Compression spring Buy Product image Compression spring D-364R-41 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-41 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.6 mm Wire diameter Di mm Inner coil diameter D 48.4 mm Mean coil diameter De 54 mm Outer coil diameter Dd 41.4 mm maximum diameter of mandrel Dh 55.5 mm minimum diameter of bush L0 59.4 mm unstressed spring length Lk mm buckling length Fn 174.625 N maximum force in static use Ln 48.53 mm Minimum length in static use sn 10.87 mm Maximum spring deflection in static use Fndyn 122.105 N maximum force in dynamic use Lndyn 51.8 mm Minimum length in dynamic use shdyn 7.6 mm Maximum stroke in dynamic use S 9.782 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 16.066 N/mm Spring rate Weight 222.0255 g weight of one spring Fntol 40.25 N (+/-) tolerance of maximum force in static use Fndtol 39.44 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 2.34 mm (+/-) tolerance of unstressed spring length Price group AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm force-path-calculation Compression spring D-364R-41 Inquiry formular Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm Inquiry formular Compression spring D-364R-41 Similar compression springs to Compression spring D-364R-41 Spring steel Ø 5.6 x 48.4 x 59.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-41 EN 10270-1 5.6 54 59.4 174.625 48.53 10.87 5.5 16.066 100.0 | 100.0 | 100.0 | 100.0 VD-364R-41 1.4310 5.6 54 59.4 149.985 48.53 10.87 5.5 13.799 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263VH 46 60 2.149 EN 10270-1 99.399 13.74 46.26 43.3 | 76.3 | 40.2 | 13.4 D-289C-06 48 48 5.28 EN 10270-1 166.643 16.44 31.56 57.8 | 75.6 | 64.9 | 32.9 D-288Z-11 37 57.4 5.999 EN 10270-1 226.908 19.57 37.83 54.4 | 72.9 | 52.8 | 37.3 D-318B 49 68 8.177 EN 10270-1 342.968 26.06 41.94 57.5 | 83.2 | 38.4 | 50.9 D-313F 40 61.7 10.137 EN 10270-1 392.377 22.99 38.71 59.2 | 78.2 | 36.3 | 63.1 D-364R-30 69 56 11.233 EN 10270-1 218.719 36.53 19.47 76.2 | 90.8 | 67.8 | 69.9 D-339J-20 58 50 12.125 EN 10270-1 336 22.28 27.72 69.0 | 85.9 | 45.6 | 75.5 D-339K 50 74.4 12.671 EN 10270-1 578.56 28.74 45.66 63.4 | 84.3 | 27.0 | 78.9 D-349A-04 50 70 12.704 EN 10270-1 344.411 42.89 27.11 71.1 | 88.9 | 45.4 | 79.1 D-344B 55 66 14.554 EN 10270-1 496.641 31.88 34.13 72.2 | 92.5 | 33.5 | 90.6 D-364R-41 54 59.4 16.066 EN 10270-1 174.625 48.53 10.87 100.0 | 100.0 | 100.0 | 100.0 D-364J-02 56 77 20.681 EN 10270-1 876.677 34.61 42.39 63.7 | 90.6 | 22.8 | 77.7 D-349A-02 50 50 21.499 EN 10270-1 442.028 29.44 20.56 69.9 | 88.7 | 46.2 | 74.7 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 56.9 | 88.5 | 25.7 | 56.5 D-364J-01 56 53 32.171 EN 10270-1 862.821 26.18 26.82 58.3 | 94.6 | 30.4 | 49.9 D-364J-21 48 63 34.696 EN 10270-1 1069.341 32.18 30.82 55.3 | 93.8 | 25.8 | 46.3 D-374B 56.3 64 36.682 EN 10270-1 919.309 38.94 25.06 55.8 | 92.5 | 31.2 | 43.8 D-364R-81 46 66 37.509 EN 10270-1 581.382 50.5 15.5 60.8 | 89.5 | 50.1 | 42.8 D-380A 46.3 68 45.592 EN 10270-1 692.529 52.81 15.19 57.0 | 87.3 | 48.4 | 35.2 D-364J-20 48 45 53.972 EN 10270-1 1100.49 24.61 20.39 50.7 | 87.6 | 34.6 | 29.8 D-380 46.3 60 71.644 EN 10270-1 1562.682 38.19 21.81 48.0 | 91.2 | 30.5 | 22.4 D-379B 46.3 47 71.644 EN 10270-1 631.306 38.19 8.81 53.8 | 84.6 | 54.4 | 22.4 D-364R-03 39 64 74.127 EN 10270-1 1784.495 39.93 24.07 45.4 | 87.2 | 27.5 | 21.7 D-389K 50 62.3 87.899 EN 10270-1 1754.76 42.34 19.96 46.6 | 89.3 | 32.2 | 18.3 D-404A 58 68 95.378 EN 10270-1 1865.54 48.44 19.56 44.3 | 83.5 | 32.5 | 16.8 D-405 58 75 95.378 EN 10270-1 2533.188 48.44 26.56 40.5 | 80.8 | 23.9 | 16.8 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-364R-41 Country of origin: DE, German; Compression spring D-364R-41 Product image - Compression springs D-364R-41 QR-Code: Compression spring D-364R-41
