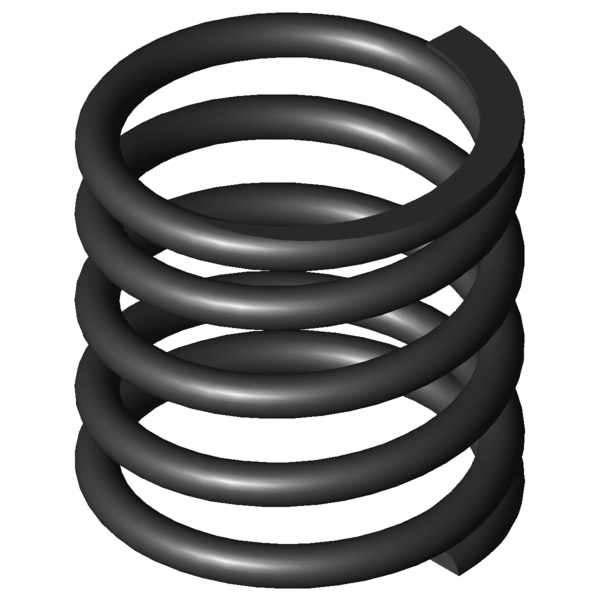

Home » Products » Compression springs » d-349a-02 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm Scaled prices - Compression spring D-349A-02 Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-349A-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-349A-02 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 45 mm Mean coil diameter De 50 mm Outer coil diameter Dd 38.7 mm maximum diameter of mandrel Dh 51.6 mm minimum diameter of bush L0 50 mm unstressed spring length Lk mm buckling length Fn 442.028 N maximum force in static use Ln 29.44 mm Minimum length in static use sn 20.56 mm Maximum spring deflection in static use Fndyn 393.439 N maximum force in dynamic use Lndyn 31.7 mm Minimum length in dynamic use shdyn 14.2 mm Maximum stroke in dynamic use S 13.846 mm pitch of spring n 3.25 pc. number of active coils nt pc. total number of coils R 21.499 N/mm Spring rate Weight 102.3952 g weight of one spring Fntol 49.5 N (+/-) tolerance of maximum force in static use Fndtol 47.7 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 1.3 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm Datasheet download pdf file Metal spring characteristic Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm Metal spring characteristic download pdf file CAD data Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm force-path-calculation Compression spring D-349A-02 Inquiry formular Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm Inquiry formular Compression spring D-349A-02 Similar compression springs to Compression spring D-349A-02 Spring steel Ø 5 x 45 x 50 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-349A-02 EN 10270-1 5 50 50 442.028 29.44 20.56 3.25 21.499 100.0 | 100.0 | 100.0 | 100.0 VD-349A-02 1.4310 5 50 50 379.471 29.45 20.55 3.25 18.466 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263D-12 42 45 0.505 EN 10270-1 7.243 30.65 14.35 36.9 | 72.7 | 35.7 | 2.3 D-263VH 46 60 2.149 EN 10270-1 99.399 13.74 46.26 39.5 | 75.1 | 33.5 | 10.0 D-289C-06 48 48 5.28 EN 10270-1 166.643 16.44 31.56 53.8 | 85.3 | 51.4 | 24.6 D-288K-11 33 50 5.684 EN 10270-1 171.22 19.87 30.13 51.3 | 74.0 | 53.5 | 26.4 D-288Z-20 33 48.3 8.732 EN 10270-1 254.76 19.13 29.18 59.6 | 74.2 | 64.0 | 40.6 D-339J-20 58 50 12.125 EN 10270-1 336 22.28 27.72 74.5 | 92.1 | 75.1 | 56.4 D-364R-41 54 59.4 16.066 EN 10270-1 174.625 48.53 10.87 69.9 | 88.7 | 46.2 | 74.7 D-349A-02 50 50 21.499 EN 10270-1 442.028 29.44 20.56 100.0 | 100.0 | 100.0 | 100.0 D-325 36 53.5 22.74 EN 10270-1 653.91 24.74 28.76 82.0 | 81.8 | 69.5 | 94.6 D-339N-03 41 52 24.545 EN 10270-1 592.036 27.88 24.12 85.6 | 89.4 | 80.0 | 87.6 D-364R-40 54 38 25.247 EN 10270-1 76.849 34.96 3.04 62.4 | 86.0 | 16.1 | 85.0 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 73.2 | 89.4 | 54.6 | 75.6 D-364J-01 56 53 32.171 EN 10270-1 862.821 26.18 26.82 74.1 | 91.5 | 63.9 | 66.8 D-364J-21 48 63 34.696 EN 10270-1 1069.341 32.18 30.82 68.2 | 88.8 | 54.0 | 62.0 D-364J-20 48 45 53.972 EN 10270-1 1100.49 24.61 20.39 67.3 | 92.3 | 69.7 | 39.8 D-355 37 51 55.517 EN 10270-1 1147.813 30.33 20.67 66.1 | 90.7 | 69.0 | 38.7 D-364R-80 46 42 58.942 EN 10270-1 324.181 36.5 5.5 57.7 | 86.4 | 50.0 | 36.5 D-359A-01 34 48 65.267 EN 10270-1 978.405 33.01 14.99 60.0 | 88.0 | 59.0 | 32.9 D-379B 46.3 47 71.644 EN 10270-1 631.306 38.19 8.81 58.4 | 88.7 | 56.4 | 30.0 D-380 46.3 60 71.644 EN 10270-1 1562.682 38.19 21.81 58.8 | 85.1 | 61.3 | 30.0 D-364J-08 42 44 76.683 EN 10270-1 1301.313 27.03 16.97 58.0 | 87.6 | 58.3 | 28.0 D-364K 38 48.6 77.589 EN 10270-1 1196.171 33.18 15.42 57.2 | 88.0 | 56.0 | 27.7 D-389K 50 62.3 87.899 EN 10270-1 1754.76 42.34 19.96 56.5 | 83.9 | 61.1 | 24.5 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-349A-02 Country of origin: DE, German; Compression spring D-349A-02 Product image - Compression springs D-349A-02 QR-Code: Compression spring D-349A-02
