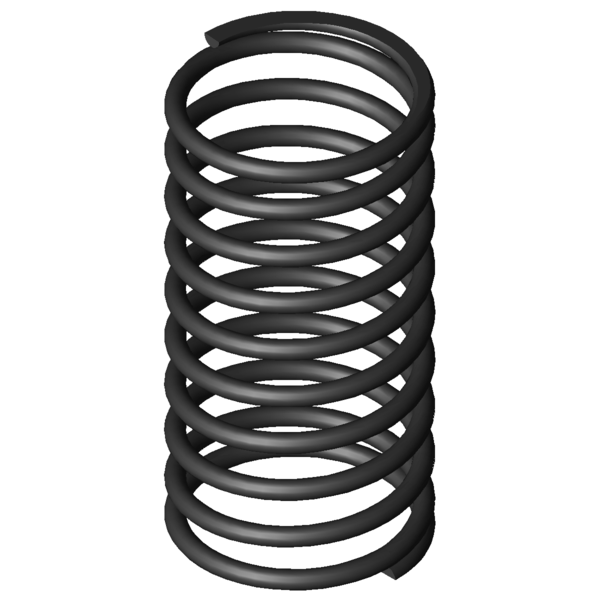

Home » Products » Compression springs » d-364r-32 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm Scaled prices - Compression spring D-364R-32 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3621 EUR 175 2.3490 EUR 250 2.3059 EUR 350 2.2597 EUR Compression spring Buy Product image Compression spring D-364R-32 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-32 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.6 mm Wire diameter Di mm Inner coil diameter D 63.4 mm Mean coil diameter De 69 mm Outer coil diameter Dd 56 mm maximum diameter of mandrel Dh 71 mm minimum diameter of bush L0 136 mm unstressed spring length Lk mm buckling length Fn 292.723 N maximum force in static use Ln 72.71 mm Minimum length in static use sn 63.29 mm Maximum spring deflection in static use Fndyn 260.539 N maximum force in dynamic use Lndyn 79.67 mm Minimum length in dynamic use shdyn 56.33 mm Maximum stroke in dynamic use S 15.341 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 4.625 N/mm Spring rate Weight 407.1691 g weight of one spring Fntol 33.7 N (+/-) tolerance of maximum force in static use Fndtol 31.38 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 5.94 mm (+/-) tolerance of unstressed spring length Price group AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm force-path-calculation Compression spring D-364R-32 Inquiry formular Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm Inquiry formular Compression spring D-364R-32 Similar compression springs to Compression spring D-364R-32 Spring steel Ø 5.6 x 63.4 x 136 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-32 EN 10270-1 5.6 69 136 292.723 72.71 63.29 8.5 4.625 100.0 | 100.0 | 100.0 | 100.0 VD-364R-32 1.4310 5.6 69 136 251.418 72.71 63.29 8.5 3.973 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313R-01 70 133 2.592 EN 10270-1 269.247 29.12 103.88 73.9 | 89.3 | 76.5 | 56.0 D-313S 70 145 2.592 EN 10270-1 300.349 29.12 115.88 73.3 | 87.9 | 76.0 | 56.0 D-313B 60 122 2.725 EN 10270-1 262.424 25.7 96.3 72.3 | 80.3 | 77.7 | 58.9 D-339F 75 146 3.406 EN 10270-1 387.897 32.12 113.88 75.9 | 88.5 | 65.5 | 73.6 D-364R-32 69 136 4.625 EN 10270-1 292.723 72.71 63.29 100.0 | 100.0 | 100.0 | 100.0 D-339J-22 58 120 4.96 EN 10270-1 389.4 41.5 78.5 85.1 | 84.2 | 77.9 | 93.2 D-339Z-01 75 117 5.304 EN 10270-1 438.119 34.4 82.61 82.7 | 89.1 | 71.7 | 87.2 D-364E-12 70 147 6.317 EN 10270-1 609.416 50.52 96.48 75.5 | 96.4 | 56.8 | 73.2 D-364E-04 80 120 6.441 EN 10270-1 531.61 37.47 82.53 76.2 | 90.9 | 65.9 | 71.8 D-364R-61 77 153 6.707 EN 10270-1 655.744 55.23 97.77 71.4 | 90.6 | 54.7 | 69.0 D-344A-14 60 120 6.958 EN 10270-1 520.195 45.24 74.76 75.0 | 88.2 | 70.5 | 66.5 D-364R-43 54 135 7.069 EN 10270-1 275.394 96.04 38.96 78.6 | 92.5 | 77.8 | 65.4 D-340 68 120 7.275 EN 10270-1 629.924 33.42 86.58 71.8 | 92.0 | 59.8 | 63.6 D-346 55 130 9.261 EN 10270-1 793.004 44.38 85.63 64.5 | 88.2 | 55.4 | 49.9 D-364G 60 128 10.47 EN 10270-1 829.99 48.73 79.27 64.9 | 93.1 | 57.6 | 44.2 D-371 69.3 155 11.669 EN 10270-1 1156.284 55.91 99.09 58.8 | 92.1 | 44.6 | 39.6 D-389G 75 153 14.144 EN 10270-1 1289.931 61.8 91.2 55.2 | 87.0 | 46.0 | 32.7 D-364R-71 61 120 14.429 EN 10270-1 974.502 52.46 67.54 61.3 | 90.0 | 61.9 | 32.1 D-376A 56.3 140 15.104 EN 10270-1 958.149 76.56 63.44 61.7 | 89.2 | 65.2 | 30.6 D-370 69.3 105 18.338 EN 10270-1 1188.958 40.16 64.84 56.5 | 90.8 | 39.7 | 39.0 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-364R-32 Country of origin: DE, German; Compression spring D-364R-32 Product image - Compression springs D-364R-32 QR-Code: Compression spring D-364R-32
