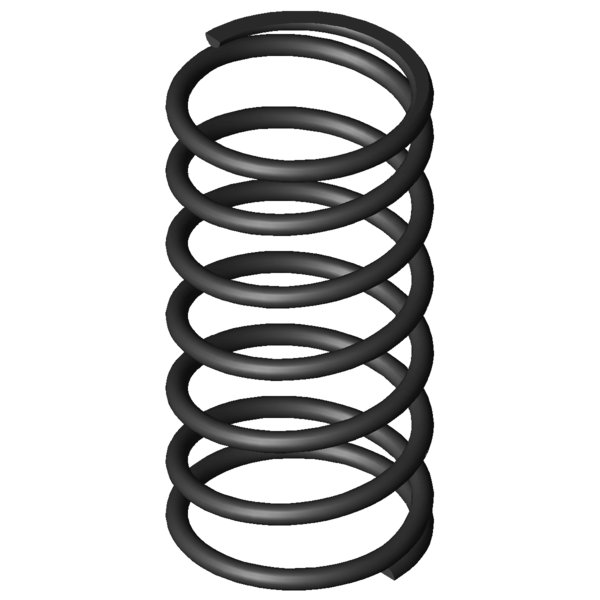

Home » Products » Compression springs » d-344a-14 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm Scaled prices - Compression spring D-344A-14 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.1813 EUR 175 2.1735 EUR 250 2.1481 EUR 350 2.0967 EUR Compression spring Buy Product image Compression spring D-344A-14 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-344A-14 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 55 mm Mean coil diameter De 60 mm Outer coil diameter Dd 48.5 mm maximum diameter of mandrel Dh 62.2 mm minimum diameter of bush L0 120 mm unstressed spring length Lk mm buckling length Fn 520.195 N maximum force in static use Ln 45.24 mm Minimum length in static use sn 74.76 mm Maximum spring deflection in static use Fndyn 492.641 N maximum force in dynamic use Lndyn 49.2 mm Minimum length in dynamic use shdyn 45.2 mm Maximum stroke in dynamic use S 20.909 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 6.958 N/mm Spring rate Weight 201.1334 g weight of one spring Fntol 33 N (+/-) tolerance of maximum force in static use Fndtol 32.6 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 3.6 mm (+/-) tolerance of unstressed spring length Price group AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm Datasheet download pdf file Metal spring characteristic Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm Metal spring characteristic download pdf file CAD data Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm force-path-calculation Compression spring D-344A-14 Inquiry formular Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm Inquiry formular Compression spring D-344A-14 Similar compression springs to Compression spring D-344A-14 Spring steel Ø 5 x 55 x 120 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-344A-14 EN 10270-1 5 60 120 520.195 45.24 74.76 5.5 6.958 100.0 | 100.0 | 100.0 | 100.0 VD-344A-14 1.4310 5 60 120 446.733 45.25 74.75 5.5 5.976 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-289C-02 48 115 2.16 EN 10270-1 181.589 30.93 84.07 57.6 | 79.9 | 61.9 | 31.0 D-289 55 117 2.196 EN 10270-1 206.145 23.12 93.88 58.5 | 84.4 | 59.6 | 31.6 D-313R-01 70 133 2.592 EN 10270-1 269.247 29.12 103.88 61.5 | 85.3 | 61.9 | 37.2 D-313B 60 122 2.725 EN 10270-1 262.424 25.7 96.3 64.4 | 90.1 | 64.0 | 39.2 D-313E-11 48 120 3.258 EN 10270-1 274.052 35.89 84.11 67.2 | 84.0 | 70.8 | 46.8 D-364R-32 69 136 4.625 EN 10270-1 292.723 72.71 63.29 75.0 | 88.2 | 70.5 | 66.5 D-339J-22 58 120 4.96 EN 10270-1 389.4 41.5 78.5 84.0 | 95.6 | 85.0 | 71.3 D-339Z-01 75 117 5.304 EN 10270-1 438.119 34.4 82.61 85.4 | 92.5 | 87.4 | 76.2 D-314 54 99 5.961 EN 10270-1 431.102 26.68 72.32 86.5 | 84.2 | 89.8 | 85.7 D-344A-14 60 120 6.958 EN 10270-1 520.195 45.24 74.76 100.0 | 100.0 | 100.0 | 100.0 D-364R-43 54 135 7.069 EN 10270-1 275.394 96.04 38.96 80.1 | 89.4 | 52.5 | 98.4 D-340 68 120 7.275 EN 10270-1 629.924 33.42 86.58 92.1 | 96.1 | 84.5 | 95.6 D-339L 50 112 8.063 EN 10270-1 580.403 40.02 71.98 89.4 | 88.9 | 93.0 | 86.3 D-346 55 130 9.261 EN 10270-1 793.004 44.38 85.63 82.1 | 94.7 | 76.5 | 75.1 D-345A 55 100 9.261 EN 10270-1 515.163 44.38 55.63 84.5 | 91.7 | 86.7 | 75.1 D-364G 60 128 10.47 EN 10270-1 829.99 48.73 79.27 79.9 | 94.9 | 78.5 | 66.5 D-364J-03 56 117 13.161 EN 10270-1 906.778 48.1 68.9 73.8 | 93.9 | 74.8 | 52.9 D-364R-71 61 120 14.429 EN 10270-1 974.502 52.46 67.54 71.3 | 93.9 | 71.9 | 48.2 D-376A 56.3 140 15.104 EN 10270-1 958.149 76.56 63.44 67.3 | 86.3 | 69.6 | 46.1 D-370 69.3 105 18.338 EN 10270-1 1188.958 40.16 64.84 62.6 | 84.5 | 65.2 | 37.9 D-376 56.3 115 23.343 EN 10270-1 1424.186 53.99 61.01 59.5 | 89.7 | 59.1 | 29.8 D-375A 56.3 94 23.343 EN 10270-1 933.982 53.99 40.01 56.1 | 83.8 | 54.6 | 29.8 D-406A 58 147 39.273 EN 10270-1 2050.686 94.78 52.22 48.5 | 80.3 | 47.6 | 17.7 D-406 58 110 60.695 EN 10270-1 2611.224 66.98 43.02 44.6 | 83.6 | 38.7 | 11.5 D-405A 58 98 60.695 EN 10270-1 1882.881 66.98 31.02 48.7 | 81.9 | 47.9 | 16.4 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-344A-14 Country of origin: DE, German; Compression spring D-344A-14 Product image - Compression springs D-344A-14 QR-Code: Compression spring D-344A-14
