Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

Scaled prices - Compression spring D-364G

Quantity	Single price [EUR]
1	13.5300 EUR
2	10.7800 EUR
3	6.2300 EUR
7	4.2800 EUR
17	2.7100 EUR
37	2.3100 EUR
75	2.2200 EUR
125	2.1813 EUR
175	2.1735 EUR
250	2.1481 EUR
350	2.0967 EUR

Compression spring Buy

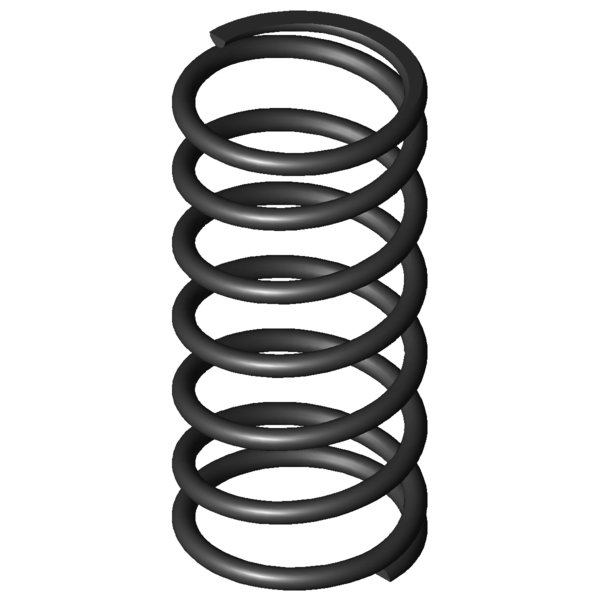

Product image Compression spring D-364G

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364G

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	54.5	mm	Mean coil diameter
De	60	mm	Outer coil diameter
Dd	47.5	mm	maximum diameter of mandrel
Dh	62.2	mm	minimum diameter of bush
L0	128	mm	unstressed spring length
Lk		mm	buckling length
Fn	829.99	N	maximum force in static use
Ln	48.73	mm	Minimum length in static use
sn	79.27	mm	Maximum spring deflection in static use
Fndyn	790.835	N	maximum force in dynamic use
Lndyn	52.47	mm	Minimum length in dynamic use
shdyn	33.3	mm	Maximum stroke in dynamic use
S	22.273	mm	pitch of spring
n	5.5	pc.	number of active coils
nt		pc.	total number of coils
R	10.47	N/mm	Spring rate
Weight	241.1589	g	weight of one spring
Fntol	44.26	N	(+/-) tolerance of maximum force in static use
Fndtol	43.67	N	(+/-) tolerance of maximum dynamic force
Detol	1	mm	(+/-) tolerances of outer coil diameter
L0tol	3.04	mm	(+/-) tolerance of unstressed spring length
Price group	AG	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

force-path-calculation Compression spring D-364G

Inquiry formular Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

Inquiry formular Compression spring D-364G

Similar compression springs to Compression spring D-364G Spring steel Ø 5.5 x 54.5 x 128 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364G	EN 10270-1	5.5	60	128	829.99	48.73	79.27	5.5	10.47	100.0 \| 100.0 \| 100.0 \| 100.0
VD-364G	1.4310	5.5	60	128	712.875	48.73	79.27	5.5	8.993	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-289	55	117	2.196	EN 10270-1	206.145	23.12	93.88	52.0 \| 80.4 \| 54.6 \| 21.0
D-313R-01	70	133	2.592	EN 10270-1	269.247	29.12	103.88	54.7 \| 84.9 \| 54.4 \| 24.8
D-313B	60	122	2.725	EN 10270-1	262.424	25.7	96.3	56.6 \| 86.9 \| 57.0 \| 26.0
D-313E-11	48	120	3.258	EN 10270-1	274.052	35.89	84.11	58.2 \| 79.7 \| 63.6 \| 31.1
D-315	54	150	3.793	EN 10270-1	427.309	37.36	112.64	59.9 \| 82.7 \| 60.9 \| 36.2
D-364R-32	69	136	4.625	EN 10270-1	292.723	72.71	63.29	64.9 \| 93.1 \| 57.6 \| 44.2
D-339J-22	58	120	4.96	EN 10270-1	389.4	41.5	78.5	70.4 \| 90.7 \| 73.0 \| 47.4
D-346A	55	150	5.993	EN 10270-1	520.611	63.13	86.88	74.5 \| 89.3 \| 77.0 \| 57.2
D-344A-14	60	120	6.958	EN 10270-1	520.195	45.24	74.76	79.9 \| 94.9 \| 78.5 \| 66.5
D-364R-43	54	135	7.069	EN 10270-1	275.394	96.04	38.96	67.7 \| 94.3 \| 41.2 \| 67.5
D-340	68	120	7.275	EN 10270-1	629.924	33.42	86.58	81.4 \| 91.0 \| 83.7 \| 69.5
D-346	55	130	9.261	EN 10270-1	793.004	44.38	85.63	92.1 \| 93.7 \| 94.1 \| 88.4
D-364G	60	128	10.47	EN 10270-1	829.99	48.73	79.27	100.0 \| 100.0 \| 100.0 \| 100.0
D-351B	45	130	11.054	EN 10270-1	731.563	63.82	66.18	89.6 \| 88.1 \| 85.8 \| 94.7
D-364J-03	56	117	13.161	EN 10270-1	906.778	48.1	68.9	87.9 \| 94.9 \| 89.2 \| 79.6
D-364J-23	48	135	14.287	EN 10270-1	976.5	66.65	68.35	83.5 \| 91.6 \| 85.6 \| 73.3
D-364R-71	61	120	14.429	EN 10270-1	974.502	52.46	67.54	84.1 \| 94.6 \| 85.2 \| 72.6
D-376A	56.3	140	15.104	EN 10270-1	958.149	76.56	63.44	81.2 \| 90.9 \| 83.3 \| 69.3
D-376	56.3	115	23.343	EN 10270-1	1424.186	53.99	61.01	67.6 \| 90.3 \| 67.6 \| 44.9
D-382	46.3	135	29.501	EN 10270-1	1777.615	74.74	60.26	61.1 \| 86.4 \| 61.4 \| 35.5
D-401	71	140	30.342	EN 10270-1	2169.66	68.49	71.51	60.1 \| 81.6 \| 64.2 \| 34.5
D-406A	58	147	39.273	EN 10270-1	2050.686	94.78	52.22	54.7 \| 84.2 \| 53.2 \| 26.7
D-406	58	110	60.695	EN 10270-1	2611.224	66.98	43.02	48.0 \| 83.8 \| 43.0 \| 17.3
D-405A	58	98	60.695	EN 10270-1	1882.881	66.98	31.02	46.5 \| 80.7 \| 41.6 \| 17.2
D-431	73	135	74.077	EN 10270-1	3794.636	83.77	51.23	44.9 \| 77.3 \| 43.2 \| 14.1
D-414M-02	57	138	75.548	EN 10270-1	2850.281	100.27	37.73	45.1 \| 83.0 \| 38.4 \| 13.9
D-412	48	135	76.706	EN 10270-1	3194.8	93.35	41.65	44.7 \| 81.2 \| 39.3 \| 13.7
D-414K	63	111	77.178	EN 10270-1	2768.916	75.12	35.88	44.1 \| 81.0 \| 37.6 \| 13.6

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-364G
