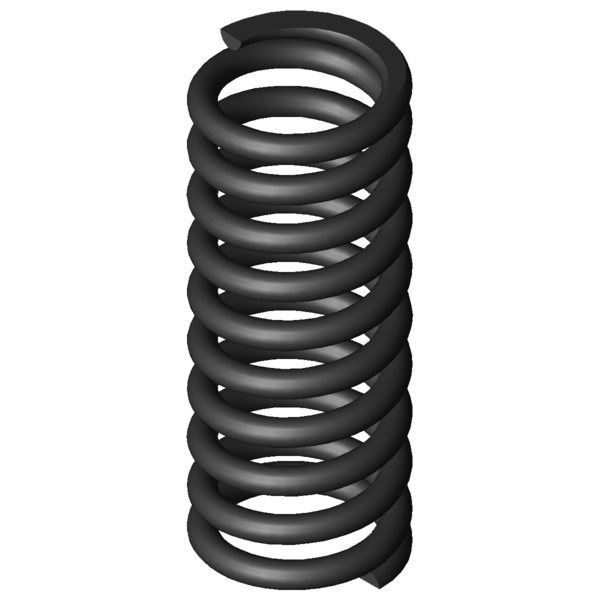

Home » Products » Compression springs » d-406a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm Scaled prices - Compression spring D-406A Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 4.1600 EUR 37 3.5700 EUR 75 3.5200 EUR 125 3.5057 EUR 175 3.4790 EUR 250 3.4039 EUR 350 3.3561 EUR Compression spring Buy Product image Compression spring D-406A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-406A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 8 mm Wire diameter Di mm Inner coil diameter D 50 mm Mean coil diameter De 58 mm Outer coil diameter Dd 40.8 mm maximum diameter of mandrel Dh 59.5 mm minimum diameter of bush L0 147 mm unstressed spring length Lk mm buckling length Fn 2050.686 N maximum force in static use Ln 94.78 mm Minimum length in static use sn 52.22 mm Maximum spring deflection in static use Fndyn 1839.174 N maximum force in dynamic use Lndyn 100.17 mm Minimum length in dynamic use shdyn 30.18 mm Maximum stroke in dynamic use S 16.353 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 39.273 N/mm Spring rate Weight 655.3291 g weight of one spring Fntol 136 N (+/-) tolerance of maximum force in static use Fndtol 133 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.7 mm (+/-) tolerance of unstressed spring length Price group AM - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm Datasheet download pdf file Metal spring characteristic Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm Metal spring characteristic download pdf file CAD data Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm force-path-calculation Compression spring D-406A Inquiry formular Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm Inquiry formular Compression spring D-406A Similar compression springs to Compression spring D-406A Spring steel Ø 8 x 50 x 147 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-406A EN 10270-1 8 58 147 2050.686 94.78 52.22 8.5 39.273 100.0 | 100.0 | 100.0 | 100.0 VD-406A 1.4310 8 58 147 1761.325 94.78 52.22 8.5 33.732 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-344A-14 60 120 6.958 EN 10270-1 520.195 45.24 74.76 48.5 | 80.3 | 47.6 | 17.7 D-364R-43 54 135 7.069 EN 10270-1 275.394 96.04 38.96 49.0 | 85.0 | 44.0 | 18.0 D-364J-04 56 175 8.516 EN 10270-1 908.3 68.34 104.64 50.8 | 83.1 | 47.1 | 22.1 D-346 55 130 9.261 EN 10270-1 793.004 44.38 85.63 51.8 | 81.9 | 49.8 | 23.6 D-364G 60 128 10.47 EN 10270-1 829.99 48.73 79.27 54.7 | 84.2 | 53.2 | 26.7 D-371 69.3 155 11.669 EN 10270-1 1156.284 55.91 99.09 56.7 | 85.8 | 54.5 | 29.7 D-364J-03 56 117 13.161 EN 10270-1 906.778 48.1 68.9 58.4 | 81.6 | 60.0 | 33.5 D-364R-71 61 120 14.429 EN 10270-1 974.502 52.46 67.54 61.0 | 83.9 | 62.4 | 36.7 D-376A 56.3 140 15.104 EN 10270-1 958.149 76.56 63.44 64.4 | 90.4 | 64.5 | 38.5 D-377 56.3 175 15.104 EN 10270-1 1486.8 76.56 98.44 62.6 | 86.6 | 62.8 | 38.5 D-364R-83 46 150 16.504 EN 10270-1 833.439 99.5 50.5 64.9 | 84.1 | 68.7 | 42.0 D-382A 46.3 152 18.574 EN 10270-1 756.02 111.3 40.7 63.3 | 85.1 | 57.4 | 47.3 D-376 56.3 115 23.343 EN 10270-1 1424.186 53.99 61.01 73.9 | 84.7 | 77.5 | 59.4 D-389M 50 145 32.384 EN 10270-1 1751.521 90.91 54.09 88.1 | 90.8 | 91.0 | 82.5 D-406A 58 147 39.273 EN 10270-1 2050.686 94.78 52.22 100.0 | 100.0 | 100.0 | 100.0 D-389N-03 46 152 41.235 EN 10270-1 2380.938 94.26 57.74 90.5 | 87.8 | 88.3 | 95.2 D-406 58 110 60.695 EN 10270-1 2611.224 66.98 43.02 78.9 | 91.6 | 80.5 | 64.7 D-414M-02 57 138 75.548 EN 10270-1 2850.281 100.27 37.73 72.6 | 93.7 | 72.1 | 52.0 D-437 60 165 95.882 EN 10270-1 4632.316 116.69 48.31 66.0 | 88.6 | 68.4 | 41.0 D-445 55 140 139.746 EN 10270-1 4132.296 110.43 29.57 57.1 | 90.0 | 53.1 | 28.1 D-504 60 175 149.153 EN 10270-1 7010.178 128 47 56.8 | 84.5 | 59.6 | 26.3 D-502 60 120 230.509 EN 10270-1 6834.412 90.35 29.65 48.0 | 83.7 | 43.4 | 17.0 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring D-406A Country of origin: DE, German; Compression spring D-406A Product image - Compression springs D-406A QR-Code: Compression spring D-406A
