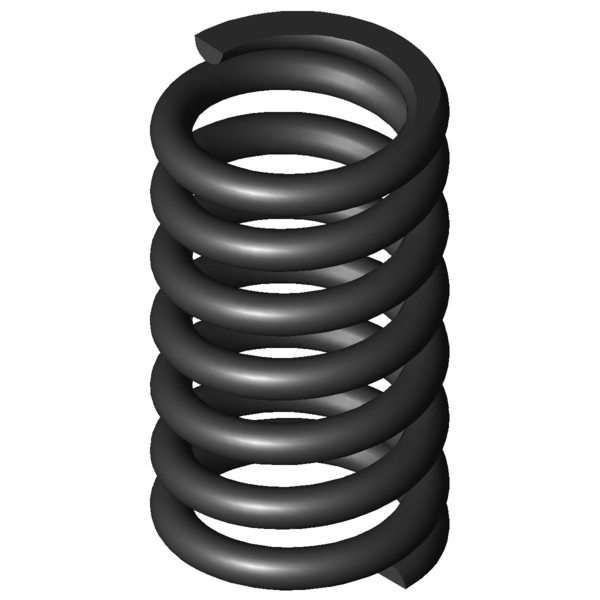

Home » Products » Compression springs » d-414k Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm Scaled prices - Compression spring D-414K Quantity Single price [EUR] 1 15.7400 EUR 2 12.5400 EUR 3 8.4100 EUR 7 6.6100 EUR 17 5.0200 EUR 37 4.3300 EUR 75 4.2600 EUR 125 4.2510 EUR 175 4.2214 EUR 250 4.1716 EUR 350 4.0828 EUR Compression spring Buy Product image Compression spring D-414K Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-414K Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 9 mm Wire diameter Di mm Inner coil diameter D 54 mm Mean coil diameter De 63 mm Outer coil diameter Dd 43 mm maximum diameter of mandrel Dh 65 mm minimum diameter of bush L0 111 mm unstressed spring length Lk mm buckling length Fn 2768.916 N maximum force in static use Ln 75.12 mm Minimum length in static use sn 35.88 mm Maximum spring deflection in static use Fndyn 2475.099 N maximum force in dynamic use Lndyn 78.93 mm Minimum length in dynamic use shdyn 18.52 mm Maximum stroke in dynamic use S 18.545 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 77.178 N/mm Spring rate Weight 639.8236 g weight of one spring Fntol 195 N (+/-) tolerance of maximum force in static use Fndtol 191 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 2 mm (+/-) tolerance of unstressed spring length Price group AP - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm Datasheet download pdf file Metal spring characteristic Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm Metal spring characteristic download pdf file CAD data Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm force-path-calculation Compression spring D-414K Inquiry formular Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm Inquiry formular Compression spring D-414K Similar compression springs to Compression spring D-414K Spring steel Ø 9 x 54 x 111 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-414K EN 10270-1 9 63 111 2768.916 75.12 35.88 5.5 77.178 100.0 | 100.0 | 100.0 | 100.0 VD-414K 1.4310 9 63 111 2378.21 75.12 35.88 5.5 66.288 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364G 60 128 10.47 EN 10270-1 829.99 48.73 79.27 44.1 | 81.0 | 37.6 | 13.6 D-369C 78.3 110 12.285 EN 10270-1 845.433 41.18 68.82 46.8 | 83.2 | 41.3 | 15.9 D-364J-03 56 117 13.161 EN 10270-1 906.778 48.1 68.9 47.0 | 81.6 | 42.4 | 17.1 D-364R-71 61 120 14.429 EN 10270-1 974.502 52.46 67.54 49.4 | 85.3 | 44.2 | 18.7 D-364F 60 85.4 16.454 EN 10270-1 829.093 35.01 50.39 49.9 | 77.8 | 50.6 | 21.3 D-370 69.3 105 18.338 EN 10270-1 1188.958 40.16 64.84 52.7 | 85.2 | 49.1 | 23.8 D-389F 75 102 22.226 EN 10270-1 1279.828 44.42 57.58 55.9 | 84.6 | 54.3 | 28.8 D-364R-70 61 85 22.673 EN 10270-1 1071.318 37.75 47.25 55.6 | 80.0 | 57.3 | 29.4 D-376 56.3 115 23.343 EN 10270-1 1424.186 53.99 61.01 56.9 | 85.3 | 55.1 | 30.2 D-375A 56.3 94 23.343 EN 10270-1 933.982 53.99 40.01 57.8 | 81.3 | 61.7 | 30.2 D-400 71 95 47.68 EN 10270-1 2173.994 49.4 45.6 76.0 | 87.7 | 78.6 | 61.8 D-389N-02 46 110 58.907 EN 10270-1 2345.594 70.18 39.82 82.3 | 83.3 | 87.4 | 76.3 D-406 58 110 60.695 EN 10270-1 2611.224 66.98 43.02 87.0 | 93.4 | 88.9 | 78.7 D-405A 58 98 60.695 EN 10270-1 1882.881 66.98 31.02 81.9 | 89.7 | 77.2 | 78.7 D-414K 63 111 77.178 EN 10270-1 2768.916 75.12 35.88 100.0 | 100.0 | 100.0 | 100.0 D-409B 50 110 86.65 EN 10270-1 3002.418 75.35 34.65 90.9 | 89.1 | 94.4 | 89.1 D-414M-01 57 91 120.877 EN 10270-1 2608.527 69.42 21.58 77.3 | 90.8 | 77.2 | 63.8 D-436 60 110 148.182 EN 10270-1 4065.739 82.56 27.44 73.1 | 94.8 | 72.3 | 52.1 D-502 60 120 230.509 EN 10270-1 6834.412 90.35 29.65 61.6 | 89.9 | 61.6 | 33.5 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-414K Country of origin: DE, German; Compression spring D-414K Product image - Compression springs D-414K QR-Code: Compression spring D-414K
