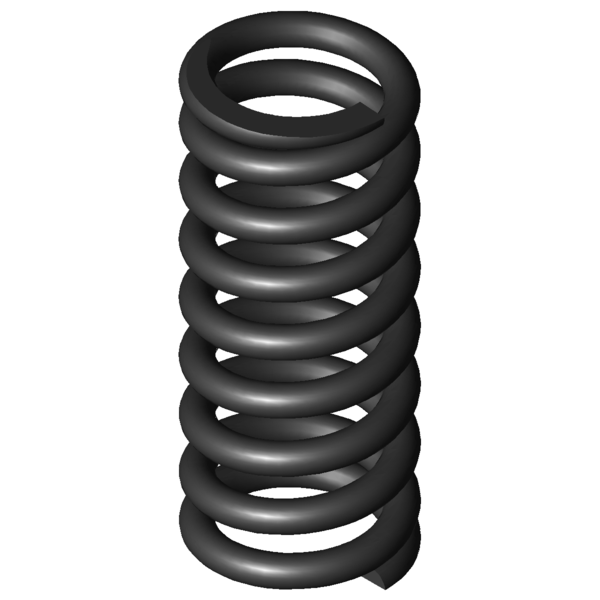

Home » Products » Compression springs » d-389n-02 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm Scaled prices - Compression spring D-389N-02 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2451 EUR 175 3.2080 EUR 250 3.1837 EUR 350 3.1130 EUR Compression spring Buy Product image Compression spring D-389N-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389N-02 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 7 mm Wire diameter Di - mm Inner coil diameter D 39 mm Mean coil diameter De 46 mm Outer coil diameter Dd 31 mm maximum diameter of mandrel Dh 47.4 mm minimum diameter of bush L0 110 mm unstressed spring length Lk mm buckling length Fn 2345.594 N maximum force in static use Ln 70.18 mm Minimum length in static use sn 39.82 mm Maximum spring deflection in static use Fndyn 2108.876 N maximum force in dynamic use Lndyn 74.2 mm Minimum length in dynamic use shdyn 13.66 mm Maximum stroke in dynamic use S 14.714 mm pitch of spring n 7 pc. number of active coils nt - pc. total number of coils R 58.907 N/mm Spring rate Weight 335.4466 g weight of one spring Fntol 149 N (+/-) tolerance of maximum force in static use Fndtol 146 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.88 mm (+/-) tolerance of unstressed spring length Price group AL - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm Metal spring characteristic download pdf file CAD data Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm force-path-calculation Compression spring D-389N-02 Inquiry formular Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm Inquiry formular Compression spring D-389N-02 Similar compression springs to Compression spring D-389N-02 Spring steel Ø 7 x 39 x 110 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389N-02 EN 10270-1 7 46 110 2345.594 70.18 39.82 7 58.907 100.0 | 100.0 | 100.0 | 100.0 VD-389N-02 1.4310 7 46 110 2014.62 70.18 39.82 7 50.595 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339N-05 41 115 10.107 EN 10270-1 607.933 54.85 60.15 48.7 | 83.0 | 46.1 | 17.2 D-351B 45 130 11.054 EN 10270-1 731.563 63.82 66.18 49.7 | 84.6 | 45.7 | 18.8 D-351A 45 110 13.265 EN 10270-1 731.563 54.85 55.15 54.7 | 89.8 | 51.7 | 22.5 D-351 45 95.5 18.089 EN 10270-1 951.641 42.89 52.61 58.1 | 85.4 | 58.1 | 30.7 D-364J-22 48 92 22.079 EN 10270-1 993.5 47 45 63.0 | 86.0 | 65.4 | 37.5 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 62.3 | 84.0 | 64.0 | 38.8 D-364R-82 46 102 24.27 EN 10270-1 740.242 71.5 30.5 62.7 | 92.8 | 54.1 | 41.2 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 69.3 | 86.2 | 73.1 | 48.5 D-364J-10 42 102 29.494 EN 10270-1 1454.422 52.69 49.31 69.7 | 87.5 | 71.4 | 50.1 D-381A 46.3 100 29.501 EN 10270-1 745.094 74.74 25.26 63.7 | 93.4 | 47.6 | 50.1 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 78.8 | 87.8 | 81.8 | 66.9 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 83.7 | 86.8 | 87.9 | 76.4 D-381 46.3 90 45.592 EN 10270-1 1695.55 52.81 37.19 83.5 | 90.4 | 82.8 | 77.4 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 93.1 | 91.1 | 90.5 | 97.8 D-389N-02 46 110 58.907 EN 10270-1 2345.594 70.18 39.82 100.0 | 100.0 | 100.0 | 100.0 D-389A-07 39 115 64.126 EN 10270-1 1883.135 85.63 29.37 87.0 | 92.0 | 77.0 | 91.9 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 80.0 | 91.1 | 66.7 | 82.2 D-409B 50 110 86.65 EN 10270-1 3002.418 75.35 34.65 81.2 | 93.2 | 82.6 | 68.0 D-411 48 90 118.545 EN 10270-1 2839.164 66.05 23.95 69.8 | 88.4 | 71.4 | 49.7 D-414AC 42 110 124.903 EN 10270-1 2168.015 92.64 17.36 69.4 | 92.9 | 68.0 | 47.2 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-389N-02 Country of origin: DE, German; Compression spring D-389N-02 Product image - Compression springs D-389N-02 QR-Code: Compression spring D-389N-02
