Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

Scaled prices - Compression spring D-536

Quantity	Single price [EUR]
1	56.6900 EUR
2	45.1600 EUR
3	43.4800 EUR
7	39.3200 EUR
17	36.2500 EUR
37	33.7800 EUR
75	33.0100 EUR
125	32.9218 EUR
175	32.3473 EUR
250	32.2411 EUR
350	32.0835 EUR

Compression spring Buy

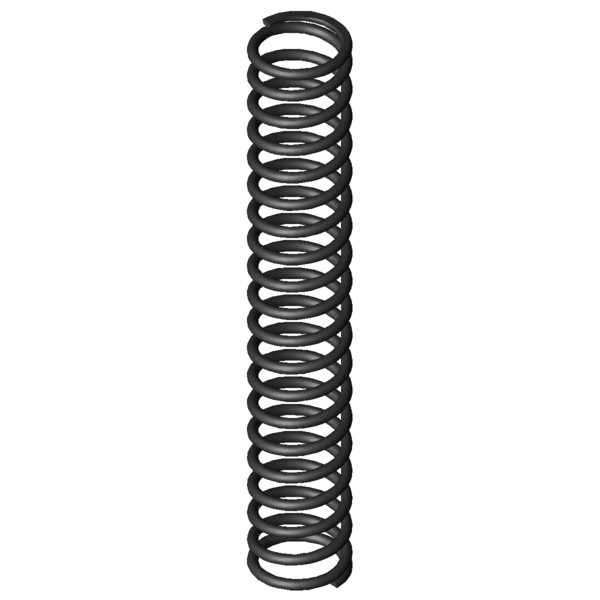

Product image Compression spring D-536

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-536

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	12	mm	Wire diameter
Di		mm	Inner coil diameter
D	98	mm	Mean coil diameter
De	110	mm	Outer coil diameter
Dd		mm	maximum diameter of mandrel
Dh		mm	minimum diameter of bush
L0	670	mm	unstressed spring length
Lk	480	mm	buckling length
Fn	4605.304	N	maximum force in static use
Ln	290.41	mm	Minimum length in static use
sn	379.59	mm	Maximum spring deflection in static use
Fndyn		N	maximum force in dynamic use
Lndyn		mm	Minimum length in dynamic use
shdyn		mm	Maximum stroke in dynamic use
S	35.568	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	12.132	N/mm	Spring rate
Weight	5642.3839	g	weight of one spring
Fntol	190	N	(+/-) tolerance of maximum force in static use
Fndtol		N	(+/-) tolerance of maximum dynamic force
Detol	1.5	mm	(+/-) tolerances of outer coil diameter
L0tol	9.99	mm	(+/-) tolerance of unstressed spring length
Price group	BG	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

force-path-calculation Compression spring D-536

Inquiry formular Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

Inquiry formular Compression spring D-536

Similar compression springs to Compression spring D-536 Spring steel Ø 12 x 98 x 670 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-536	EN 10270-1	12	110	670	4605.304	290.41	379.59	18.5	12.132	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-393A	108	630	3.091	EN 10270-1	1452.405	160.11	469.89	56.0 \| 86.3 \| 56.2 \| 25.5
D-393	108	570	3.338	EN 10270-1	1403.939	149.44	420.56	57.1 \| 83.3 \| 60.4 \| 27.5
D-418	135	690	4.173	EN 10270-1	2099.766	186.8	503.2	60.7 \| 87.3 \| 60.5 \| 34.4
D-399	88	600	4.405	EN 10270-1	1757.757	201	399	60.6 \| 78.7 \| 66.7 \| 36.3
D-414D-26	120	460	4.655	EN 10270-1	1473.124	143.51	316.49	58.2 \| 78.4 \| 57.7 \| 38.4
D-392	108	390	4.909	EN 10270-1	1390.586	106.74	283.26	55.7 \| 74.4 \| 52.4 \| 40.5
D-478	125	800	5.442	EN 10270-1	2837.224	278.64	521.36	66.6 \| 87.8 \| 67.2 \| 44.9
D-424	110	730	5.507	EN 10270-1	2636.36	251.25	478.75	68.5 \| 91.7 \| 68.3 \| 45.4
D-414H	100	531	5.722	EN 10270-1	1935.088	192.84	338.16	64.8 \| 81.7 \| 65.6 \| 47.2
D-476	125	550	8.054	EN 10270-1	2855.944	195.4	354.6	77.1 \| 87.3 \| 77.7 \| 66.4
D-423	110	500	8.15	EN 10270-1	2638.563	176.25	323.75	74.8 \| 86.0 \| 71.3 \| 67.2
D-524	135	620	9.082	EN 10270-1	3699.531	212.64	407.36	84.3 \| 91.3 \| 86.8 \| 74.9
D-429	90	540	10.755	EN 10270-1	3213.064	241.26	298.74	81.6 \| 81.9 \| 74.2 \| 88.7
D-488	100	620	11.437	EN 10270-1	4050.469	265.83	354.17	92.2 \| 91.7 \| 90.6 \| 94.3
D-536	110	670	12.132	EN 10270-1	4605.304	290.41	379.59	100.0 \| 100.0 \| 100.0 \| 100.0
D-534	110	460	17.956	EN 10270-1	4596.568	204.01	255.99	80.2 \| 89.6 \| 83.6 \| 67.6

Number of similar metal springs: 15

Customs tariff number: 73202081; Compression spring D-536

Country of origin: DE, German; Compression spring D-536
