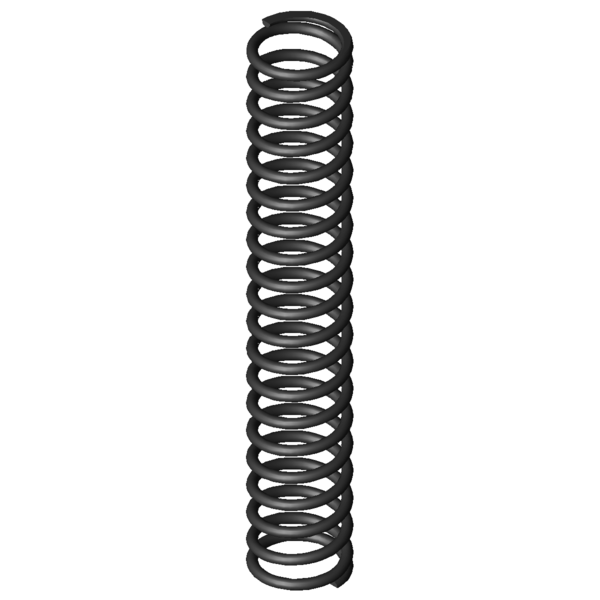

Home » Products » Compression springs » d-429 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm Scaled prices - Compression spring D-429 Quantity Single price [EUR] 1 39.1400 EUR 2 31.1800 EUR 3 30.5900 EUR 7 27.6100 EUR 17 25.4600 EUR 37 24.0000 EUR 75 23.1400 EUR 125 23.0080 EUR 175 22.7957 EUR 250 22.4802 EUR 350 22.0368 EUR Compression spring Buy Product image Compression spring D-429 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-429 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 10 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 90 mm Outer coil diameter Dd 68 mm maximum diameter of mandrel Dh 93 mm minimum diameter of bush L0 540 mm unstressed spring length Lk 381.16 mm buckling length Fn 3213.064 N maximum force in static use Ln 241.26 mm Minimum length in static use sn 298.74 mm Maximum spring deflection in static use Fndyn 2946.975 N maximum force in dynamic use Lndyn 266 mm Minimum length in dynamic use shdyn 107.97 mm Maximum stroke in dynamic use S 28.649 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 10.755 N/mm Spring rate Weight 3198.6303 g weight of one spring Fntol 139 N (+/-) tolerance of maximum force in static use Fndtol 136 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 8.51 mm (+/-) tolerance of unstressed spring length Price group BE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm Datasheet download pdf file Metal spring characteristic Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm Metal spring characteristic download pdf file CAD data Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm force-path-calculation Compression spring D-429 Inquiry formular Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm Inquiry formular Compression spring D-429 Similar compression springs to Compression spring D-429 Spring steel Ø 10 x 80 x 540 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-429 EN 10270-1 10 90 540 3213.064 241.26 298.74 18.5 10.755 100.0 | 100.0 | 100.0 | 100.0 VD-429 1.4310 10 90 540 2759.686 241.26 298.74 18.5 9.238 45.1 | 78.0 | 41.6 | 15.8 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364U 105 494 1.757 EN 10270-1 691.406 100.47 393.53 48.4 | 80.1 | 48.7 | 16.3 D-389E-16 105 500 2.079 EN 10270-1 756.827 135.98 364.02 51.6 | 82.8 | 52.8 | 19.3 D-367A 86.3 365 2.322 EN 10270-1 553.225 126.73 238.27 48.5 | 75.5 | 48.5 | 21.6 D-368 86.3 490 2.508 EN 10270-1 932.126 118.27 371.73 53.7 | 83.2 | 54.7 | 23.3 D-374A 69.3 500 2.853 EN 10270-1 884.881 189.79 310.21 55.3 | 77.5 | 61.9 | 26.5 D-393A 108 630 3.091 EN 10270-1 1452.405 160.11 469.89 55.4 | 83.0 | 54.4 | 28.7 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 58.1 | 86.0 | 57.4 | 31.0 D-374 69.3 500 3.469 EN 10270-1 1185.488 158.29 341.71 57.3 | 77.5 | 62.2 | 32.3 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 57.2 | 80.4 | 58.3 | 33.0 D-399 88 600 4.405 EN 10270-1 1757.757 201 399 65.0 | 89.3 | 64.8 | 41.0 D-394D 98 400 4.579 EN 10270-1 1167 145 255 61.8 | 82.0 | 60.8 | 42.6 D-414H 100 531 5.722 EN 10270-1 1935.088 192.84 338.16 73.4 | 92.8 | 74.3 | 53.2 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 72.5 | 84.6 | 72.3 | 60.6 D-423 110 500 8.15 EN 10270-1 2638.563 176.25 323.75 84.8 | 91.5 | 87.2 | 75.8 D-429 90 540 10.755 EN 10270-1 3213.064 241.26 298.74 100.0 | 100.0 | 100.0 | 100.0 D-488 100 620 11.437 EN 10270-1 4050.469 265.83 354.17 88.4 | 89.3 | 81.8 | 94.0 D-428 90 370 15.918 EN 10270-1 3191.553 169.5 200.5 80.1 | 89.5 | 83.2 | 67.6 D-486 100 420 16.926 EN 10270-1 3947.997 186.75 233.25 76.5 | 86.2 | 79.7 | 63.5 D-534 110 460 17.956 EN 10270-1 4596.568 204.01 255.99 73.7 | 83.4 | 77.8 | 59.9 D-498 75 440 30.756 EN 10270-1 5628.307 257 183 59.8 | 85.2 | 59.2 | 35.0 D-546 80 460 36.316 EN 10270-1 6577.023 278.89 181.11 56.7 | 85.8 | 54.7 | 29.6 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-429 Country of origin: DE, German; Compression spring D-429 Product image - Compression springs D-429 QR-Code: Compression spring D-429
