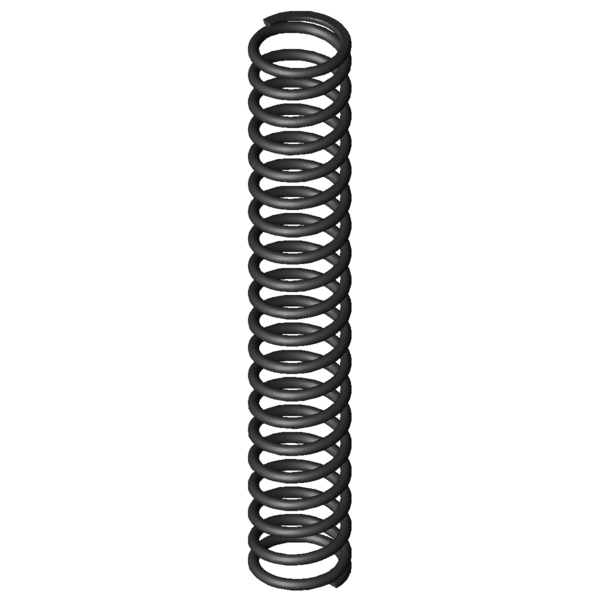

Home » Products » Compression springs » d-488 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm Scaled prices - Compression spring D-488 Quantity Single price [EUR] 1 44.4600 EUR 2 35.8800 EUR 3 35.4200 EUR 7 32.5900 EUR 17 30.2500 EUR 37 27.4500 EUR 75 26.9000 EUR 125 26.8590 EUR 175 26.7340 EUR 250 26.6504 EUR 350 26.2023 EUR Compression spring Buy Product image Compression spring D-488 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-488 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 11 mm Wire diameter Di mm Inner coil diameter D 89 mm Mean coil diameter De 100 mm Outer coil diameter Dd mm maximum diameter of mandrel Dh mm minimum diameter of bush L0 620 mm unstressed spring length Lk 451 mm buckling length Fn 4050.469 N maximum force in static use Ln 265.83 mm Minimum length in static use sn 354.17 mm Maximum spring deflection in static use Fndyn N maximum force in dynamic use Lndyn mm Minimum length in dynamic use shdyn mm Maximum stroke in dynamic use S 32.919 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 11.437 N/mm Spring rate Weight 4305.7562 g weight of one spring Fntol 166 N (+/-) tolerance of maximum force in static use Fndtol N (+/-) tolerance of maximum dynamic force Detol 1.5 mm (+/-) tolerances of outer coil diameter L0tol 9.26 mm (+/-) tolerance of unstressed spring length Price group BF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm Datasheet download pdf file Metal spring characteristic Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm Metal spring characteristic download pdf file CAD data Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm force-path-calculation Compression spring D-488 Inquiry formular Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm Inquiry formular Compression spring D-488 Similar compression springs to Compression spring D-488 Spring steel Ø 11 x 89 x 620 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-488 EN 10270-1 11 100 620 4050.469 265.83 354.17 18.5 11.437 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-364U 105 494 1.757 EN 10270-1 691.406 100.47 393.53 48.8 | 77.4 | 53.5 | 15.4 D-389D 120 562 1.784 EN 10270-1 800.955 113.14 448.86 48.0 | 79.2 | 49.3 | 15.6 D-389E-16 105 500 2.079 EN 10270-1 756.827 135.98 364.02 52.0 | 79.8 | 58.0 | 18.2 D-368 86.3 490 2.508 EN 10270-1 932.126 118.27 371.73 51.8 | 74.2 | 59.1 | 21.9 D-393A 108 630 3.091 EN 10270-1 1452.405 160.11 469.89 56.9 | 87.9 | 55.6 | 27.0 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 58.1 | 85.8 | 59.4 | 29.2 D-399 88 600 4.405 EN 10270-1 1757.757 201 399 63.5 | 85.8 | 66.1 | 38.5 D-394D 98 400 4.579 EN 10270-1 1167 145 255 56.3 | 78.4 | 50.4 | 40.0 D-424 110 730 5.507 EN 10270-1 2636.36 251.25 478.75 68.9 | 88.9 | 69.5 | 48.2 D-414H 100 531 5.722 EN 10270-1 1935.088 192.84 338.16 70.3 | 89.2 | 71.6 | 50.0 D-476 125 550 8.054 EN 10270-1 2855.944 195.4 354.6 81.7 | 89.6 | 85.2 | 70.4 D-423 110 500 8.15 EN 10270-1 2638.563 176.25 323.75 79.0 | 87.5 | 78.3 | 71.3 D-524 135 620 9.082 EN 10270-1 3699.531 212.64 407.36 85.7 | 88.6 | 89.1 | 79.4 D-429 90 540 10.755 EN 10270-1 3213.064 241.26 298.74 88.4 | 89.3 | 81.8 | 94.0 D-488 100 620 11.437 EN 10270-1 4050.469 265.83 354.17 100.0 | 100.0 | 100.0 | 100.0 D-536 110 670 12.132 EN 10270-1 4605.304 290.41 379.59 92.2 | 91.7 | 90.6 | 94.3 D-486 100 420 16.926 EN 10270-1 3947.997 186.75 233.25 79.5 | 89.2 | 81.7 | 67.6 D-534 110 460 17.956 EN 10270-1 4596.568 204.01 255.99 76.5 | 85.6 | 80.2 | 63.7 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-488 Country of origin: DE, German; Compression spring D-488 Product image - Compression springs D-488 QR-Code: Compression spring D-488
