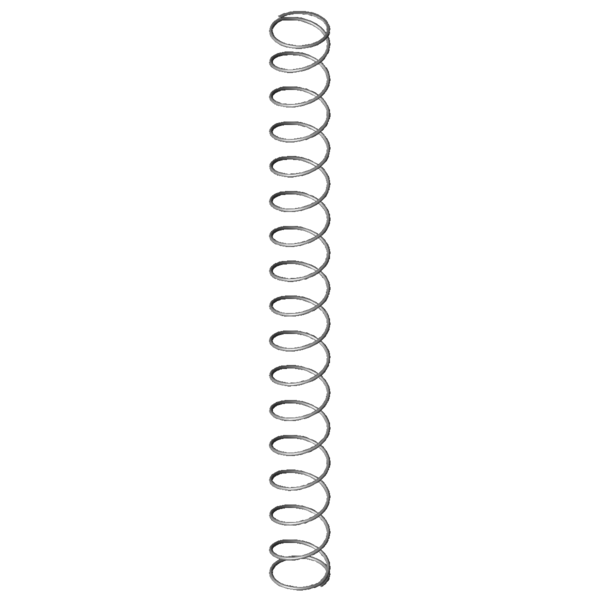

Home » Products » Compression springs » vd-179j Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm Scaled prices - Compression spring VD-179J Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring VD-179J Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-179J Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.1 mm Wire diameter Di mm Inner coil diameter D 17.9 mm Mean coil diameter De 19 mm Outer coil diameter Dd 16.1 mm maximum diameter of mandrel Dh 20.7 mm minimum diameter of bush L0 208 mm unstressed spring length Lk 189.69 mm buckling length Fn 25.979 N maximum force in static use Ln 27.73 mm Minimum length in static use sn 180.27 mm Maximum spring deflection in static use Fndyn 24.996 N maximum force in dynamic use Lndyn 34.55 mm Minimum length in dynamic use shdyn 51.51 mm Maximum stroke in dynamic use S 13.348 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.144 N/mm Spring rate Weight 7.3926 g weight of one spring Fntol 1.81 N (+/-) tolerance of maximum force in static use Fndtol 1.8 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 9.88 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm Metal spring characteristic download pdf file CAD data Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm force-path-calculation Compression spring VD-179J Inquiry formular Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm Inquiry formular Compression spring VD-179J Similar compression springs to Compression spring VD-179J Stainless steel Ø 1.1 x 17.9 x 208 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-179J 1.4310 1.1 19 208 25.979 27.73 180.27 15.5 0.144 100.0 | 100.0 | 100.0 | 100.0 D-179J EN 10270-1 1.1 19 208 30.247 27.73 180.27 15.5 0.168 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145D-04 18.5 157 0.121 1.4310 16.199 23.05 133.95 80.1 | 87.9 | 68.3 | 83.9 VD-145H 17 186 0.138 1.4310 22.189 25 161 91.0 | 89.9 | 87.4 | 95.6 VD-179J 19 208 0.144 1.4310 25.979 27.73 180.27 100.0 | 100.0 | 100.0 | 100.0 VD-180M 20 209 0.176 1.4310 31.586 29.71 179.29 89.3 | 95.4 | 90.9 | 81.8 VD-185A 17.25 205 0.232 1.4310 38.165 40.35 164.65 78.1 | 92.4 | 79.7 | 62.2 VD-179H 19 129 0.235 1.4310 26.135 17.85 111.15 76.4 | 87.3 | 80.5 | 61.3 VD-207JU 22 162 0.278 1.4310 33.547 41.3 120.7 67.7 | 79.2 | 72.2 | 51.9 VD-185 17.25 205 0.282 1.4310 44.796 46.1 158.9 72.2 | 92.4 | 73.1 | 51.1 VD-212A 21.6 240 0.319 1.4310 60.136 51.24 188.76 65.2 | 81.1 | 69.4 | 45.2 VD-212 21.6 240 0.387 1.4310 71.176 56.3 183.7 61.9 | 81.1 | 67.3 | 37.2 VD-211A 21.6 165 0.387 1.4310 47.387 42.7 122.3 59.1 | 78.7 | 61.3 | 37.2 VD-206D-05 17.4 181 0.444 1.4310 61.172 43.1 137.9 59.2 | 85.7 | 59.5 | 32.5 VD-207J-80 20 152 0.518 1.4310 63.279 29.9 122.1 54.2 | 80.5 | 54.4 | 27.8 VD-211 21.6 165 0.573 1.4310 70.992 41.2 123.8 52.1 | 78.7 | 52.6 | 25.1 VD-217A 17.6 165 0.622 1.4310 72.676 48.2 116.8 51.2 | 80.2 | 50.3 | 23.2 VD-239A-06 25 205.5 0.622 1.4310 95.448 52.04 153.46 52.0 | 76.6 | 56.2 | 23.2 VD-217 17.6 165 0.757 1.4310 88.805 47.65 117.35 48.8 | 80.2 | 47.2 | 19.0 VD-244A 22 200 0.778 1.4310 108.694 60.25 139.75 49.5 | 79.2 | 50.7 | 18.5 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-179J Country of origin: DE, German; Compression spring VD-179J Product image - Compression springs VD-179J QR-Code: Compression spring VD-179J
