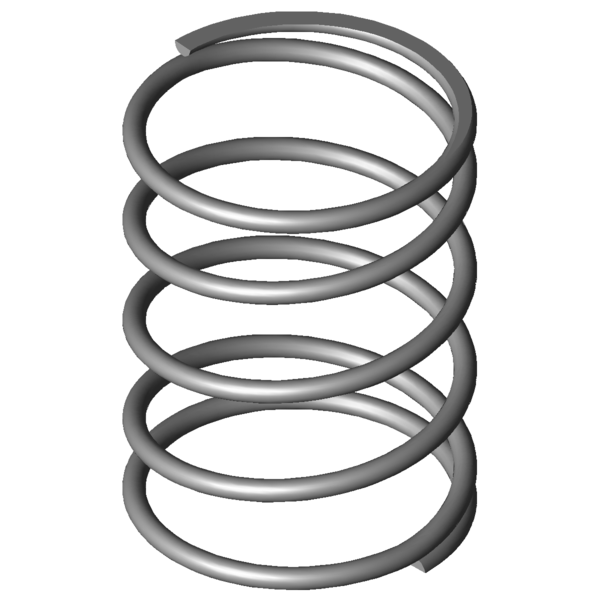

Home » Products » Compression springs » vd-339j-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm Scaled prices - Compression spring VD-339J-10 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339J-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 63.5 mm Mean coil diameter De 68 mm Outer coil diameter Dd 57.1 mm maximum diameter of mandrel Dh 70.7 mm minimum diameter of bush L0 91 mm unstressed spring length Lk mm buckling length Fn 240.109 N maximum force in static use Ln 31.03 mm Minimum length in static use sn 59.97 mm Maximum spring deflection in static use Fndyn 227.534 N maximum force in dynamic use Lndyn 34.17 mm Minimum length in dynamic use shdyn 37.09 mm Maximum stroke in dynamic use S 24.714 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 4.004 N/mm Spring rate Weight 137.9373 g weight of one spring Fntol 26.25 N (+/-) tolerance of maximum force in static use Fndtol 26.04 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 4.73 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm force-path-calculation Compression spring VD-339J-10 Inquiry formular Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm Inquiry formular Compression spring VD-339J-10 Similar compression springs to Compression spring VD-339J-10 Stainless steel Ø 4.5 x 63.5 x 91 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-10 1.4310 4.5 68 91 240.109 31.03 59.97 3.5 4.004 100.0 | 100.0 | 100.0 | 100.0 D-339J-10 EN 10270-1 4.5 68 91 279.555 31.03 59.97 3.5 4.662 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339J-10 68 91 4.004 1.4310 240.109 31.03 59.97 100.0 | 100.0 | 100.0 | 100.0 VD-313W 54 90 5.12 1.4310 324.192 26.68 63.32 83.9 | 89.1 | 84.4 | 78.2 VD-314 54 99 5.12 1.4310 370.272 26.68 72.32 79.6 | 86.7 | 73.9 | 78.2 VD-364R-31 69 88 6.139 1.4310 227.149 51 37 78.4 | 91.9 | 78.1 | 65.2 VD-339J-21 58 78 6.695 1.4310 323.352 29.7 48.3 75.8 | 90.3 | 77.4 | 59.8 VD-345A 55 100 7.955 1.4310 442.472 44.38 55.63 70.4 | 87.3 | 73.5 | 50.3 VD-364E-10 70 95 8.525 1.4310 501.29 36.2 58.8 70.5 | 91.6 | 73.0 | 47.0 VD-349A-10 50 95 8.573 1.4310 362.204 52.75 42.25 67.2 | 86.4 | 68.4 | 46.7 VD-364E-02 80 80 8.606 1.4310 447.088 28.05 51.95 67.2 | 84.9 | 70.2 | 46.5 VD-364R-42 54 92 8.929 1.4310 206.319 68.89 23.11 64.4 | 86.2 | 62.2 | 44.8 VD-364R-60 77 102 9.053 1.4310 565.685 39.51 62.49 65.9 | 84.2 | 69.2 | 44.2 VD-344A-12 60 80 9.391 1.4310 446.563 32.45 47.55 66.0 | 88.7 | 66.5 | 42.6 VD-345 55 85 12.5 1.4310 664.063 31.88 53.13 60.8 | 88.1 | 62.4 | 32.0 VD-364F 60 85.4 14.132 1.4310 712.104 35.01 50.39 58.4 | 88.0 | 58.9 | 28.3 VD-370 69.3 105 15.75 1.4310 1021.191 40.16 64.84 56.3 | 85.4 | 58.0 | 25.4 VD-364J-22 48 92 18.964 1.4310 853.379 47 45 52.2 | 83.8 | 51.6 | 21.1 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-339J-10 Country of origin: DE, German; Compression spring VD-339J-10 Product image - Compression springs VD-339J-10 QR-Code: Compression spring VD-339J-10
