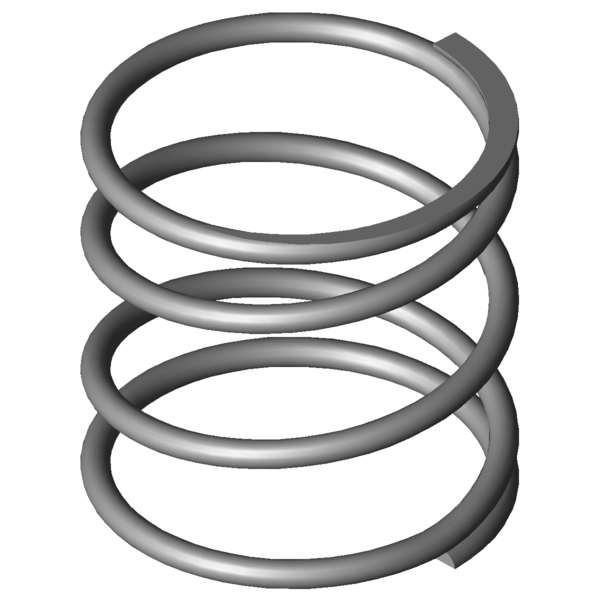

Home » Products » Compression springs » vd-364e-02 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm Scaled prices - Compression spring VD-364E-02 Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 4.4300 EUR 37 3.8300 EUR 75 3.7600 EUR 125 3.7600 EUR 175 3.7600 EUR 250 3.7600 EUR 350 3.7600 EUR Compression spring Buy Product image Compression spring VD-364E-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-364E-02 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 74.5 mm Mean coil diameter De 80 mm Outer coil diameter Dd 67.6 mm maximum diameter of mandrel Dh 81.5 mm minimum diameter of bush L0 80 mm unstressed spring length Lk mm buckling length Fn 447.088 N maximum force in static use Ln 28.05 mm Minimum length in static use sn 51.95 mm Maximum spring deflection in static use Fndyn 426.864 N maximum force in dynamic use Lndyn 30.4 mm Minimum length in dynamic use shdyn 21 mm Maximum stroke in dynamic use S 33.111 mm pitch of spring n 2.25 pc. number of active coils nt pc. total number of coils R 8.606 N/mm Spring rate Weight 186.806 g weight of one spring Fntol 43.51 N (+/-) tolerance of maximum force in static use Fndtol 43.3 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 4.2 mm (+/-) tolerance of unstressed spring length Price group #AN - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm Metal spring characteristic download pdf file CAD data Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm force-path-calculation Compression spring VD-364E-02 Inquiry formular Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm Inquiry formular Compression spring VD-364E-02 Similar compression springs to Compression spring VD-364E-02 Stainless steel Ø 5.5 x 74.5 x 80 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-364E-02 1.4310 5.5 80 80 447.088 28.05 51.95 2.25 8.606 100.0 | 100.0 | 100.0 | 100.0 D-364E-02 EN 10270-1 5.5 80 80 520.839 28.02 51.98 2.25 10.02 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-339J-10 68 91 4.004 1.4310 240.109 31.03 59.97 67.2 | 84.9 | 70.2 | 46.5 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 65.8 | 75.2 | 73.6 | 48.8 VD-364R-56 90 95 5.466 1.4310 293.55 41.3 53.7 77.7 | 88.3 | 81.2 | 63.5 VD-364R-31 69 88 6.139 1.4310 227.149 51 37 74.7 | 91.8 | 61.0 | 71.3 VD-339J-21 58 78 6.695 1.4310 323.352 29.7 48.3 81.5 | 83.9 | 82.6 | 77.8 VD-364W 86.3 102 7.692 1.4310 460.064 42.19 59.81 89.2 | 86.1 | 92.0 | 89.4 VD-364E-10 70 95 8.525 1.4310 501.29 36.2 58.8 92.8 | 90.6 | 88.8 | 99.1 VD-364E-02 80 80 8.606 1.4310 447.088 28.05 51.95 100.0 | 100.0 | 100.0 | 100.0 VD-364R-60 77 102 9.053 1.4310 565.685 39.51 62.49 88.3 | 88.8 | 81.1 | 95.1 VD-344A-12 60 80 9.391 1.4310 446.563 32.45 47.55 92.0 | 88.6 | 95.7 | 91.6 VD-364R-30 69 56 9.648 1.4310 187.857 36.53 19.47 71.3 | 84.8 | 39.7 | 89.2 VD-369C 78.3 110 10.551 1.4310 725.927 41.2 68.8 78.7 | 86.0 | 68.5 | 81.6 VD-339K 50 74.4 10.883 1.4310 496.923 28.74 45.66 82.4 | 79.1 | 88.9 | 79.1 VD-345 55 85 12.5 1.4310 664.063 31.88 53.13 78.7 | 84.6 | 82.6 | 68.9 VD-364E-08 70 65 13.262 1.4310 501.29 27.2 37.8 78.5 | 89.6 | 81.0 | 64.9 VD-364F 60 85.4 14.132 1.4310 712.104 35.01 50.39 76.8 | 89.6 | 79.9 | 60.9 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 70.8 | 82.4 | 74.5 | 55.4 VD-369B 78.3 75 16.413 1.4310 722.176 31 44 72.9 | 93.0 | 73.3 | 52.4 VD-364J-02 56 77 17.763 1.4310 752.264 34.65 42.35 69.2 | 88.8 | 70.5 | 48.4 VD-389F 75 102 19.09 1.4310 1099.239 44.42 57.58 64.7 | 83.6 | 65.4 | 45.1 VD-364R-70 61 85 19.474 1.4310 919.177 37.8 47.2 67.1 | 87.3 | 69.7 | 44.2 VD-399A 81 98 26.323 1.4310 1255.67 50.3 47.7 59.8 | 83.0 | 63.7 | 32.7 VD-375 56.3 80 31.506 1.4310 1293.686 38.94 41.06 56.7 | 85.9 | 56.8 | 27.3 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-364E-02 Country of origin: DE, German; Compression spring VD-364E-02 Product image - Compression springs VD-364E-02 QR-Code: Compression spring VD-364E-02
