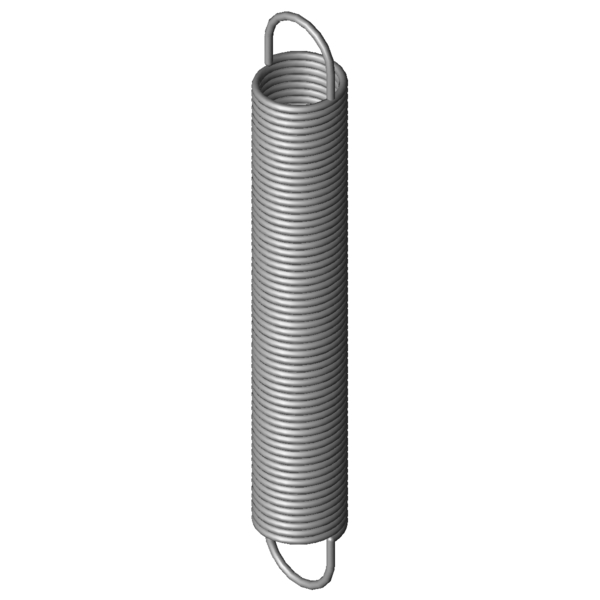

Home » Products » Extension Springs » rz-168ci Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° Scaled prices - Extension Spring RZ-168CI Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 3.7100 EUR 37 3.7100 EUR 75 3.7100 EUR 125 3.7100 EUR 175 3.7100 EUR 250 3.7100 EUR 350 3.7100 EUR Extension Spring Buy Product image Extension Spring RZ-168CI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-168CI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 247 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 200 mm length of unstressed spring body Ln 743.34 mm maximum spring length, inner loop to inner loop sn 496.34 mm Maximum spring deflection Fn 240.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.5 mm distance of inner edge of loop from the spring body R 0.455 N/mm Spring rate F0 15 N initial tension Fntol 12.81 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 51 degree (+/-) tolerance of loop position Weight 404.3605 g weight of one spring Price group ###AD - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° force-path-calculation Extension Spring RZ-168CI Inquiry formular Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° Inquiry formular Extension Spring RZ-168CI Similar extension springs to Extension Spring RZ-168CI Stainless steel Ø 3.2 x 35.2 x 247 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-168CI 1.4310 3.2 35.2 247 240.9 743.34 496.34 0.455 100.0 | 100.0 | 100.0 | 100.0 Z-168CI EN 10270-1 3.2 35.2 247 290.5 759.78 512.78 0.53 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-150AI 34.5 184 0.195 1.4310 123.5 777.17 593.17 64.6 | 83.5 | 67.5 | 42.9 RZ-162U-07I 40 266 0.201 1.4310 176.9 1099.28 833.28 67.3 | 91.5 | 66.5 | 43.7 RZ-162E-14I 38 223 0.207 1.4310 158 952.55 729.55 67.2 | 90.1 | 66.8 | 44.6 RZ-162U-06I 40 242 0.228 1.4310 176.9 979.37 737.37 71.0 | 93.2 | 70.4 | 49.4 RZ-162U-05I 40 218 0.262 1.4310 176.9 859.45 641.45 74.1 | 90.0 | 75.4 | 56.8 RZ-165AI 43.2 234 0.268 1.4310 197.7 936.56 702.56 75.5 | 92.1 | 76.4 | 58.0 RZ-153EI 27.5 234 0.282 1.4310 153.7 739.86 505.86 75.7 | 83.7 | 81.0 | 62.6 RZ-168EI 35.2 298 0.361 1.4310 240.9 923.46 625.46 87.8 | 94.3 | 89.7 | 79.4 RZ-168DI 35.2 273 0.403 1.4310 240.9 833.9 560.9 93.2 | 96.8 | 94.2 | 88.5 RZ-162U-26I 32 254 0.418 1.4310 219.4 739.52 485.52 93.8 | 94.0 | 94.4 | 93.1 RZ-162KI 30 210 0.449 1.4310 193.3 609.35 399.35 88.7 | 85.9 | 80.3 | 99.7 RZ-168CI 35.2 247 0.455 1.4310 240.9 743.34 496.34 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-25I 32 230 0.473 1.4310 219.4 659.63 429.63 92.2 | 92.6 | 88.8 | 95.0 RZ-177KI 40 272 0.512 1.4310 298 823.52 551.52 88.2 | 89.2 | 85.4 | 89.8 RZ-168BI 35.2 222 0.523 1.4310 240.9 653.77 431.77 92.4 | 96.6 | 93.5 | 87.0 RZ-162U-24I 32 206 0.543 1.4310 219.4 579.75 373.75 85.1 | 89.4 | 83.2 | 82.7 RZ-168AI 35.2 199 0.602 1.4310 240.9 574.28 375.28 85.6 | 93.5 | 87.8 | 75.6 RZ-168I 35.2 177 0.709 1.4310 240.9 495.78 318.78 79.0 | 90.6 | 82.1 | 64.2 RZ-181I 44 249 0.753 1.4310 366.5 709.95 460.95 75.6 | 86.4 | 79.3 | 61.0 RZ-171DI 28.2 262 0.845 1.4310 297.5 591.88 329.88 73.0 | 91.5 | 73.7 | 53.8 RZ-171CI 28.2 236 0.955 1.4310 297.5 527.99 291.99 69.8 | 91.9 | 69.9 | 47.6 RZ-191I 36 296 1.112 1.4310 443.6 670.42 374.42 64.3 | 87.1 | 64.9 | 41.0 RZ-177K-04I 32 230 1.246 1.4310 368.5 503.2 273.2 62.4 | 91.0 | 60.2 | 36.0 RZ-190I 36 264 1.278 1.4310 443.6 589.71 325.71 62.0 | 90.4 | 60.0 | 35.6 RZ-177K-03I 32 205 1.442 1.4310 368.5 441.06 236.06 58.4 | 87.6 | 56.5 | 31.1 RZ-189I 36 236 1.47 1.4310 443.6 519.1 283.1 59.3 | 91.1 | 55.7 | 31.0 RZ-188I 36 212 1.688 1.4310 443.6 458.57 246.57 55.6 | 87.9 | 52.0 | 27.0 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring RZ-168CI Country of origin: DE, German; Extension Spring RZ-168CI Product image - Extension Springs RZ-168CI QR-Code: Extension Spring RZ-168CI
