Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

Scaled prices - Extension Spring RZ-177KI

Quantity Single price [EUR]
1 15.4300 EUR
2 12.3000 EUR
3 8.1000 EUR
7 6.2800 EUR
17 6.2800 EUR
37 6.2800 EUR
75 6.2800 EUR
125 6.2800 EUR
175 6.2800 EUR
250 6.2800 EUR
350 6.2800 EUR

Extension Spring Buy

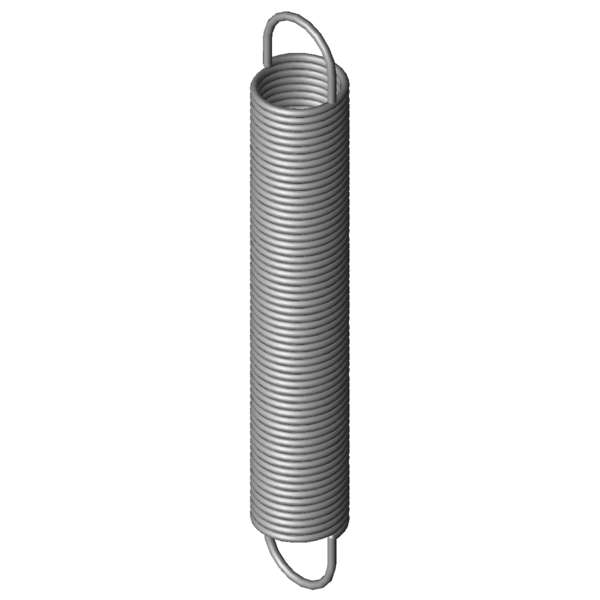

Product image Extension Spring RZ-177KI
Product image Extension Spring RZ-177KI
Quantity: Add to shopping cart

Technical Data - Extension Spring RZ-177KI

Formula symbols Value Unit Description
Material 1.4310 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 3.6 mm Wire diameter
D mm mean coil diameter
De 40 mm outer coil diameter
Dh 46 mm minimum bush diameter
L0 272 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 217.8 mm length of unstressed spring body
Ln 823.52 mm maximum spring length, inner loop to inner loop
sn 551.52 mm Maximum spring deflection
Fn 298 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 27.1 mm distance of inner edge of loop from the spring body
R 0.512 N/mm Spring rate
F0 15.6 N initial tension
Fntol 15.66 N (+/-) tolerance of maximum spring force
L0tol 4 mm (+/-) tolerance of unstressed length
Detol 0.6 mm (+/-) tolerance of outer coil diameter
Oesttol 50 degree (+/-) tolerance of loop position
Weight 563.7295 g weight of one spring
Price group ###AO - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

force-path-calculation Extension Spring RZ-177KI

Inquiry formular Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

Inquiry formular Extension Spring RZ-177KI

Similar extension springs to Extension Spring RZ-177KI Stainless steel Ø 3.6 x 40 x 272 mm / 180°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
RZ-177KI 1.4310 3.6 40 272 298 823.52 551.52 0.512 100.0 | 100.0 | 100.0 | 100.0
Z-177KI EN 10270-1 3.6 40 272 357.1 838.06 566.06 0.596 92.0 | 100.0 | 90.4 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
RZ-162U-07I 40 266 0.201 1.4310 176.9 1099.28 833.28 65.3 | 93.7 | 62.8 | 39.3
RZ-162E-14I 38 223 0.207 1.4310 158 952.55 729.55 63.1 | 84.9 | 64.3 | 40.1
RZ-162U-06I 40 242 0.228 1.4310 176.9 979.37 737.37 67.4 | 90.8 | 67.1 | 44.4
RZ-162U-05I 40 218 0.262 1.4310 176.9 859.45 641.45 70.5 | 87.8 | 72.7 | 51.0
RZ-165AI 43.2 234 0.268 1.4310 197.7 936.56 702.56 71.2 | 89.2 | 72.4 | 52.1
RZ-162U-04I 40 197 0.301 1.4310 176.9 754.52 557.52 74.4 | 85.3 | 79.1 | 58.7
RZ-162U-03I 40 179 0.345 1.4310 176.9 664.58 485.58 74.7 | 83.0 | 73.7 | 67.4
RZ-168EI 35.2 298 0.361 1.4310 240.9 923.46 625.46 81.7 | 89.4 | 84.5 | 71.3
RZ-165I 43.2 190 0.363 1.4310 197.7 708.71 518.71 78.2 | 83.8 | 80.2 | 70.5
RZ-168DI 35.2 273 0.403 1.4310 240.9 833.9 560.9 87.1 | 92.2 | 89.6 | 79.5
RZ-162U-26I 32 254 0.418 1.4310 219.4 739.52 485.52 83.3 | 85.6 | 80.8 | 83.6
RZ-168CI 35.2 247 0.455 1.4310 240.9 743.34 496.34 88.2 | 89.2 | 85.4 | 89.8
RZ-162U-25I 32 230 0.473 1.4310 219.4 659.63 429.63 84.3 | 82.6 | 75.8 | 94.5
RZ-184I 44 341 0.504 1.4310 366.5 1029.95 688.95 88.7 | 86.9 | 80.7 | 98.5
RZ-177KI 40 272 0.512 1.4310 298 823.52 551.52 100.0 | 100.0 | 100.0 | 100.0
RZ-168BI 35.2 222 0.523 1.4310 240.9 653.77 431.77 87.5 | 86.2 | 79.6 | 96.8
RZ-183I 44 309 0.569 1.4310 366.5 918.55 609.55 88.5 | 89.6 | 85.9 | 89.9
RZ-182I 44 277 0.654 1.4310 366.5 807.34 530.34 86.7 | 93.0 | 88.7 | 78.2
RZ-181I 44 249 0.753 1.4310 366.5 709.95 460.95 80.4 | 90.8 | 82.4 | 68.0
RZ-171EI 28.2 287 0.758 1.4310 297.5 654.86 367.86 78.3 | 84.7 | 83.3 | 66.8
RZ-177JI 40 200 0.771 1.4310 298 566.13 366.13 80.3 | 91.2 | 83.2 | 66.4
RZ-171DI 28.2 262 0.845 1.4310 297.5 591.88 329.88 75.0 | 85.2 | 79.8 | 59.9
RZ-180I 44 225 0.864 1.4310 366.5 626.48 401.48 74.7 | 87.9 | 77.1 | 59.2
RZ-192I 36 328 0.984 1.4310 443.6 751.1 423.1 70.4 | 87.6 | 71.9 | 51.5
RZ-191I 36 296 1.112 1.4310 443.6 670.42 374.42 67.9 | 90.6 | 67.5 | 45.6
RZ-177K-04I 32 230 1.246 1.4310 368.5 503.2 273.2 64.5 | 88.2 | 65.2 | 40.1
RZ-190I 36 264 1.278 1.4310 443.6 589.71 325.71 65.0 | 92.4 | 63.1 | 39.7
RZ-189I 36 236 1.47 1.4310 443.6 519.1 283.1 60.9 | 88.9 | 59.3 | 34.5
RZ-188I 36 212 1.688 1.4310 443.6 458.57 246.57 57.3 | 86.0 | 55.9 | 30.0
RZ-199I 29 285 2.331 1.4310 542.5 502.68 217.68 51.6 | 86.0 | 47.2 | 21.7
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring RZ-177KI

Country of origin: DE, German; Extension Spring RZ-177KI
